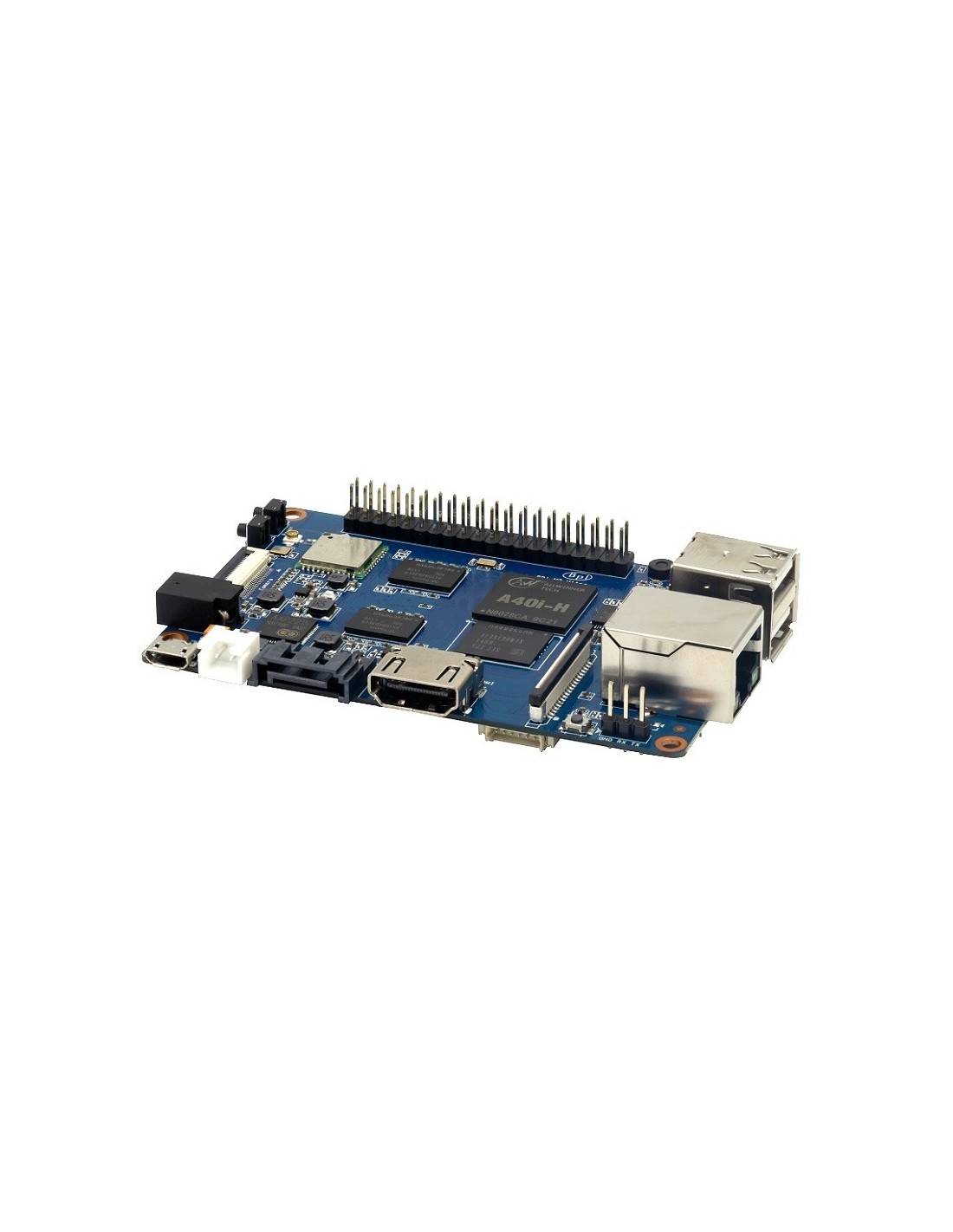

Banana Pi BPI-M2 Ultra
  • -US$6.00

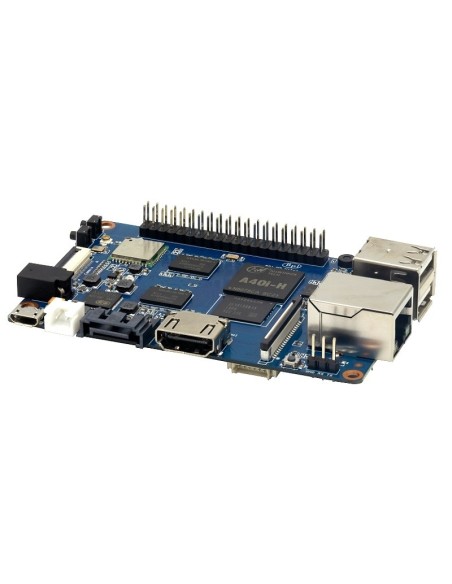

Banana Pi BPI-M2 Ultra

Banana Pi BPI-M2 Ultra

Directly Ships from Canada
US$38.80 US$44.80 -US$6.00

Time left

Banana Pi BPI-M2 Ultra is a quad-core mini single board computer built with Allwinner A40i(option R40/V40) SoC. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M2 Ultra has 2 USB A 2.0 ports, 1 USB OTG port, 1 HDMI port, 1 audio jack, a DC power port, and last but not least, a SATA port.

*Banana Pi Official Distributor

The minimum purchase order quantity for the product is 5.

Ask a Quote

Description

Also being a member of the Banana Pi family, the M2 Ultra is a direct upgrade from the Banana Pi M1/M1+ that support SATA from the SoC. The SATA performance on the A40i is fitting for media related projects such as storage servers. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

Key Features

  • Allwinner A40i/R40/V40 Quad Core ARM Cortex A7 CPU
  • 2GB DDR3 SDRAM
  • 8GB eMMC flahs onboard
  • WiFi & BT onboard
  • SATA Interface
  • 2*USB 2.0
  • MIPI DSI ingerface
  • CSI camera interface

.

Hardware interface


.

Product Details

SoC
Allwinner A40I/R40/V40
CPU
Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
RAM
2 GB DDR3 with 733MHz(shared with GPU)
TF Card
MicroSD (TF) card,8GB eMMC onboard
SATA
suppoort SATA interface
Advanced GPU
dual-core MALI-400 MP2 and runs at 500MHz, capable of 1.1 Gpixel/s throughput. Graphics capabilities are slightly higher than the original Xbox’s level of performance.
Video Characteristics
Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc H.264 decode up to 1080P60,support video encodeing:High-deinition(HD)H.264 video encoder is up to 1080P@45fps
Integrated Camera Module
A CSI input connector Camera:Supports 8-bit YUV422 CMOS sensor interface,Supports CCIR656 protocol for NTSC and PAL,Supports 5M pixel camera sensor ,Supports video capture solution up to 1080p@30fps
LED
Power status Led and RJ45 Led
Audio Output
HDMI, analog audio (via 3.5 mm TRRS jack)
USB Ports
2 USB 2.0 host, 1 USB 2.0 OTG
Display Output
4-lane MIPI DSI display,or RGB panel or LVDS panel,TV-out on HDMI V1.4
GPIO
40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Power
5V/2A with micro USB port
Battery Type
3.7V lithium battery power support
Button
Reset button, Power button, U-boot button
Wi-Fi
WiFi 802.11 b/g/n (AP 6212 module on board)
IR Receiver
onboard IR receiver
Bluetooth
BT4.0
Networking
10/100/1000Mbps Ethernet (Realtek RTL8211E/D)
Dimension
85mmX56mm,same size as raspberry pi 3
Weight
40g
BPI-M2-Ultra
BPI-M2-Ultra
