Banana Pi BPI-M64
  • -US$5.00
Banana Pi BPI-M64

Banana Pi BPI-M64

Directly Ship from Canada
US$41.40 US$46.40 -US$5.00
Time left

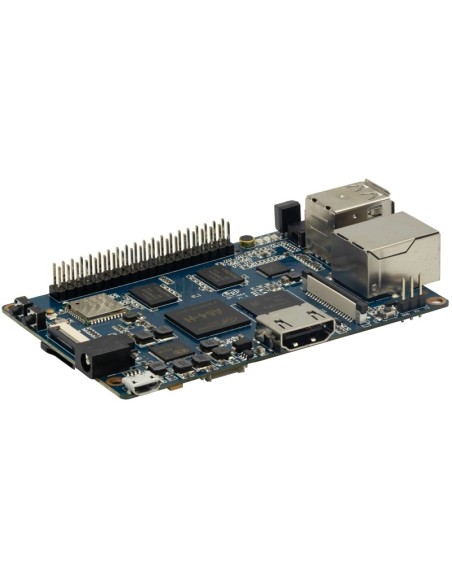

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT.

Description

Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M64 will be reserved for an upcoming board

BPI-M64 is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.



Key Features:

  • Allwinner A64 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor
  • 2 GB DDR3 SDRAM
  • 8G EMMC
  • 10/100/1000Mbps Ethernet
  • WiFi  & BT onboard
  • MIPI LCD interface
  • Camera interface



Hardware interface:

Bananna Pi BPI-F3 interface.jpg

Product Details

CPU
Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU
Memory
2GB LPDDR3 (shared with GPU)
Storage Capacity
MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB
Advanced GPU
Dual core Mali 400 MP2 GPU
LED
Power Status and 8P8C
Audio Output
3.5mm jack and HDMI
USB Ports
USB 2.0 PORT (x2), USB OTG (x1)
Display Output
1080p capable HDMI port and multi-channel audio output (NO H./X.265 capabilities)
GPIO
40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
Switches
Reset, Power and U-boot
Power
5 volt @2A via DC Power and/or Micro USB (OTG)
IR Receiver
IR Receiver
OS Support
Android and Linux
Networking
10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + BT4.0
Video In
A CSI input connector allows for the connection of a designed camera module
Dimension
92x60mm
Weight
48g
BPI-M64
BPI-M64
