In Stock
US$190.00

Harness the efficiency of the Quad-Core Intel Atom E3845 running at 1.9GHz, complemented by diverse storage options and robust Ethernet channels. Designed for durability, it operates in varied temperatures and boasts a fanless cooling mechanism.

Limited Time Promotion:
Free DDR3 4GB SODIMM RAM Included.

The minimum purchase order quantity for the product is 10.

Description

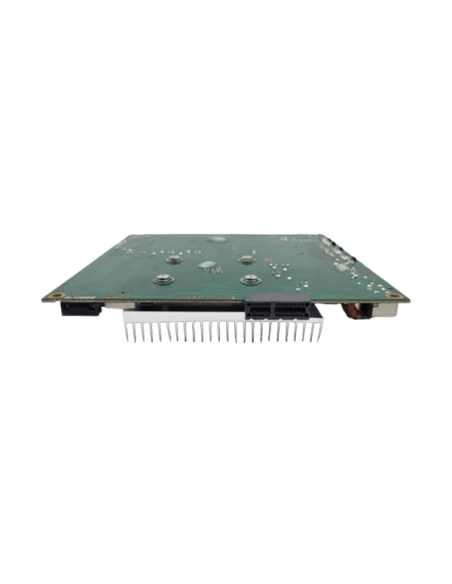

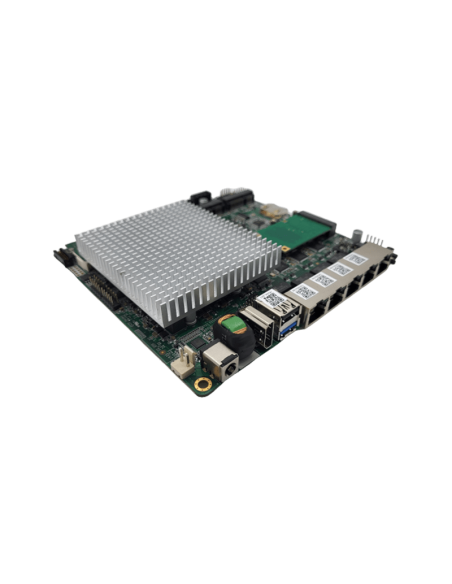

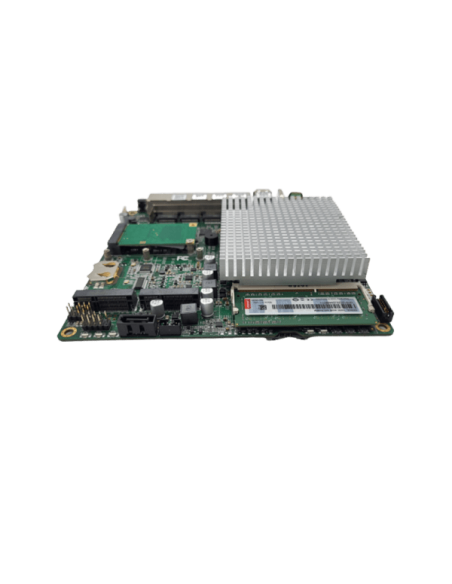

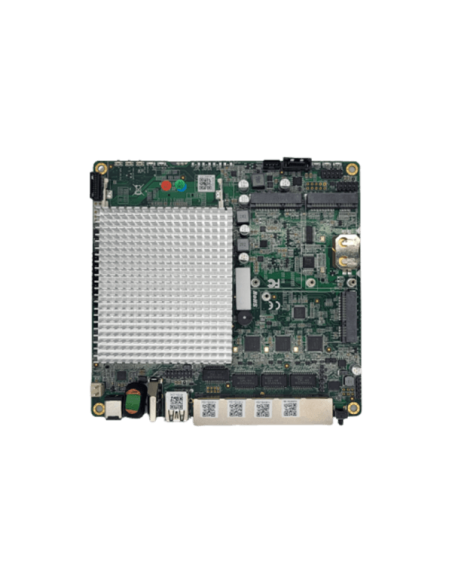

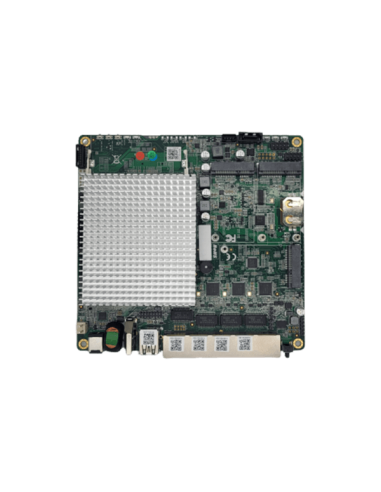

The BFN4 system board is a cutting-edge, versatile piece of technology. Powered by the quad-core Intel Atom E3845 processor, it operates at an impressive frequency of 1.9GHz, ensuring top-notch computing capabilities. The board provides flexible storage options with eMMC4.5, SATA2 3.0Gbps, and mSATA interfaces, adeptly handling a variety of data requirements.

Equipped with four Gigabit Ethernet channels backed by Intel i211AT, the BFN4 board guarantees rapid, secure network connectivity. Its design enables it to function in challenging conditions, with an operating temperature range of 0 to 60 °C and storage temperatures from -40 °C to +85 °C. Its fanless cooling system coupled with efficient power use via a 12V-2A input guarantees a quiet yet power-packed operation.

What sets the BFN4 board apart is its compatibility with a wide range of open-source distributions, including pfSense, OPNSense, Untangle, PROXMOX, Windows, and many others. This, combined with an attractive price point and high-speed, low-power operation, makes it an ideal choice for a myriad of applications. The system has already been successfully implemented in thousands of locations internationally, a testament to its reliable performance and high user satisfaction.

Overall, the BFN4 system board offers an exceptional blend of cost-effectiveness, versatility, and high performance, making it an ideal solution for today’s diverse technological demands.

.

Key Features:

  • Powerful Processor: Quad-Core Intel Atom E3845 @ 1.9GHz.
  • Diverse Storage: eMMC4.5, SATA2 3.0Gbps, and mSATA interfaces.
  • High-speed Connectivity: Four Gigabit Ethernet channels with Intel i211AT.
  • Temperature Resilience: Operates from 0 to 60 °C.
  • Efficient Cooling & Power: Fanless system and 12V-2A power consumption.

Product Details

CPU
Intel Atom E3845 2M Cache (AES-NI)
Base Frequency
1.9GHz
Processor Cores
4 (Quad Core)
UEFI
Yes
RAM
DDR3L 1333MHz SODIMM
Memory Type
SODIMM
Max. RAM Support
8 GB
Memory Sockets
1
SATA
1 x SATA2, 1 x mSATA
EMMC
1 x eMMC4.5
Display Resolution
2560 x 1600 @ 60Hz
HDMI Interface Connector
HDMI (1.4a)
Ethernet Ports
4 x RJ45 Gigabit
Ethernet Controller
Intel i211AT
USB Ports
1 x USB3.0, 3 x USB2.0
Serial ports
1 x RJ45 External, 2 x TTL
GPIO
16CH from SOC, 8CH from SIO
Power Button
1 x Front Pinhole, 1 x Rear Button
Power
12v-2A
Watchdog
Programable 1~255 Sec, 1~255 Mins. Disable
Reset Button
1 x Front Pinhole, 1 x Rear Button
MiniPCI-e slots
1 x Wifi, 1 x Wifi+4G/LTE
Cooling Fan
Fan-less
Storage Humidity
60 °C @ 95% RH (non-condense)
Operating Humidity
40 °C @ 95% RH (non-condense)
Operating Temprature
0°C to 60°C
Storage Temprature
-40°C to + 85 °C
Dimension
6.3 x 6.0 Inches
Weight
405 Grams
BFN4
