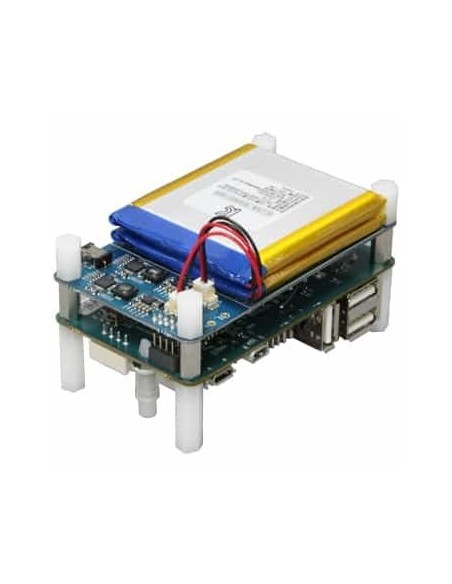

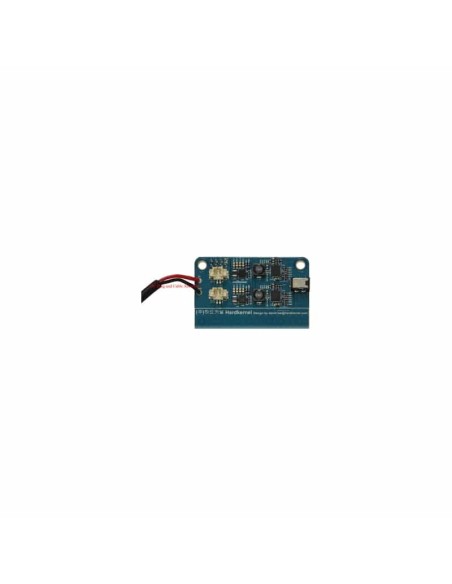

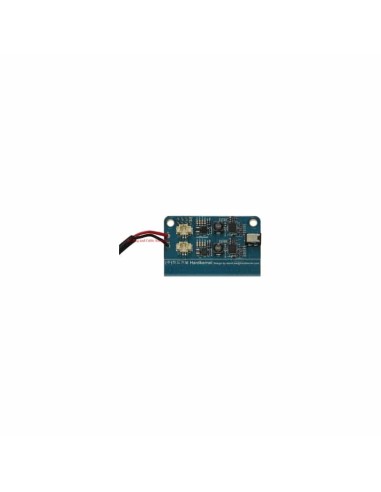

The UPS2 for C1 is designed specifically for the ODROID-C1.
Uninterrupted Power Supply is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails. The on-battery runtime of most uninterruptible power sources is relatively short but sufficient to start a standby power source or properly shut down the ODROID-C1
It is equipped with a rechargeable 3,000mAh Lithium Polymer battery and a charger with a booster IC for 5V output.

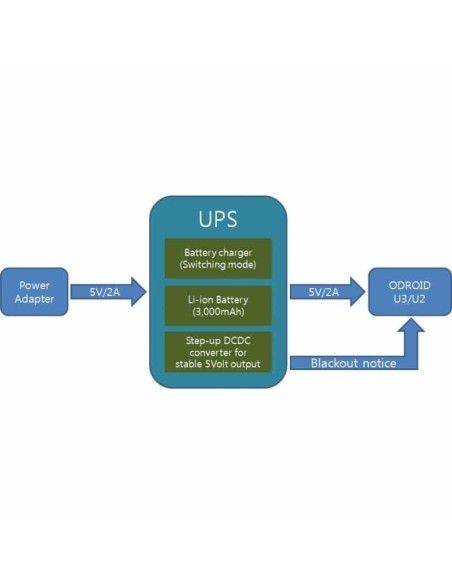

When the AC power source fails, the UPS2 keeps supplying the power to the ODROID-C1 with the battery. There is a digital output pin to notice the battery low-level warning to the ODROID-C1 to trigger the shutdown process. And the AC power source available, UPS2 will supply the power to the ODROID-C1 again automatically.
It will significantly reduce the risk of data loss by sudden power-down.
Full guide, schematics, PCB layout file and detail information is in our WiKi : http://odroid.com/dokuwiki/doku.php?id=en:odroid-ups2
When the AC power source fails, the UPS2 keeps supplying the power to the ODROID-C1 with the battery. There is a digital output pin to notice the battery low-level warning to the ODROID-C1 to trigger the shutdown process. And the AC power source available, UPS2 will supply the power to the ODROID-C1 again automatically.
It will significantly reduce the risk of data loss by sudden power-down.
Full guide, schematics, PCB layout file and detail information is in our WiKi : http://odroid.com/dokuwiki/doku.php?id=en:odroid-ups2
.
- DC Plug Cable soldered UPS2 board
- 3pin jumper wire (11mm)
- 4 x 20mm PCB spacers (Plastic)
- 4 x 11mm PCB spacers (Metal)
- 4 x 10mm PCB spacers (Plastic)
- 5V/2A Power Supply
PACKAGE INCLUDES:

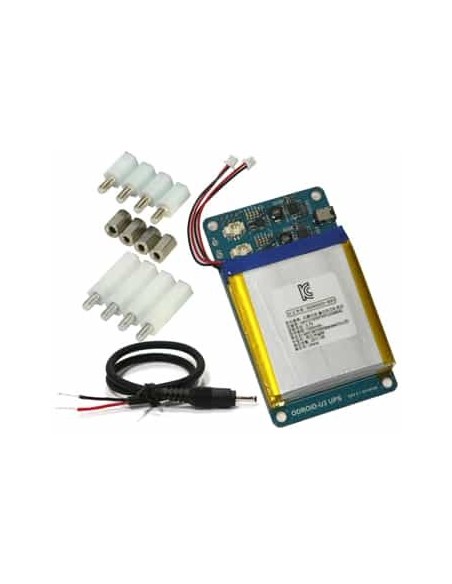

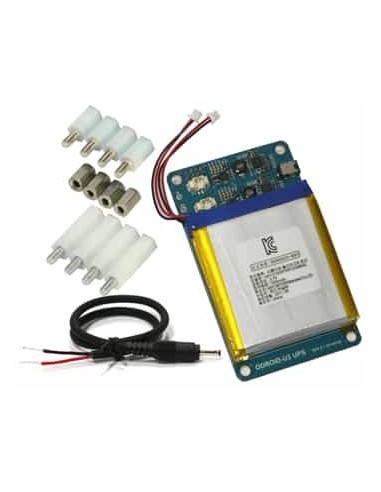

- 3000mAh battery pack- DC Plug Cable soldered UPS2 board
- 3pin jumper wire (11mm)
- 4 x 20mm PCB spacers (Plastic)
- 4 x 11mm PCB spacers (Metal)
- 4 x 10mm PCB spacers (Plastic)
- 5V/2A Power Supply
.
Caution
The DCDC converters have an automatic shutdown/trip function which is activated when the load is very high even very short period.
The battery pack also has very sensitive protection circuit.
So the in-rush current can disconnect all the electrical path.
In this case, you must unplug the battery connectors and DC-plug to reset the protection circuit.
