Ships within 5-7 business days
US$77.00

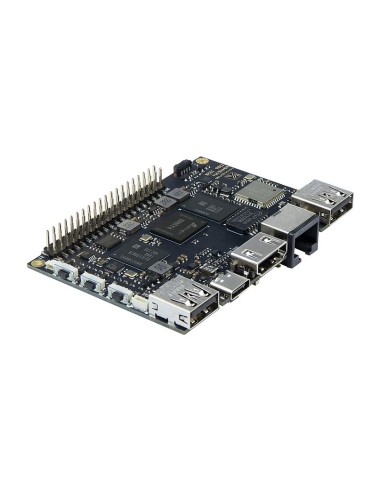

The Khadas VIM1S is a compact and powerful single-board computer designed for a wide range of applications, including home entertainment, gaming, and AI development.

Quantity Unit price You Save
21 US$71.00 US$126.00
51 US$62.00 US$765.00
101 US$57.00 US$2,020.00

Description

The Khadas VIM1S is a versatile and high-performance single-board computer that packs a punch despite its small size. With its Amlogic S905X quad-core processor, 2GB of RAM, and support for 4K video playback, it offers impressive performance and versatility in a small package.

Powered by the Amlogic S905X quad-core processor and 2GB of RAM, the Khadas VIM1S delivers snappy and responsive performance for a wide range of applications. Its compact form factor makes it ideal for use in home entertainment systems, gaming consoles, and AI development projects, and its support for 4K video playback and H.265 codec ensures stunning visuals and smooth playback.

The VIM1S also features a variety of connectivity options, including Gigabit Ethernet, Wi-Fi, Bluetooth, and HDMI, as well as a microSD card slot for expandable storage. With its impressive specifications and broad range of applications, the Khadas VIM1S is a popular choice among developers, hobbyists, and technology enthusiasts alike.

.

Compatibility:

  • New VIM Heatsink
  • Passive Heatsink
  • 3705 Cooling Fan(Not mandatory, VIM1 does not produce a lot of heat)
  • Tone1, VIMs Edition

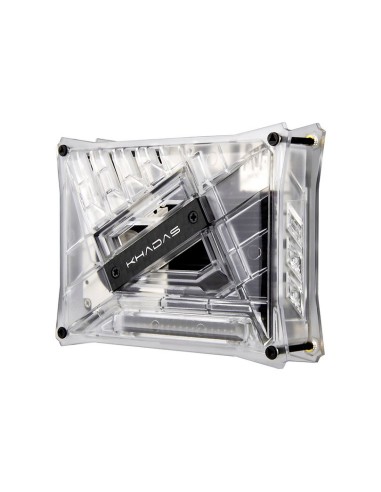

  • DIY Case
  • IR Remote
  • CR1220 RTC Battery
  • 10W Power Adapter
  • USB-C Male to Male Cable
  • USB-C to USB-A 2.0 Cable
  • HDMI Cable
  • VIN to VIN Cable

.

Maker Friendly:

  • Programmable 8bit MCU with 16mb of SPI-Flash
  • Cooling fan header 4-Pins 0.8mm Pitch Header, with PWM Speed Control
  • Programmable MCU with 16mb of SPI-Flash
  • XPWR for external Power button
  • Onboard SPI Flash
  • Khadas TST
  • 3D CAD Files
  • TF Card: Molex Slot, UHS-I Speed Class
  • RTC & RTC Battery Port: Yes, 0.8mm Pitch Header
  • IR Receiver: Dual Channels

.

40-Pin GPIO Header:

  • USBx2
  • I2Cx2
  • UARTx2
  • SPDIF
  • PWM
  • ADC
  • GPIOs (CPU: USB, I2C, I2S, SPDIF, UART, PWM, ADC, GPIO MCU: SWIM, NRST)

.

Indicator LEDs:

  • Red
  • White
  • Board Dimensions: 82.0 x 57.5 x 11.5 mm
  • Mounting Holes: Size M2 x 4
  • Board Weight: 28.5g

.

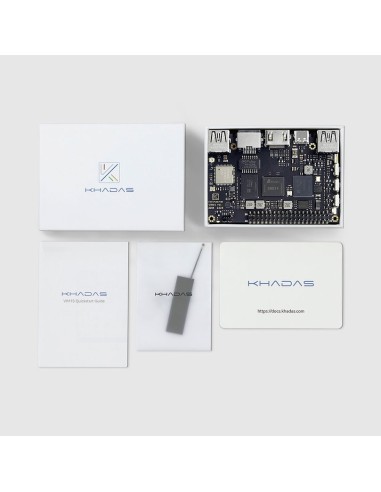

What's in the Box?:

  • 1* VIM1S
  • 1* Wi-Fi Antenna
  • 1* User Manual
  • 1*Quick-start Guide
  • * USB-C adapter and cable sold separately.



Product Details

CPU
Amlogic S905Y4 SOC - 2.0GHz Quad Core Cortex-A35 CPU
RAM
2GB LPDDR4 at 1176MHz, 32Bit/Storage: 16GB eMMC 5.0 With the OOWOW system embedded into VIM1S
Storage Capacity
16GB eMMC 5.0
Advanced GPU
ARM Mali-G31 MP2 GPU
Ethernet Controller
Fast Ethernet without WoL support
Display Output
HDMI 2.1 with 4Kx2K@60fps Max Resolution Output
USB Internal Connector
x2 USB 2.0
GPIO
40-Pin GPIO Header
MCU
Power management, EEPROM for customization
Button
x3 user buttons
Cooling Fan
3705 cooling fan
IR Receiver
Dual Channels
Wireless Standard
AP6256 Wi-Fi 5 Module
Bluetooth
5.0

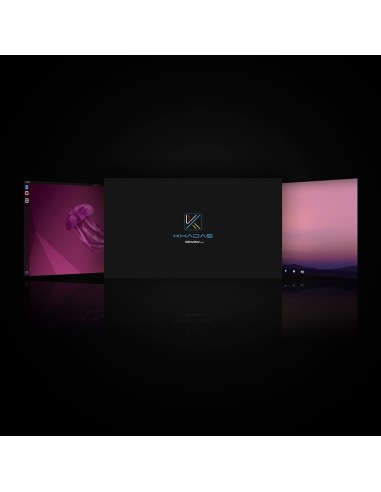

OS Support
Ubuntu and Android.
Board Size
82.0 x 57.5 x 11.5 mm
Dimension
82.0 x 57.5 x 11.5 mm
Board Category
KHADAS Boards
VIM1S
Weight
28.5g
SPI
32MB
KVIM1-S-001
