The Cluster Server GS1N2 is a high-performance, scalable server solution designed for demanding computational workloads like AI, cloud computing, and data centers. Below is a detailed description based on its key features, specifications, and applications:
Overview
The GS1N2 is part of cluster server series, built to deliver exceptional density, flexibility, and efficiency. It targets enterprises needing scalable infrastructure for AI training, edge computing, virtualization, and large-scale data processing.
Key Features
-
High-Density Modular Design:
-
Supports 4 independent computing nodes in a compact 2U chassis, maximizing resource utilization and reducing physical footprint.
-
Each node operates autonomously, enabling parallel processing and fault isolation.
-
-
Powerful Processing:
-
Dual-socket CPUs per node (supports Intel® Xeon® Scalable or AMD EPYC™ processors).
-
High core counts (e.g., up to 64 cores/128 threads per node) for intensive multitasking.
-
-
Massive Memory & Storage:
-
Memory: Up to 2TB DDR4 ECC RAM per node (via 16 DIMM slots).
-
Storage:
-
Front-accessible hot-swap bays for SATA/SAS HDDs or NVMe SSDs.
-
Supports RAID configurations for data redundancy.
-
Optional M.2 slots for boot drives.
-
-
-
GPU Acceleration:
-
Dedicated PCIe slots for multiple high-end GPUs (e.g., NVIDIA A100, RTX 6000 Ada) per node.
-
Optimized for AI/ML training, rendering, and scientific simulations.
-
-
High-Speed Networking:
-
Dual 10GbE LAN ports per node (with optional 25/100GbE upgrades).
-
OCP (Open Compute Project) NIC support for flexible connectivity.
-
-
Efficient Cooling & Power:
-
Redundant 80 PLUS Platinum PSUs (e.g., 2000W) with hot-swap capability.
-
Intelligent cooling with optimized airflow to handle high thermal loads.
-
-
Management & Security:
-
IPMI 2.0 remote management for monitoring, diagnostics, and KVM-over-IP.
-
Trusted Platform Module (TPM) for hardware encryption.
-
Use Cases
-
AI/Deep Learning:
GPU-accelerated model training and inference. -
Cloud & Virtualization:
High-density virtualization for multi-tenant environments. -
Edge Computing:
Compact deployment for real-time data processing (e.g., smart factories, IoT). -
HPC Clusters:
Scientific simulations, financial modeling, or genomic analysis. -
Media Rendering:
4K/8K video processing and 3D rendering farms.
Advantages
-
Scalability: Seamlessly add nodes to expand compute/storage.
-
Cost Efficiency: Reduced space/power vs. traditional servers.
-
Reliability: Redundant components (PSUs, cooling) minimize downtime.
-
Eco-Friendly: Energy-efficient design lowers operational costs.
Accessories & Customization
-
Optional GPU brackets, RAID controllers, or NVMe adapters.
-
Rack-mount kits and cable management solutions.
-
Custom BIOS/UEFI configurations for specialized workloads.
Category | Specification |
---|---|

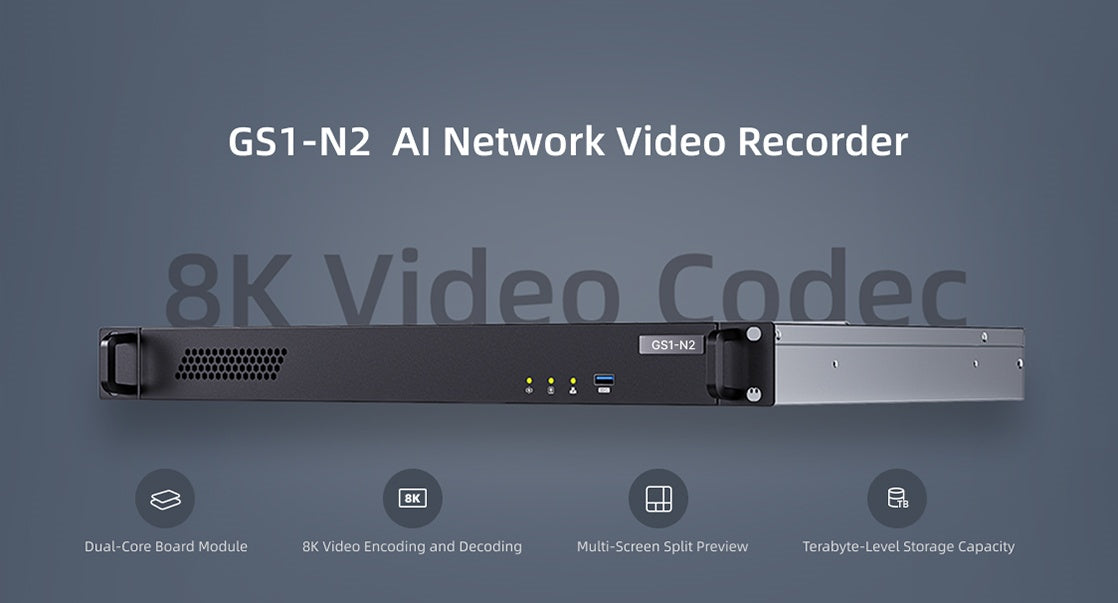

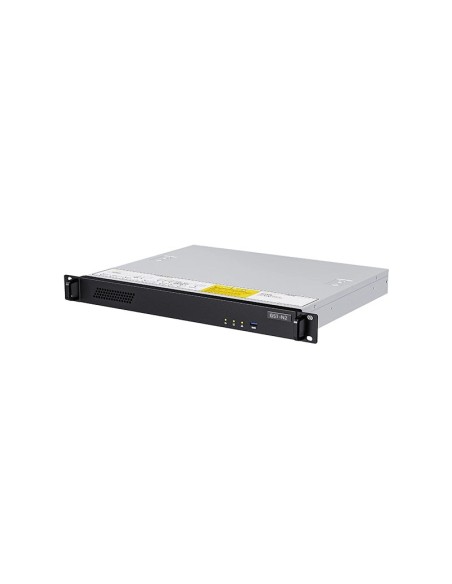

Product Type | AI Network video recorder (NVR) |
Core Module | |

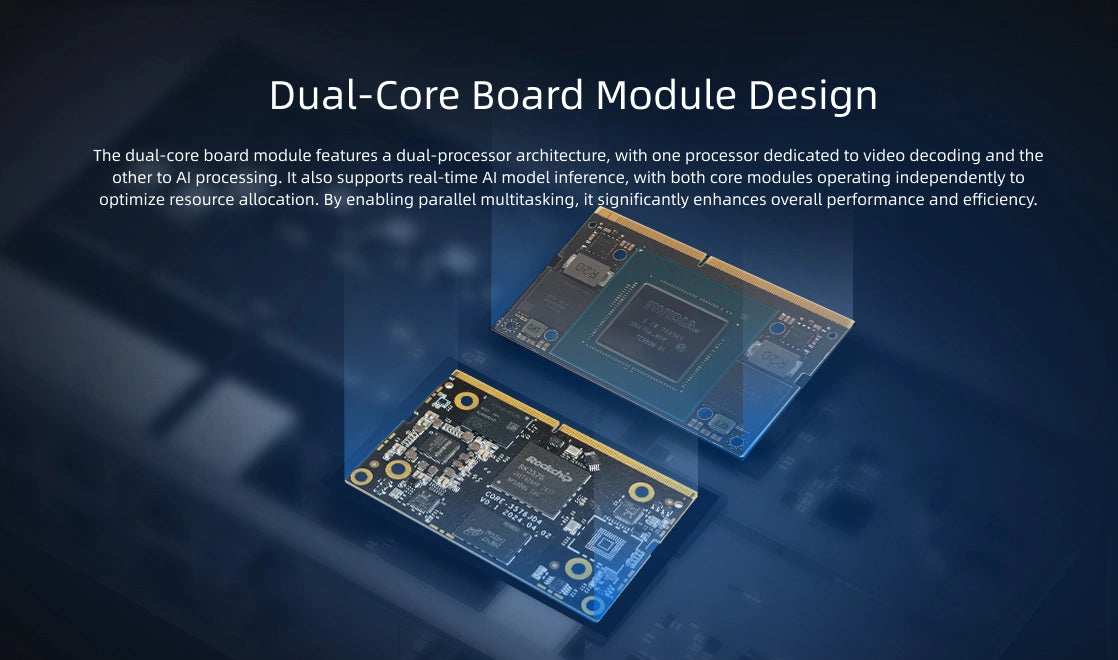

Type | Core-3576Jd4 |
Optional Mods | - |
Memory | LPDDR4/LPDDR4x (4/8/16GB optional) |
AI Performance | 6T |
Video Decoding | 8K@30fps H.265/VP9/AVS2/AV1 4K@120fps H.265/VP9/AVS2/AV1 4K@60fps H.264/AVC |
Video Encoding | 4K@60fps H.265/H.264 |
Sub Module (Optional) | |
Type | Jetson Orin Nano |
Memory | LPDDR5 (8GB) |
AI Performance | 67T |
Video Decoding | 1×4K60, 2×4K30, 5×1080p60 H.265 |
Video Encoding | 1080p30 H.265 |
Type | Jetson Orin NX |
Memory | LPDDR5 (16GB) |
AI Performance | 157T |
Video Decoding | 1×8K30, 2×4K60, 9×1080p60 H.265 |
Video Encoding | 1×4K60, 3×4K30, 6×1080p60 H.265 |
Storage | eMMC (16GB/32GB/64GB/128GB/256GB optional) |
Storage Expansion | 2 × SATA3.0 (Expansion of 3.5" or 2.5" SSD, multiplexed with PCIe) 2 × M.2 M-KEY (Extended PCIe NVMe SSD, support 2242/2260/2280 specifications, multiplexed with SATA3.0) Due to interface reuse, you can choose one of the following functions: 2 × SATA SSD, 2 × M.2 PCIe SSD, 1 × SATA SSD + 1 × M.2 PCIe WiFi, 1 × PCIe SSD + 1 × M.2 PCIe WiFi 1 × M.2 M-KEY (PCIe SSD, only available when sub-mod is selected) 1 × TF Card |

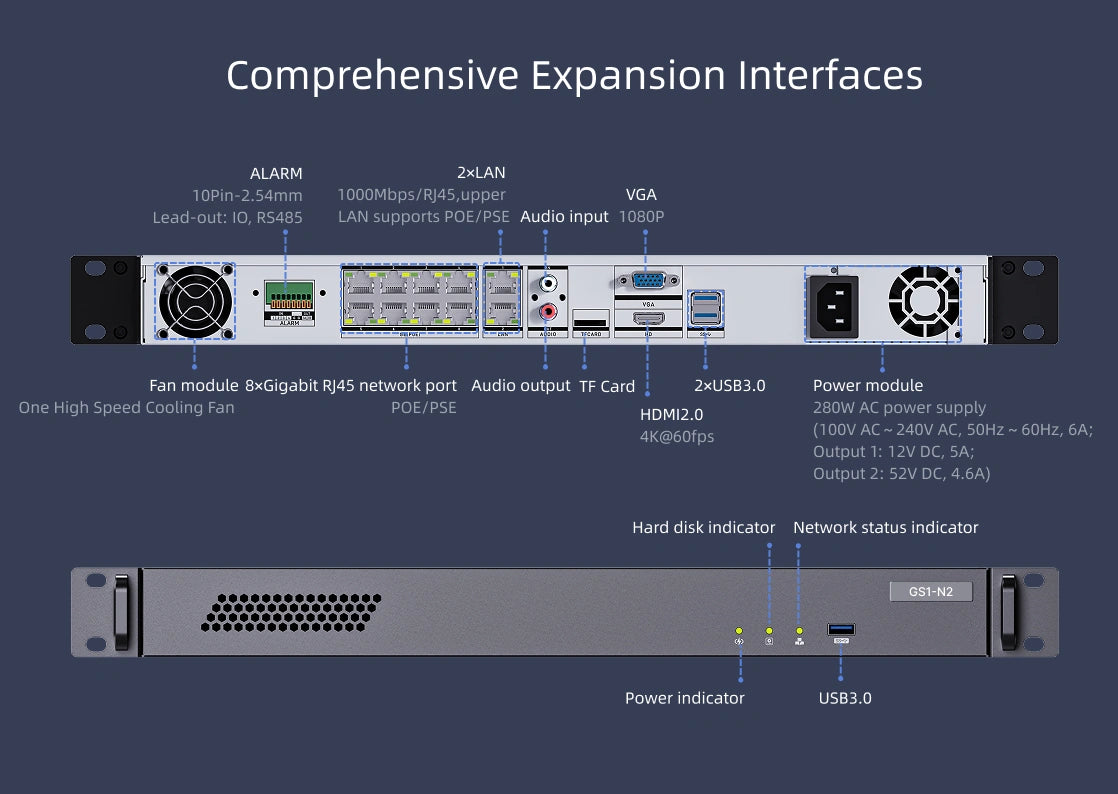

Power | 280W AC power supply (100V AC ~ 240V AC, 50Hz ~ 60Hz, 6A) Output 1: 12V DC, 5A; Output 2: 52V DC, 4.6A; does not support hot-swapping |

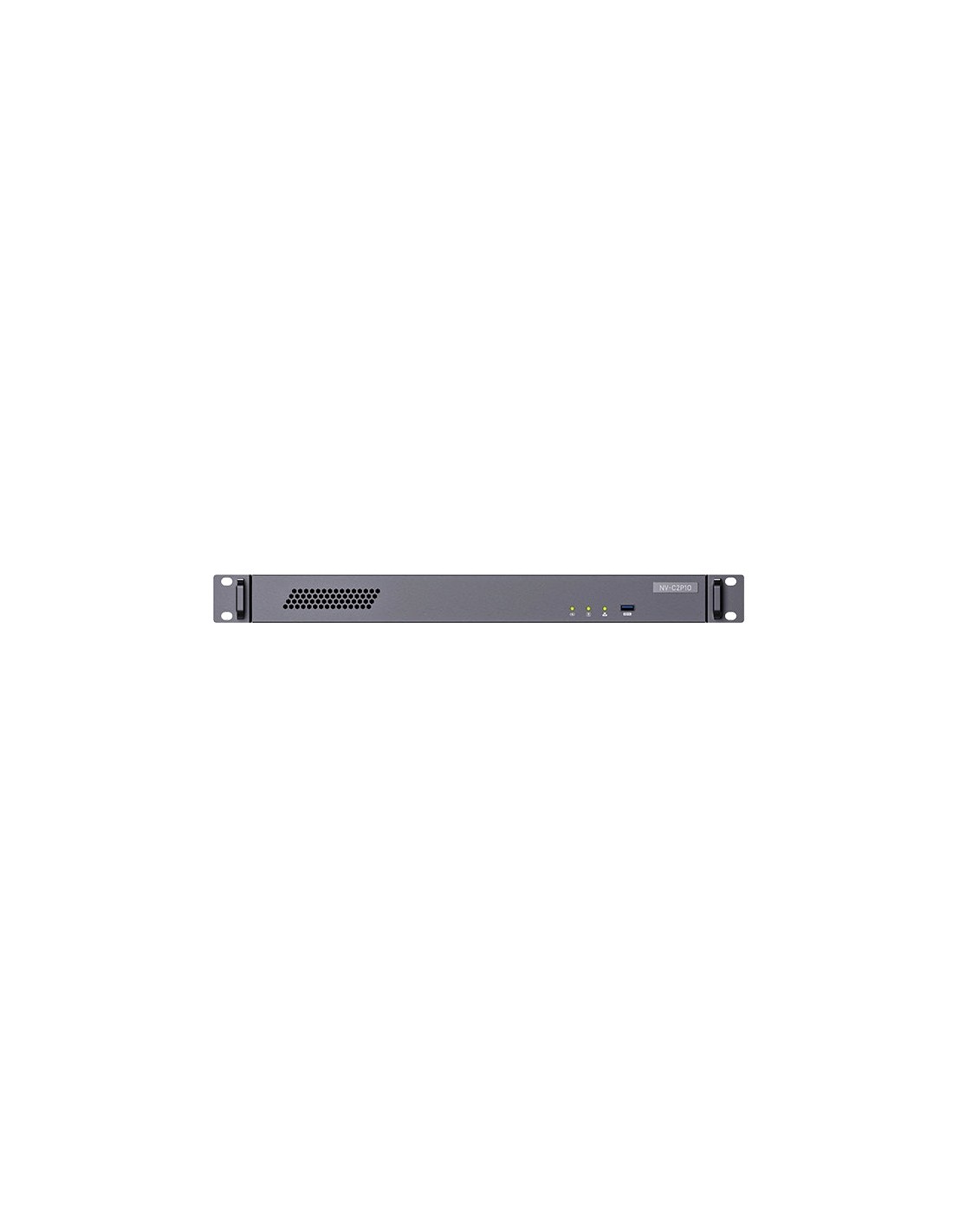

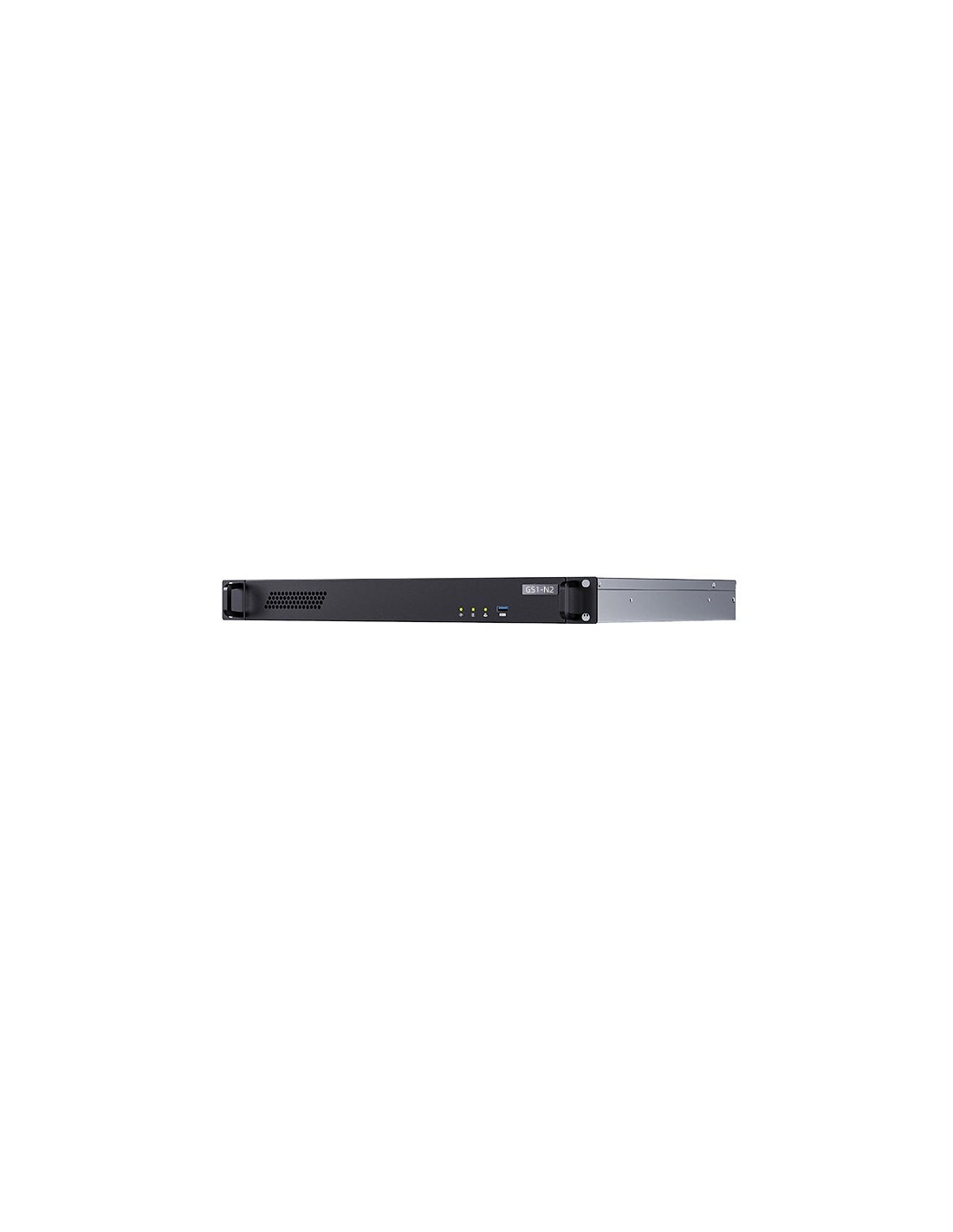

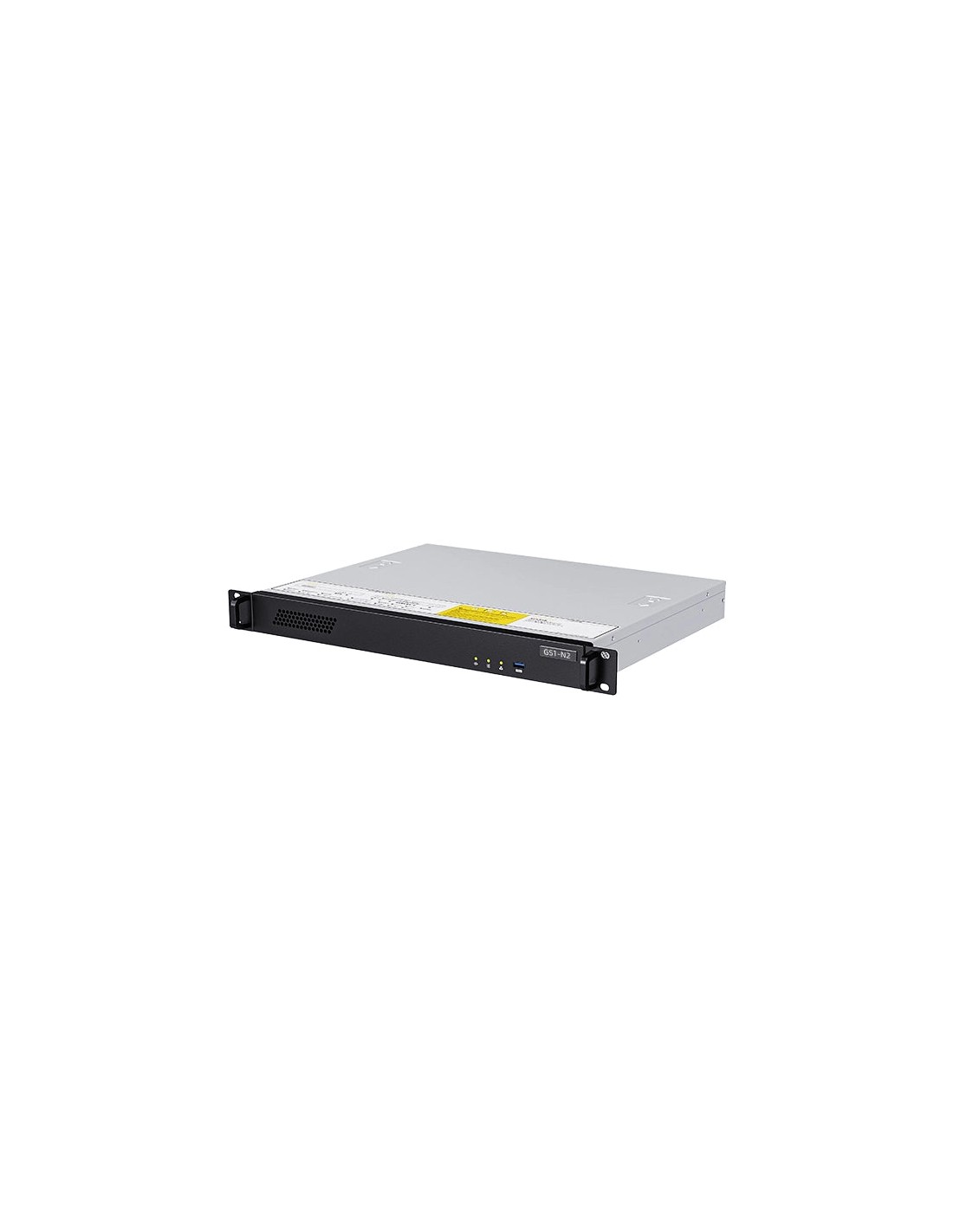

Size | Standard 1U Server Size: 490.0mm (L) × 368.0mm (W) × 44.4mm (H) |
Environment | Operating Temperature: 0℃ ~ 45℃ Storage Temperature: -40℃ ~ 60℃ Operating Humidity: 5% ~ 90%RH (non-condensing) |
Video Input | Supports up to 32 channels 1080P@30fps H.265/H.264 video inputs |
Video Output | 1 × VGA (max resolution 1080P), 1 × HDMI2.0 (4K@60fps) |

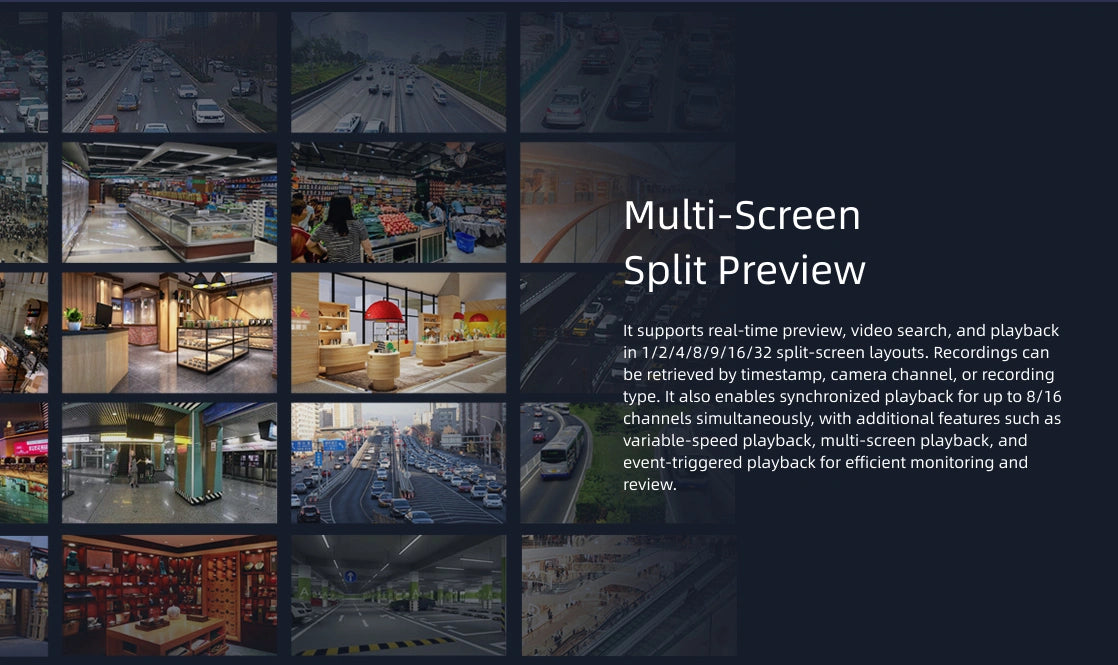

Video Preview | Supports up to 32 channels of high-definition network video real-time preview, AI analysis, storage, and playback Supports multi-view, real-time preview of 1/2/4/8/9/16/32 screen, and synchronous playback of 8/16 screen |
Audio | 1 × Audio input, 1 × Audio output |

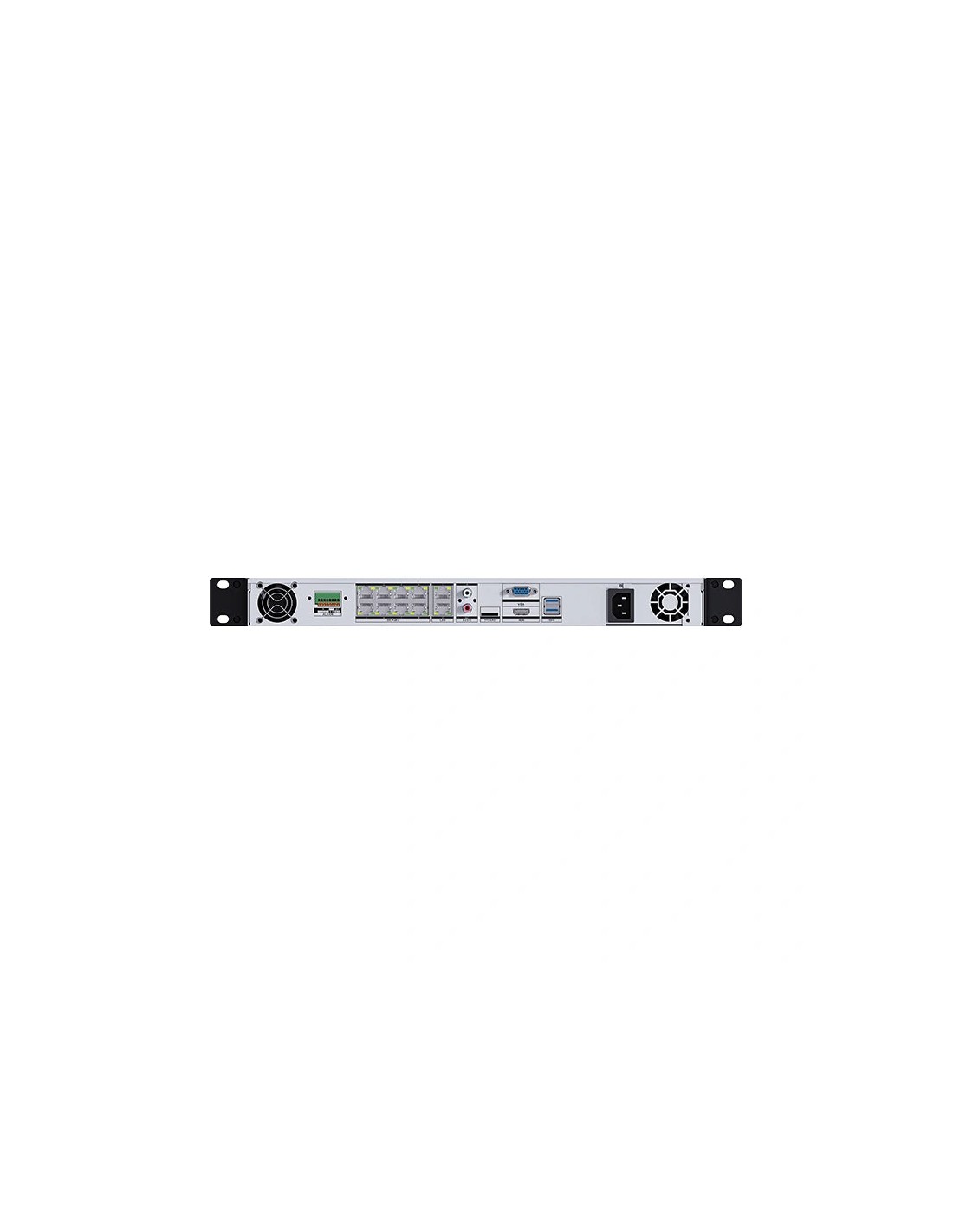

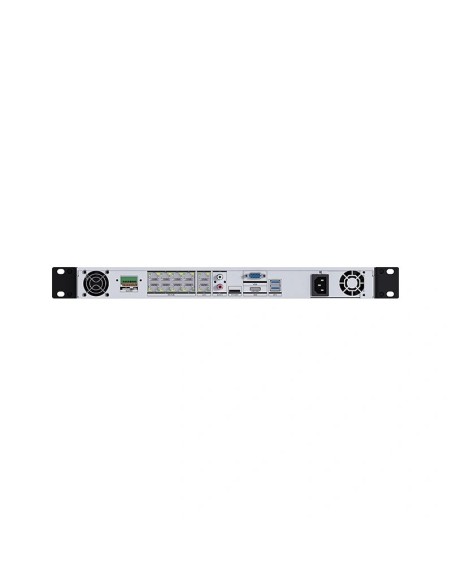

Internet | 8 × Gigabit Ethernet (RJ45, supports POE/POE5), 2 × LAN (RJ45/1000Mbps, upper LAN supports POE/POE5) Supports 2.4GHz/5GHz dual-band WiFi (via M.2 E-KEY, multiplexed with SATA3.0) Supports IPv6, UPnP, NTP, SADP, DHCP protocols |
USB | 3 × USB3.0 |

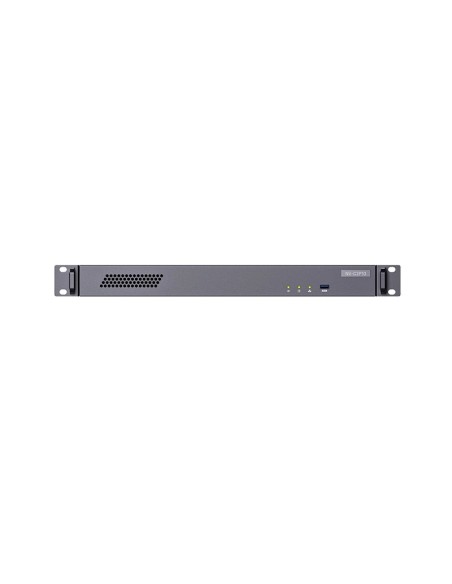

Indicator | 1 × Power indicator, 1 × Hard disk indicator, 1 × Network status indicator |
Others | 1 × ALARM (10Pin 2.54mm, Lead-out: RS485, IO) |
