Mobile & Cellular
Feature Details Mobile Module 4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps 3GPP Release Release 12 Status Info IMSI, ICCID, operator, CA indicator, signal metrics, data stats, cell info SMS Email to SMS, SMS to Email, HTTP/SMS, SMPP, schedule, autoreply USSD Send and receive USSD codes Block/Allow List Country/operator filter list Multiple PDN Access multiple network services via different PDNs Band Management Band lock, band status SIM PIN Management Set, change, or disable SIM PIN APN Auto configuration Bridge Direct mobile-to-LAN routing Passthrough Assigns mobile IP to LAN device
Wireless (Wi-Fi)
Feature Details Wireless Mode 802.11 b/g/n (Wi-Fi 4), 2x2 MIMO, AP + STA Wi-Fi Security WPA2/WPA3, PEAP, EAP, PSK, OWE, PMF, EAP-TLS SSID/ESSID Stealth mode Max Wi-Fi Users Up to 50 connections Features Mesh (802.11s), 802.11r/k/v MAC Filter Allowlist, blocklist QR Code Easy network access via QR scan TravelMate Redirect captive portal pages to LAN clients
Ethernet
Feature Details WAN Port 1 x WAN (10/100 Mbps), auto MDI/MDIX, IEEE compliant LAN Port 1 x LAN (10/100 Mbps), IEEE compliant
Network & Routing
Feature Details Routing Static, BGP, OSPF v2, RIP, EIGRP, NHRP, Policy-based Protocols TCP/UDP, IPv4/6, NTP, HTTP/S, MQTT, Telnet, SNMP, PPPoE, VXLAN, WOL VoIP Support SIP, H.323 passthrough Monitoring Ping/Wget/ICMP/LCP/Periodic reboot Firewall NAT, DMZ, port forward, TTL settings, custom rules Firewall Stats Rule counters, live view Ports Management Enable/disable, speed adjust Network Topology Visual mapping Hotspot Captive portal, SSO, RADIUS, user limits, custom themes DHCP Static/Dynamic, MAC wildcards, relay QoS/SQM Queue by service/port/IP; WMM/802.11e DDNS 25+ providers DNS over HTTPS Encrypted DNS support Network Backup LTE, VRRP, Wired, Wi-Fi WAN failover Load Balancing Multi-WAN balancing SSHFS Remote FS mount via SSH Traffic Management Real-time monitoring, wireless charts, history
Security
Feature Details Authentication RADIUS, PSK, X.509 certs, TACACS+, brute force protection Firewall WebUI/CLI configurable, NAT64, NAT-T Attack Prevention DDoS, port scan, SYN/FIN flood, brute-force protection VLAN Tag/port-based Mobile Quota Per SIM limit, alerts, schedule Web Filter Blacklist/Whitelist Access Control Web, CLI, SSH, Telnet restrictions SSL Certs Let's Encrypt, SCEP 802.1x Port-based access control
VPN Support
Feature Details OpenVPN Client/server, 27 encryption types IPsec IKEv1/v2, XFRM, 14 encryption algorithms GRE GRE + GRE over IPsec PPTP/L2TP L2TPv3, over IPsec Stunnel Adds TLS to legacy apps DMVPN Phase 2/3, dual hub SSTP SSTP client ZeroTier ZeroTier VPN support WireGuard Client/server Tinc Encrypted/authenticated tunnels Tailscale WireGuard-based point-to-point VPN
Industrial Protocols
Protocol Details OPC UA Client and Server over TCP MODBUS Server/Client, custom registers, support for INT, UINT, ASCII, HEX Data to Server HTTP(S), MQTT, Azure MQTT; scriptable data push MQTT Gateway Modbus to MQTT bridge DNP3 Station, Outstation over TCP DLMS/COSEM DLMS client mode over TCP
API & Monitoring
Feature Details Teltonika API JSON-RPC, Web API (beta), HTTP/HTTPS endpoints Web UI FW update, system logs, CLI, troubleshooting FOTA Remote FW updates SMS/Call Remote control (reboot, data, I/O, Wi-Fi toggle) TR-069 Broad TR-069 ACS compatibility MQTT Broker + Publisher SNMP v1/v2/v3, brute force protection RMS Teltonika Remote Management System
System Specifications
Feature Details CPU Mediatek, 580 MHz, MIPS 24KEc RAM 128 MB DDR2 Flash Storage 16 MB NOR Flash OS RutOS (OpenWRT-based) Dev Tools SDK, GPL custom branding, package manager
Input/Output (I/O)
Feature Details Digital Input 2 x DI (shared), logic high: 8–30 V, low: 0–6 V Digital Output 2 x DO (shared), open collector, 30 V, 300 mA I/O Events Trigger actions via SMS, Email, RMS I/O Juggler Set trigger-based event actions
Power & Interfaces
Feature Details Power Connector 4-pin industrial DC Voltage Range 9–30 VDC, reverse/surge protection Passive PoE Optional (requires hardware variant) Consumption Idle: < 2.4 W; Max: < 4.7 W
Physical & Interfaces

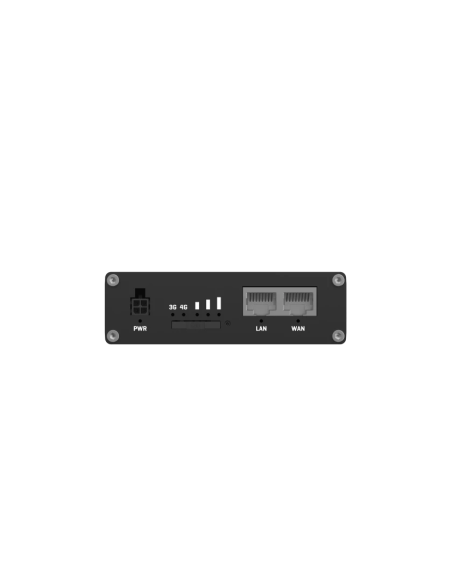

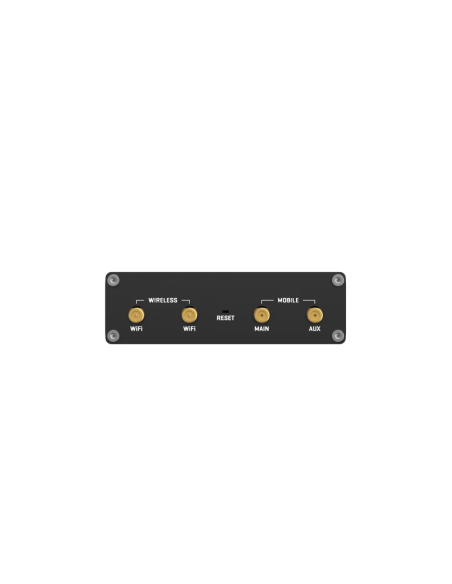

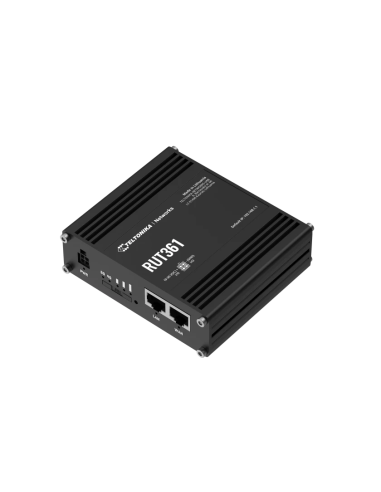

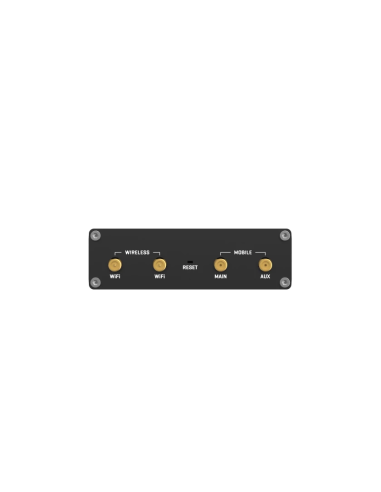

Feature Details Ethernet Ports 2 x RJ45, 10/100 Mbps I/O Connector 2 x configurable digital I/O on 4-pin connector LEDs Power, ETH, signal strength, connection type SIM Slot 1 x Mini SIM (2FF), external holder Antennas 2 x SMA (LTE), 2 x RP-SMA (Wi-Fi) Reset Button Reboot, factory reset, user default
Physical Characteristics
Feature Details Casing Aluminium Dimensions (mm) 100 x 30 x 85 Weight 243 g Mounting Options DIN Rail, Wall, Flat (mount kits sold separately)
Environmental & Certifications
Feature Details Operating Temp -40 °C to +75 °C Humidity 10% to 90% non-condensing IP Rating IP30 Regulatory CE, UKCA, FCC, IC, RCM, CB, RoHS, REACH, WEEE Operators PTCRB, AT&T, Verizon approved
