Mobile & Cellular
| Feature |
Description |
| Mobile Module |
4G LTE Cat 4 up to 150 DL / 50 UL Mbps; 3G up to 21 DL / 5.76 UL Mbps; 2G up to 236.8 kbps |
| 3GPP Release |
Release 11 |
| SIM Switch |
Dual SIMs with auto-switching: weak signal, data/SMS limit, roaming, no network, idle, etc. |
| Status Info |
Full metrics: IMSI, ICCID, RSRP, SINR, Cell ID, MCC, MNC, ARFCN, TAC, etc. |
| SMS Features |
Email-to-SMS, SMS-to-Email, SMPP, scheduling, HTTP, autoreply |
| USSD |
Supports USSD send/receive |
| Band Management |
Band lock, used band display |
| Multiple PDN |
Allows use of different PDNs for multi-network service |
| SIM PIN Mgmt |
Set/change/disable SIM PIN |
| APN |
Auto APN detection and setup |
| Bridge Mode |
Bridge between mobile ISP and LAN |
| Passthrough |
Assign mobile IP to LAN device |
Wireless (Wi-Fi)
| Feature |
Description |
| Wireless Mode |
802.11b/g/n (Wi-Fi 4), AP and STA modes |
| Wi-Fi Security |
WPA2/WPA3, PEAP, EAP, OWE, client separation, PMF, EAP-TLS |
| SSID/ESSID |
SSID stealth, MAC-based access control |
| Max Wi-Fi Clients |
Up to 100 simultaneous users |
| Roaming Features |
802.11r (fast roaming), 802.11v (BSS), 802.11k (RRM) |
| QR Code Generator |
Enables QR scan login |
| TravelMate |
Redirect Wi-Fi portal to downstream LAN device |
Ethernet
| WAN Port | 1 x 10/100 Mbps, IEEE 802.3/u/az, Auto MDI/MDIX |
| LAN Ports | 3 x 10/100 Mbps, Auto MDI/MDIX |
Networking
| Routing | Static, BGP, OSPF v2, RIP, EIGRP, NHRP, Policy-based routing |
| Protocols | TCP/UDP, IPv4/6, MQTT, SNMP, PPPoE, VRRP, HTTP/S, SSH, Telnet, FTP/SFTP, NTP, DNS, SMPP |
| VoIP Passthrough| H.323 & SIP ALG NAT helpers |
| Connection Mon | Ping/Wget/LCP/ICMP/Periodic Reboot |
| Firewall | Port forward, TTL, NAT, DMZ, custom rules |
| DHCP | Static/Dynamic leases, MAC wildcards, DHCP relay |
| QoS / SQM | Traffic queue by IP/service/port, WMM, 802.11e |
| DNS over HTTPS | Secure DNS proxy support |
| Network Backup | Failover: Mobile, VRRP, Wired, Wi-Fi WAN |
| Load Balancing | Multi-WAN traffic distribution |
| SSHFS | Mount remote filesystem via SSH |
| Traffic Monitoring| Real-time stats, wireless charts, usage history |
| Port Mirroring | Mirror Ethernet traffic for diagnostics |
Security
| Authentication | PSK, X.509, RADIUS, TACACS+, brute-force protection, time-based login blocks |
| Attack Prevention| DDoS protection, Port scan detection, SSH/HTTP/HTTPS protections |
| Web Filter | Blacklist and Whitelist control |
| Access Control | Restrict access to SSH, WebUI, CLI, Telnet |
| Firewall Config | GUI/CLI-based rule mgmt, NAT64, DMZ |
| VLAN | Port/tag-based isolation |
| SSL Certs | Let’s Encrypt, SCEP |
VPN
| Protocols | OpenVPN, IPsec, GRE, L2TP, PPTP, WireGuard, SSTP, Tinc, ZeroTier, DMVPN |
| Encryption | AES-GCM, AES-CBC, 3DES, RC2, CAST5, DESX, various modes |
Industrial Protocols
| Modbus | RTU (RS232/RS485), TCP, USB; INT, UINT, FLOAT, HEX, ASCII |
| DLMS/COSEM | Client over RS232, RS485, TCP |
| BACnet | Router via RS485/TCP; BBMD, multiple IP interfaces |
| OPC UA | Client & Server modes via TCP |
| DNP3 | Station/Outstation; RS232, RS485, TCP, USB |
| MQTT Gateway | Bridge between Modbus & MQTT |
| Data to Server | HTTP(S), MQTT, Azure MQTT + LUA scripting |
Monitoring & Management
| WebUI | Full config, status, diagnostics, logs, FW updates |
| TR-069 | Supported: OpenACS, EasyCwmp, tGem, LibreACS, etc. |
| SNMP | v1/v2/v3 with brute-force protection |
| MQTT Broker | Local broker and publisher supported |
| RMS | Teltonika Remote Management System integration |
Location Tracking
| GNSS | GPS, GLONASS, BeiDou, Galileo, QZSS |
| NMEA/NTRIP | NMEA 0183, NTRIP protocol support |
| Geofencing | Multi-zone geofence alerting |
Interfaces
| RS232 | DB9, Console, Serial-over-IP, Modbus, NTRIP |
| RS485 | 2-wire/4-wire, 300–115200 baud |
| USB | USB 2.0 – supports flash, HDD, printer, modem, Samba, serial adapter |
| SD Card | MicroSD up to 2TB; storage, DLNA, Samba |
| I/O | 2 Inputs, 2 Outputs, incl. analog input, relay, isolated & open collector |
Power & Environment
| Power Input | 9–30 VDC, surge/reverse protection, passive PoE on LAN1 |
| Consumption | <2W idle, <7W max |
| Temperature | -40°C to +75°C |
| Humidity | 10% to 90% non-condensing |
| IP Rating | IP30 |
Physical
| Ethernet Ports | 4 x RJ45 10/100 Mbps |

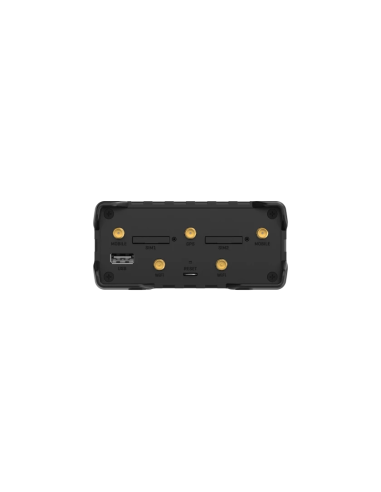

| Antenna Ports | 2 x SMA (LTE), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS) |
| USB Port | 1 x USB-A |
| SIM Slots | 2 x Mini SIM (2FF), eSIM optional |
| I/O Connector | 10-pin industrial socket, 4-pin power connector |
| Casing | Aluminium with plastic panels |
| Size (mm) | 110 x 50 x 100 |
| Weight | 287 g |
| Mounting | DIN rail, wall, flat (kits required) |
Certifications & Compliance
| Certifications | CE, FCC, IC, PTCRB, RCM, Anatel, C1D2, UKCA, CB, UL/CSA, RoHS, REACH |
| EMC Standards | EN 55032/35, EN 301 489, EN 300 328, EN 301 908, EN 303 413 |
| Safety Standards| EN/IEC 62368-1, UL 121201, Class I Div 2 / Zone 2 |
