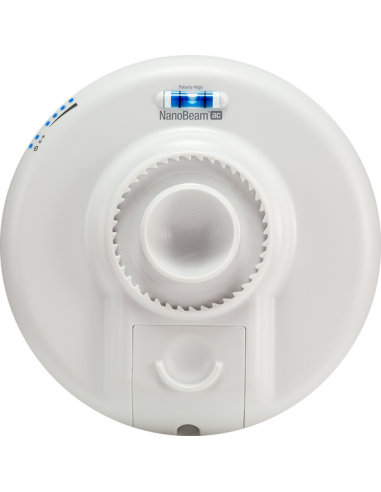

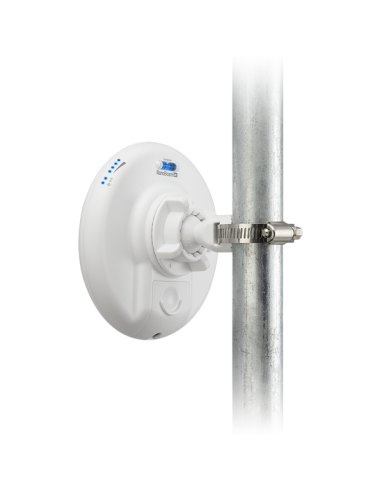

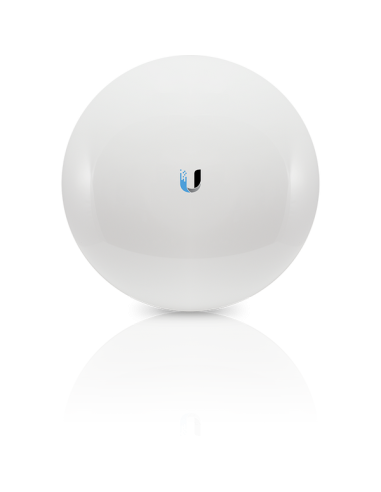

UISP airMAX Nanobeam AC 2.4-GHz 13-dBi 2x2 MIMO Station Antenna

With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High-performance NanoBeam design at 2 GHz with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP Mobile App support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).

Tech specs

• Max Power Consumption: 7.5W
• Gain: 13dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port, Wi-Fi for Management
• Processor Specs: Atheros MIPS 74Kc, 533 MHz
• Memory: 64 MB DDR2
• Wind Loading:  45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC

Box Contents

• 1 x Ubiquiti NanoBeam 2AC-13
• 1 x Ball Joint Mount
• 1 x Lock Ring
• 1 x Metal Strap
• 1 x Gigabit PoE Adapter with Mounting Bracket
• 1 x Power Cord
• Quick Start Guide

The NanoBeam 2AC utilizes a stronger RF energy beam width for better noise filtration. It features a one direction focus for a stronger frequency signal.

Benefits

• Built-in mechanical tilt. The mounting bracket conveniently offers 20 Degrees of up-tilt and up to 20 Degrees of downtilt.
• Quick assembly. The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
• Easy removal. The antenna feed can be detached with the push of a button.
• Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
