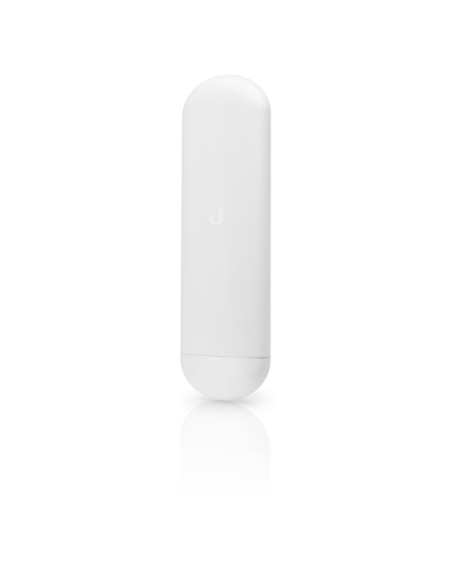

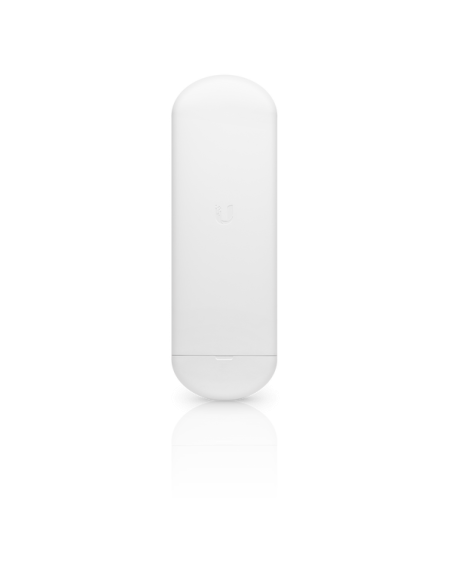

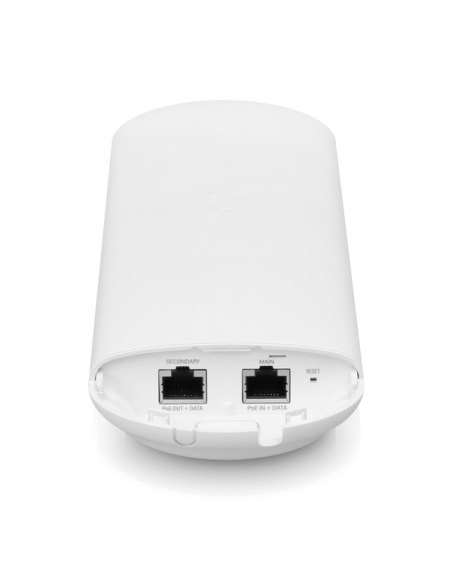

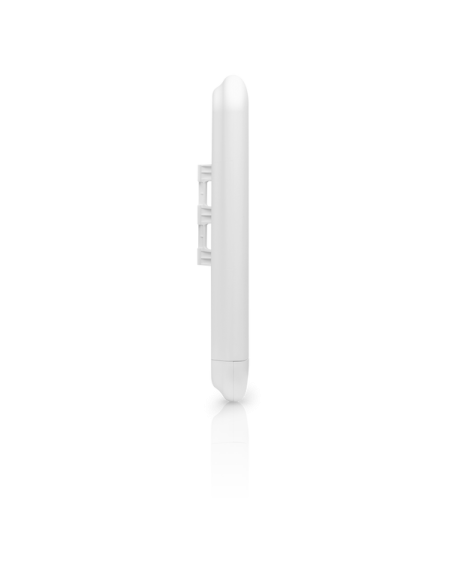

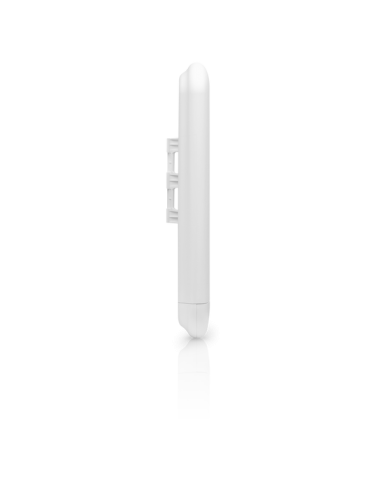

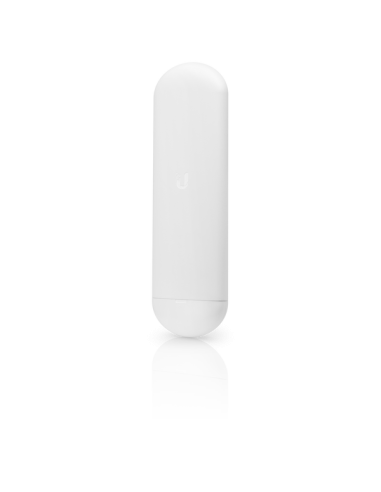

UISP airMAX NanoStation AC 5-GHz 16-dBi CPE

The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC makes it extremely versatile and economical to deploy.

Tech specs

• Throughput: Up to 450+ Mbps Real TCP/IP Throughput
• Operating Frequency (MHz): 5150 - 5250, 5725 - 5850
• Management Radio (MHz): 2412 - 2462
• Power Supply: 24V, 0.5A Gigabit PoE Supply
• Max. Power Consumption: 8.5W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Gain: 16 dBi
• Networking Interface: 10/100/1000 Mbps Ethernet Port
• Channel Bandwidths: 10/20/30/40/50/60/80 MHz
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 5 to 95% Non-condensing

Box Contents

• 1 x NanoStation
• 1 x Wall Mount Bracket
• 2 x Screws
• 2 x Screw Anchors
• 2 x Zip Ties
• 1 x Gigabit PoE Adapter
• 1 x Power Cord
• Quick Start Guide

Benefits

• Real-time reporting
• Spectral analysis
• Advanced RF analytics
• Dedicated Wi-Fi radio for management
• Versatile Mounting: Suitable for indoor and outdoor installations
• Improved Surge Protection: The NanoStation AC utilize the latest ESD Protection to help protect against power surges.
• Efficient Footprint: The radio and antenna are combined into a single body that takes up minimal space.
• Quick Installation: No fasteners are required for pole mounting
