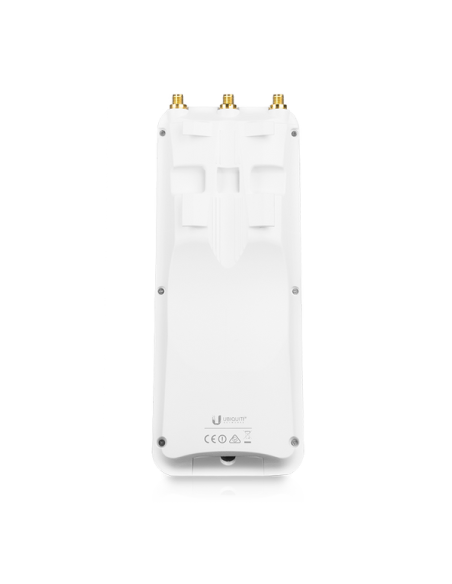

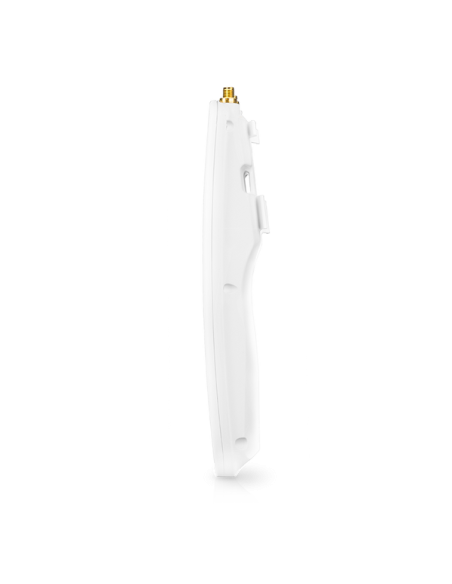

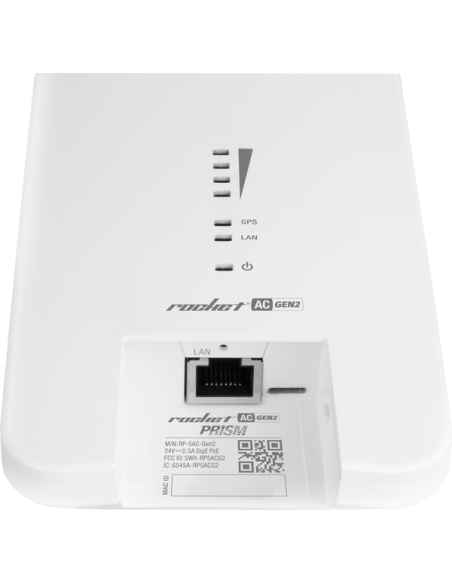

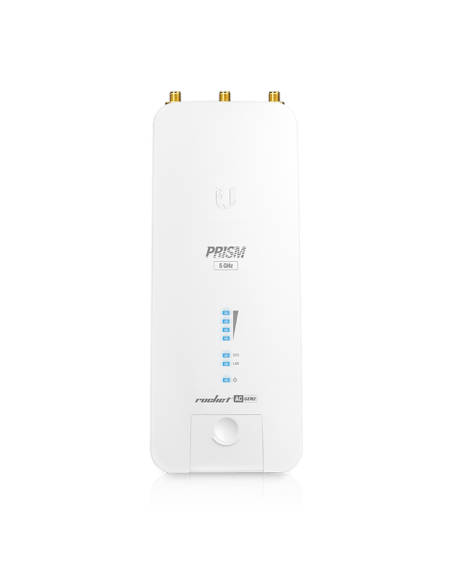

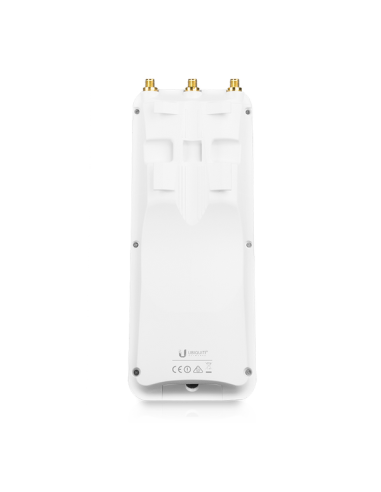

UISP airMAX Rocket AC Gen2 5-GHz BaseStation

The Ubiquiti RP-5AC-Gen2 utilizes airPrism technology to provide breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Rocket Prism 5AC features EMI shielded metal housing, GPS, airPrism, circuitry, and the airView real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

Tech specs

• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (2) RP-SMA (waterproof), (1) GPS (waterproof)
• Max. Power Consumption: 9.5W
• Power Supply: 24V, 1A Gigabit PoE Adapter (included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Processor Specs: Atheros MIPS 74Kc
• Memory: 128 MB DDR2 SDRAM
• Supported Voltage Range: 18-26 V DC
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Operating Humidity: 5 to 95% non-condensing

Box Contents

• 1 x Rocket Prism 5AC
• 1 x GPS Antenna
• 1 x Gigabit PoE
• 1 x Mounting Bracket
• 1 x Power Cord
• Quick Start Guide

Benefits

• airView: Use the real-time spectrum analyzer so you can identify noise signatures and design your wireless links to maximize noise interference
• High Performance: Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities
• airPrism Sector Antenna: You can mount three Rocket Prism 5AC Gen 2 radios on the airPrism 5GHz 3x30 Deg HD Sector Antenna for PtMP links
• Dedicated Management Radio: Access the configuration interface instantly through the UISP Mobile App to set up and manage your Rocket 5AC Prism Gen 2
• Robust Die Cast Aluminum Casing: Helps protect the Rocket Prism 5AC Gen 2 against electromagnetic interference
• GPS for Superior Co-Location Performance: Precise GPS frame synchronization enable co-located Rocket Prism 5AC Gen 2 radios to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability
• Improved Surge Protection: Utilizes the latest ESD protection to help protect against power surges
• Gigabit Ethernet: Delivers high throughput over its wired connection
