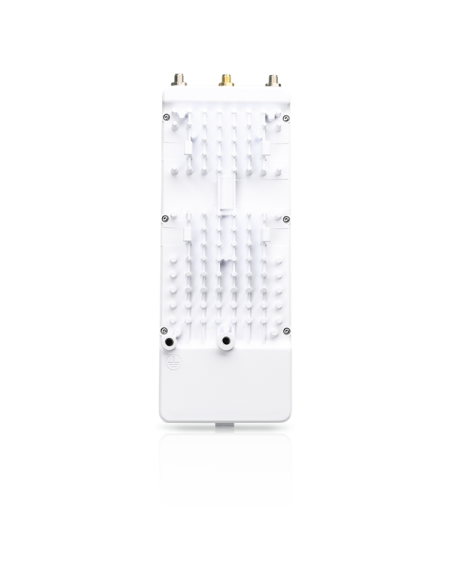

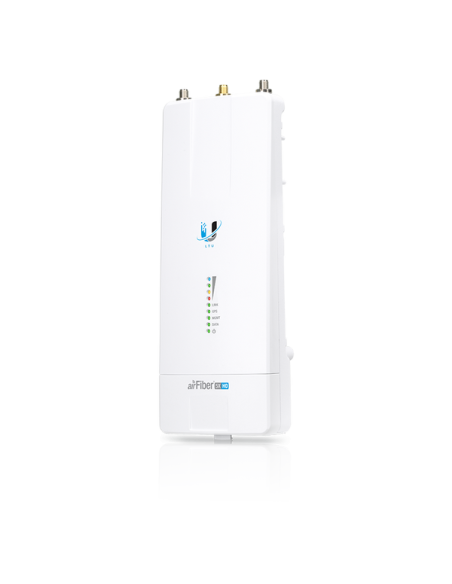

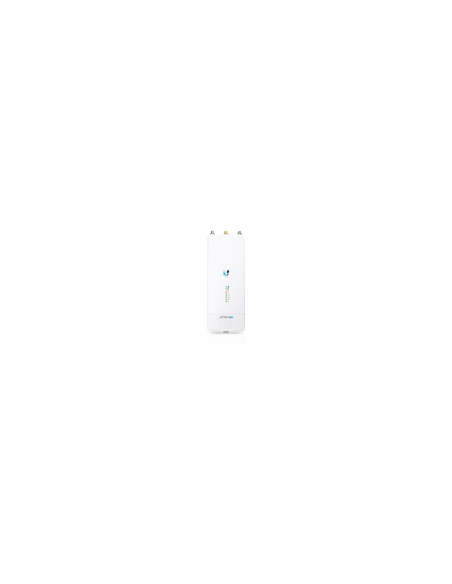

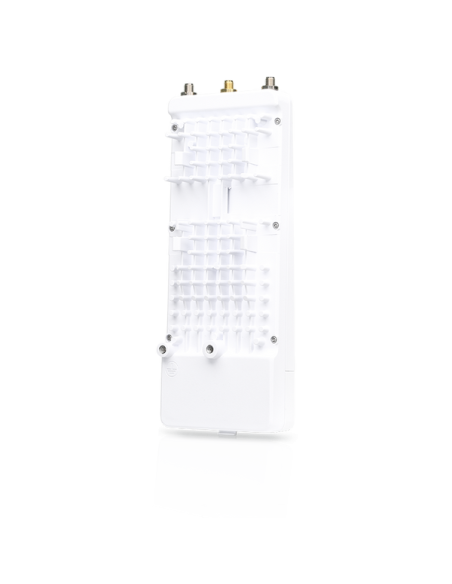

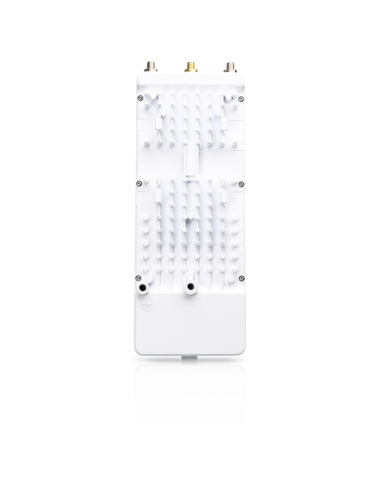

UISP airFiber 5XHD 5-GHz 1-Gbps Point to Point Carrier Backhaul Radio

Its core communications processing engine surpasses the limitations inherent to generic Wi-Fi chips to provide low latency, long‑range capability, DFS flexibility, higher constellations, and better power output, along with improved receive sensitivity. The AF‑5XHD features industry leading 21.2 bps/Hz spectral efficiency, line‑rate data packet processing for up to 1.34 Gbps of real data throughput, and innovative xtreme Range Technology.

Benefits

• Programmable Transmit Power: The radio's transmit power level can be programmed up to +29 dBm
• Programmable Duty Cycle (GPS synchronized frames): The AF-5XHD allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7%, and 75%.
• Configurable GPS Synchronization: The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems
• Adaptive Modulation up to 1024QAM Adaptive modulation rates of up to 1024QAM (4096QAM with targeted upgrade) are supported.

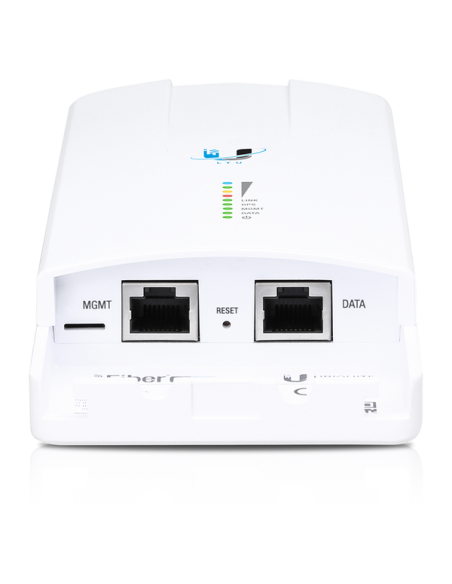

• Dual Redundant Gigabit Ethernet Ports with PoE The AF-5XHD has two Gigabit Ethernet ports that can be used to provide redundant PoE power.
• Bluetooth Wireless Configuration: Use the built-in Bluetooth interface for wireless configuration

Tech specs

• Frequency Range: 4.8 GHz - 6.2 GHz (Dependent on Regulatory Region)
• Max. Conducted TX Power: 29 dBm (Dependent on Regulatory Region)
• Weatherproofing: IP67
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• Maximum Throughput: 1.34 Gbps
• Maximum Range: 100 km
• Packets per Second: 2+ Million
• Latency: 1.5 ms - 3.5 ms
• Encryption: AES-256

Box Contents

• 1 x Radio
• 1 x PoE
• 1 x GPS Holder
• 1 x Mount Spacer
• 1 x GPS Antenne
• 1 x Power Cord
