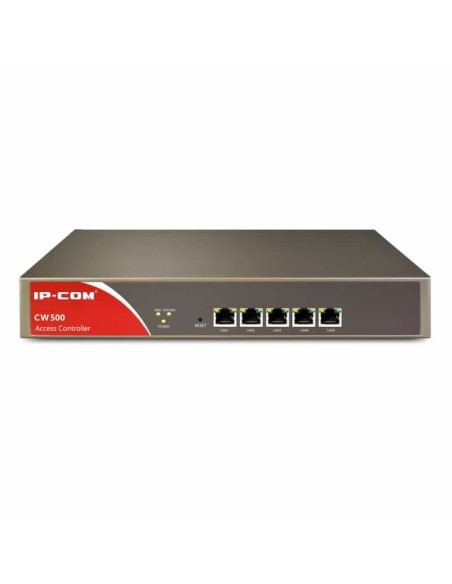

CW500 Access Controller
CW500 Access Controller
  • On sale!

CW500 Access Controller

US$54.95
US$64.95
Tax excluded

CW500 is an access controller to configure, manage and monitor the IP-COM APs such as W300AP. When you power on the APs, it discovers APs in the network automatically and send the initial configuration to the APs.

CW500 is an access controller to configure, manage and monitor the IP-COM APs such as W300AP. When you power on the APs, it discovers APs in the network automatically and send the initial configuration to the APs. Then you can manage all the online Aps' Description, SSID, Channel, Security, Output Power and define different VLAN ID for APs to bind SSID to VLAN to establish different Internet access right at one place without move everywhere. Hence, CW500 makes network administration more easy, more convenient.

CW500 Access Controller

  • 5 Gigabit Ethernet LAN ports
  • Maximum managed number of AP 128
  • Discover APs and Send configuration automatically
  • Tagging SSID to VLAN to establish different access right

Highlights

Centralized Management
CW500 can manage and monitor all the fit APs such as W300AP in the network. You can modify the description, SSID, channel, security and output power for APs. You can also monitor the APs' and clients' online status through it.

AP Automatically Discover
After power is on the APs in the network, the APs will get the IP address from the CW500. Then, CW500 will discover all the APs automatically.

Branch Network Mode
CW500 deploys in branch network mode. You just connect the CW500 to the core switch without changing your network topology.

SSID to VLAN tagging
CW500 supports VLAN function. You can define different VLAN IDs for each port. Then, when managing APs, you can tag VLAN IDs to SSIDs to establish different Internet access rights.

5 Gigabit Ports
Five built-in Gigabit Ethernet ports, up to 10x data speed as traditional Fast Ethernet ports to offer faster data transfer.

Now available in Canada!


 Package Contents:

  • 1*Access Controller CW500
  • 1*Power Cord
  • 4*Mats
CW500

Data sheet

Compatible with
All IP-COM APs
Processor (CPU)
1GHz BCM4708
LED
SYS, PWR
Button
1* Reset
Interface
5*GE LAN Ports
DHCP Server
Yes
VLAN
Yes
Compliant Standards
IEEE 802.3ab/3u/3
Wireless Security Settings
64/128 WEP, WPA-PSK, WPA2-PSK
Storage Humidity
10%~90% non-condensing
Operating Humidity
10%~90% non-condensing
Operating Temprature
-10℃~45℃
Storage Temprature
-30℃~70℃
Power
AC10~240v 50/60Hz 0.6A
Weight
3.5kg
Width
130mm
Height
30mm
Length
210mm
Certificate
FCC/CE/RoHs
Return Warranty
Standard 30 Days
Manufacturer Warranty
1 Year Limited Warranty
