High Power AP Router (Outdoor)

Name: High Power AP Router (Outdoor)
Brand: Wallystech
SKU: DR-AP6018-S
Price: 280 USD
Availability: InStock

Ships Directly from Canada

US$280.00

DR-AP6018-S(Outdoor) is a 2x2 2.4G&5G high power Radio AP Router which includes 1x DR6018-S Board;1 x Onmi Antenna; 1 x POE Adapter(24V^1A~48V^0.6A);1 x Enclosure.

Ask a Quote

Description

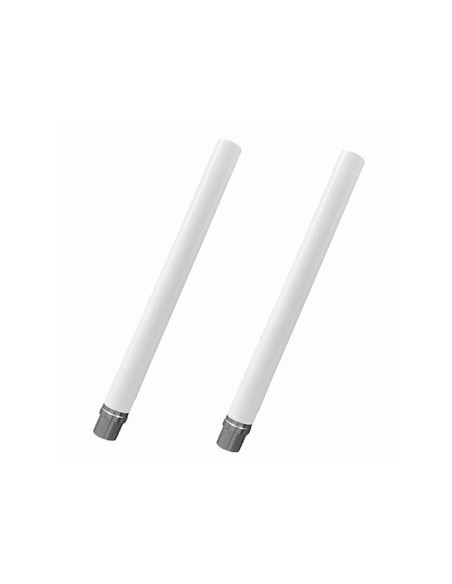

Planar Antenna

2 x 5G Antenna
5G: 16dbi

ElectricalProperties

Frequency Range：2.4~2.5&5.15~5.85GHz
Impedance：50Ω
VSWR：2.0 Max （≤2.0）
Gain(peak)：6±0.5dBi
Polarization：Linear; Vertical

Physical Properties

Cable：RG-141 Cable
Connector：N-type PLUG
Antenna CAP：ABS
OperatingTemp：-40℃~+65℃
Storage Temp：-40℃~+75℃
CableTemp：＜+250℃

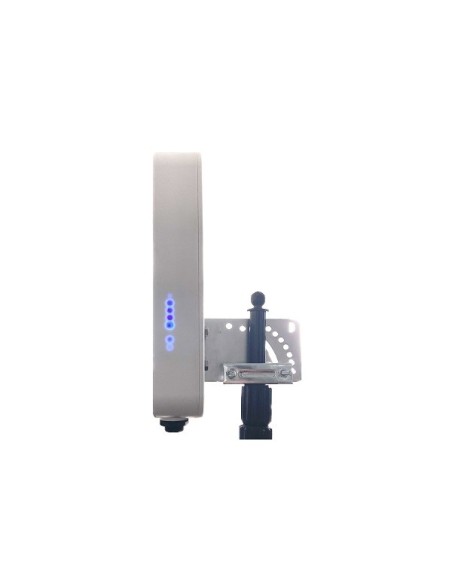

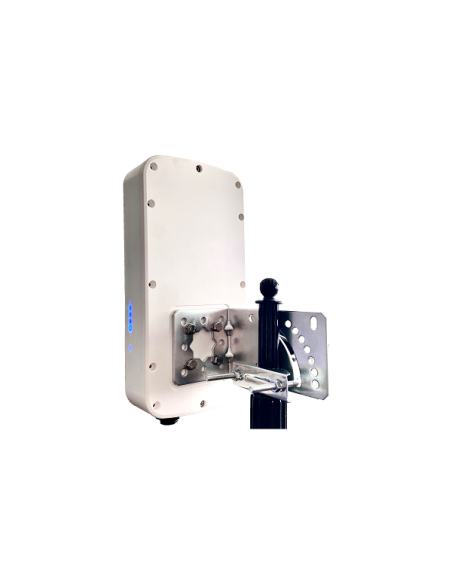

Enclosure

Dimension: 275x140x48mm
UV Protected and Durable ABS Radome
IP67 Waterproof Level
Support Wallys’ PCBA Mainboard

Product Details

Base Frequency: Quad-core ARM 64 bit A53 @1.8 GHz processor
Memory Type: 256MB~512MB
System Memory: 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design
NAND Flash: 256MB
NOR Flash: 8MB
Ethernet Ports: 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports
LED Header: 2.0 pitch pin header
USB Ports: 1x USB 3.0 Port(Option)
Supply Voltage: 24V~48V(DC Jack)
DC Jack supported input voltage: 24V~48V power supply
Operating Humidity: 5 to +95 (non-condensing) %
Operating Temperature: -40 to +70 Celsius
Storage Temperature: -45 to +105 Celsius
Wireless: On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain
SD Card Slot: 1x SD Card Slot(Option)
Dimension: 125mm x 105mm x 20mm
Serial Port: 1x Serial Port 4 Pin Connector
Power Over Ethernet: 24V~48V passive POE/Active POE(Suport 802.3bt)
NGFF Slot: M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module)
