Ships in 10 ~ 15 Days
US$20.30

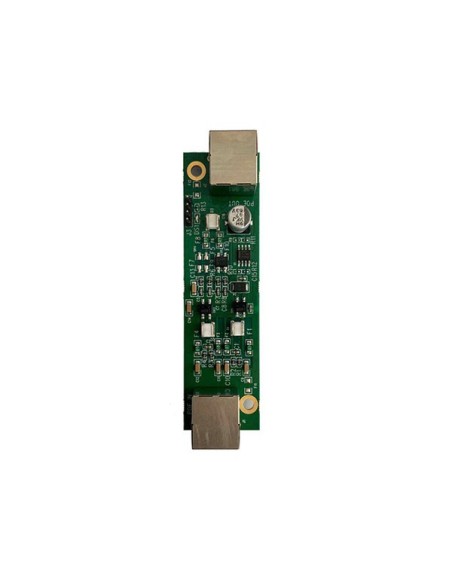

PD-25 is a 802.3at module, that also support 802.3af standard.And it can work in complex environment.

The minimum purchase order quantity for the product is 5.

Quantity Unit price You Save
21 US$18.90 US$29.40
51 US$18.20 US$107.10
101 US$17.50 US$282.80
Ask a Quote

Description

Features

  • Support 802.3BT/AT/AF
  • The output voltage is 48 V
  • The efficiency is 90%
  • Support surge protection
  • Support RoHS compliance ensure a high level protection of human health and the
  • environment from risks that can be posed by chemicals

.

Applications

  • Security Surveillance
  • Commercial radio coverage
  • Hotel Wireless application
  • Country coverage
  • Forest fire protection engineering

.

Specification

  • Input voltage: 42~56 V
  • Output Voltage: 48 V
  • The maximum output voltage: 56 V

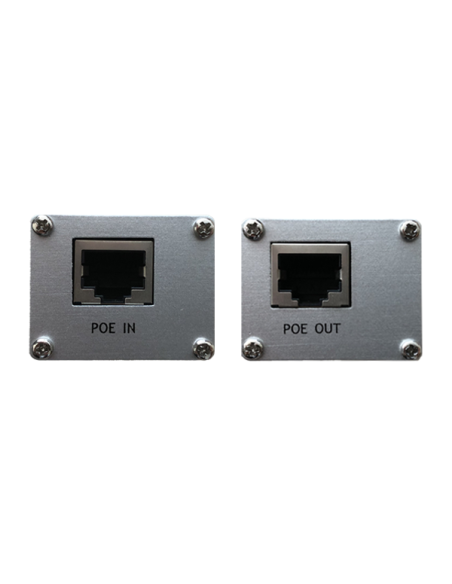

  • 10/100/1000Mbps Gigabit Ethernet: 2xRJ45（one is for input，one is for output）
  • Surge protection: Yes
  • Operating Temperature: -40 to +70 ºC
  • Operating Humidity Range: 5 to +95 (non-condensing) %
  • Storage Humidity Range: 0 to +90 (non-condensing) %
  • ROHS Compliance: YES

Product Details

Ethernet Ports
2xRJ45（one is for input，one is for output） 10/100/1000Mbps Gigabit Ethernet
Input Voltage
42~56
The maxim output power
56V
Surge Protection
Yes
Output Voltage
48V
Storage Humidity
0 to +90 (non-condensing) %
Operating Humidity
5 to +95 (non-condensing) %
Operating Temperature
-40 to +70 Celsius

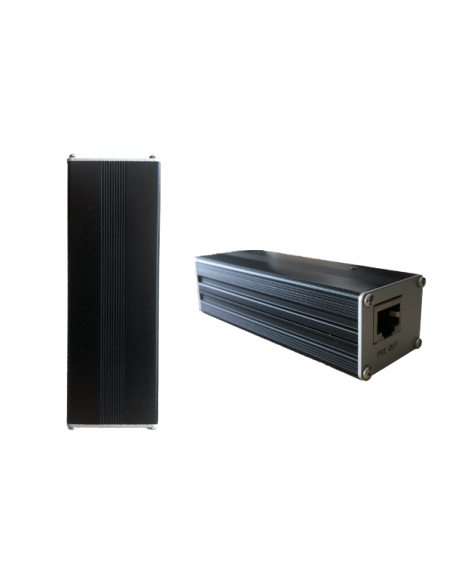

Dimension
100.7mm x 27.4mm ( L x W)
PD-25
3481724172438
PD-25
