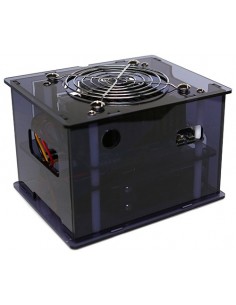

This “Case Type 3” is designed for the user who needs high bandwidth network with mid-range storages. Basically, this is the fanless design and the heated air from a processor or the storages can be blow out through the 92mm cooling fan holes on top of this enclosure. But you also can install a 92x92mm standard PC cooling fan (optional) at the hole if the decent power for the fan is supplied.

Supported storages:

On-board eMMC 5.1 module

On-board M.2 NVMe (NGFF-2280)

  • Up to 2 x 2.5” SATA HDD or SSD (Max height : 15mm)
  • “SATA Data and Power Cable” must be purchased
  • The disk drive mounting screws (M3x6mm) are included in the package.
  • The power and reset switches are accessible through the hole at the front
  • Optional power on/off switch (diameter 16mm) can be installed at the front
  • 128 (L) x 157 (W) x 106 (H) mm

 Package contents:

  • A. Rear panel
  • B. Left Panel
  • C. Right panel
  • D. 2.5” SATA HDD/SSD bracket
  • E. 2.5” SATA HDD/SSD bracket
  • F. Inner bracket
  • G. Bottom panel
  • H. Top panel
  • I. Front panel
  • J. 1 x 92mm Stainless Cooling Fan Grill
  • K. 4 x 40mm (F) PCB Supports
  • L. 4 x 40mm (M) PCB Supports
  • M. 4 x 15mm (M) PCB Supports
  • N. 4 x M5 Nuts
  • O. 4 x M5 Truss Head Bolts
  • P. 16 x 6mm M3 Truss Head Bolts
  • Q. 4 x Rubber Feet (Round / Clear)
