FW3160 - pfSense® CE Installed

Ships in 5~7 Business Days
US$345.90

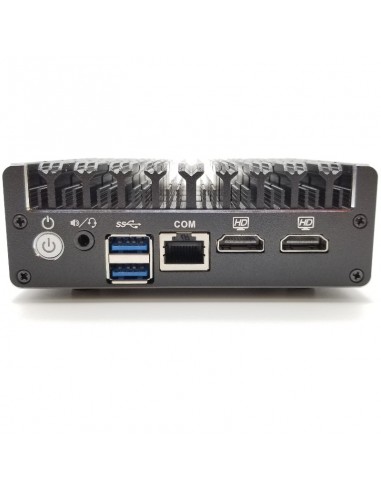

Enjoy the power of pfSense® ready FW3160 ultra compact x64 networking system built with Intel® Celeron J3160 processor with Intel® AES New Instructions capable.

Memory Size:
Memory+Storage :

Description

Based on the Intel® Celeron J3160 processor architecture, the processor improves CPU performance and efficiency in power consumption. Thanks to the specially optimized graphics base frequency 320MHz and Graphics Burst Frequency 700MHz, one machine which can act as firewall, router, desktop, display center solution and many many more. With intel built-in technology whic his Termal Monitoring, Secure Key, execute disable bit and Intel AES new instructions makes this system suitable for remote site deployments.

FW3160 is equipped with 4 Intel i210AT 1000 Mbps LAN Ports and Integrated with 2 HDMI Ports, also work as small form factor desktop.

Main Features

  •   Intel® Celeron J3160 Processor (4 Cores)
  •   Compact fanless design
  •   2 x HDMI Ports, 1 x Power Adapter included, 1 x Audio Jack
  •   4 x GbE Intel LAN ports, 2 x USB 3.0, 2 x antenna hole
  •   1 x Mini-PCIe slot for Wi-Fi/3G/4G/LTE, 1 x mSATA mini slot for storage
  •   1 x DDR3L-1600, non-ECC, max. capacity up to 8 GB
  •   1 x RJ45 Console Port (Console Cable not included)
  • Bottom Sticker with Serial number for inventory and Warranty purpose.
    *Customize Sticker with your Logo option is available. (As low as 1$ per sticker)
  •

Product Details

CPU
Intel Celeron J3160 (Quad Core, 1.6GHz, Turbo boost 2.24 GHz)
Max. RAM Support
8GB
Storage Capacity
1 x mSATA SSD
USB Compatibility
2 x USB3.0
Ethernet Ports
4 x Intel i210AT (100/1000)
LED
Power Switch, HDD Activity
Serial ports
Yes (Ethernet to DB9) (Not Included)
Display Output
2 x HDMI
Input Power
DC 12V
Button
1 Power Button
Expansion
2 x Mini-PCIe
Chipset
Intel Integrated Chipset
OS Support
pfSense, OPNSense, Untangle, Windows 7, Windows 10, Linux Kernel 2.6 or above
Operating System (OS)
pfSense® (CE)
Operating Humidity
5% ~ 95% Non-Condensing
Operating Temprature
0 ~ 40ºC
Color
Black
Security Acceleration
Intel AES-NI
PFFW3160416
3481734122874
PFFW3160416
