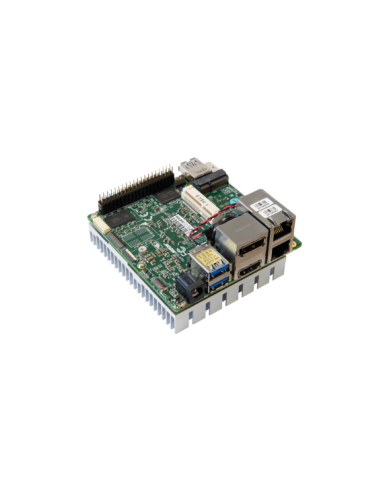

UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)
UP Squared Series (Intel® Celeron® N3350)

UP Squared Series (Intel® Celeron® N3350)

In Stock
US$214.65

UP Squared is the world’s fastest x86 pro maker board based on the latest Intel platform. The UP Squared Series is powered by Intel® Atom™ x5-E3940 and clocks up to 1.8GHz with only 4W SDP and 9.5W TDP. This Model is equipped with Intel® Atom™ x5-E3940, 2GB RAM and 32GB eMMC as internal storage.

Memory+Storage :

Ask a Quote

Description

Hardware overview

  • UP Squared Series with Intel® Celeron® N3350 with 2GB, 4GB Memory.
  • Intel® HD Graphics 500-N3350/E3940, Intel® HD Graphics 505-N4200/E3950
  • Support 2GB/4GB/8GB LPDDR4
  • Support 32GB/64GB/128GB eMMC
  • 40 Pin I/O connector
  • 60-pin EXHAT for embedded applications

Block Diagram

UP2 Block Diagram

Vertical Markets

Product Details

CPU
Intel® Celeron® N3350
Processor Cores
2
VPU
Optional via via mPCIe
System Memory
2GB
Storage Capacity
32GB
Graphics Processing Unit
Intel® HD Graphics 500-N3350/E3940
Intel® HD Graphics 505-N4200/E3950
Ethernet Ports
2 x GbLAN (Realtek RTL8111G-CG)
USB Ports
1 x USB 3.0 OTG Micro B
2 x USB2.0 pin header
3 x UB3.0 Type A
UART
2 x UART (Tx/Rx) debug port (pin header)
Power
Power Requirement: 5V DC-in @ 6A 5.5/2.1mm jack
Power consumption (typical): 18W
Power supply type: AT/ATX (default AT mode)
RTC Battery
Yes
BIOS
UEFI
PXE
Yes
Watchdog
Yes
Expansion
1 x 60-pin EXHAT
1 x M.2 2230 E key
1 x mPCIe
MTBF
173,446 hours
Cooling
fanless
Wi-Fi
WiFi 5/6: optional (via. M.2 2230 )
Bluetooth
Bluetooth: optional (via. M.2 2230 )
OS Support
Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
HDMI
1 (HDMI 1.4b)
Longevity
2031
WOL
Yes
Operating Humidity
0% ~ 90% relative humidity, non-condensing
Operating Temprature
32°F ~ 140°F (0°C ~ 60°C)
Storage Temprature
-40°F ~ 176°F (-40°C ~ 80°C)
Dimension
3.37″ x 3.54″ (90mm x 91mm)
Certificate
CE/FCC Class A, RoHS compliant
Manufacturer Warranty
2 years
UPS-APLC2F-A20-0232
UPS-APLC2F-A20-0232
