IoT Quad-Core 64-bit Main Board - RK3308Y

IoT Quad-Core 64-bit Main Board - RK3308Y

Name: IoT Quad-Core 64-bit Main Board - RK3308Y
Brand: Firefly
SKU: ROC-RK3308Y
Price: 48.1 USD
Availability: InStock

Accepting Orders

US$48.10

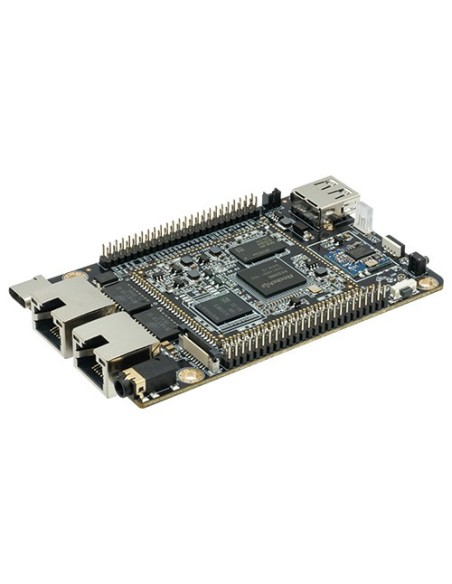

The IoT Quad-Core 64-bit Main Board - RK3308Y, ROC-RK3308Y-CC Plus, is a powerful micro IoT main board suitable for intelligent speech recognition, human-machine interface, industrial control, and smart robotics applications. It integrates high-performance codec and hardware VAD, and can be configured with a far-field microphone array board.

Memory+Storage :

Ask a Quote

Description

The IoT Quad-Core 64-bit Main Board - RK3308Y, ROC-RK3308Y-CC Plus, is a versatile and powerful micro IoT main board that can be used in a variety of applications. The device is built around the RK3308 core board and backplane, which offers a range of advanced features and capabilities.

One of the key features of the RK3308Y is its integration of a high-performance codec and hardware VAD. This enables the device to provide exceptional audio quality, making it ideal for applications that require voice recognition and audio processing.

Additionally, the device can be configured with a far-field microphone array board, which further enhances its audio capabilities. This makes it ideal for use in smart speakers, voice assistants, and other applications that require far-field voice recognition.

The RK3308Y also supports a range of IoT systems and services, making it suitable for a wide range of applications. This includes intelligent speech recognition, human-machine interface, industrial control, and smart robotics, among others.

Overall, the RK3308Y is a powerful and versatile micro IoT main board that offers a range of advanced features and capabilities. Its combination of high-performance audio, advanced IoT capabilities, and support for a range of applications makes it an excellent choice for developers and designers looking to create innovative and powerful IoT solutions.

RK3308Y - 1 RK3308Y-5 RK3308Y-6 RK3308Y-7 RK3308Y-8 RK3308Y-9 RK3308Y-10

Product Details

SoC: RK3308 (28nm process)
CPU: Quad-core 64-bit ARM Cortex-A35, frequency up to 1.3GHz
RAM: 256M DDR3 (128MB ~ 512MB)
Storage Capacity: 4GB eMMC : support 4G/8G/16G/32G/64G/128G NandFlash : support 128MB/256MB
Ethernet Ports: 10M/100M bps Ethernet (RJ45 interface)
Audio Output: With built-in audio CODEC, including ADC x 6
USB Ports: USB 2.0 × 1、USB2.0 × 1（OTG）
Display Output: Support RGB / MCU display (up to 720P)
OS Support: Support multiple operating systems, such as Buildroot, Linux + MiniGUI/QT, ROS(Robot Operating System)
Board Size: 45mm × 40.2 mm
Wireless: Provide SDIO 3.0 signal, support 2.4GHz WiFi, support 802.11/b/g/n protocol Support Bluetooth 4.2
Interface Type: Interface (136Pin, 1.2mm pitch)

Reference ROC-RK3308Y

ean13 3481724162392

mpn ROC-RK3308Y
