CSR1-N10R3588S Cluster Server R1

Name: CSR1-N10R3588S Cluster Server R1
Brand: Firefly
SKU: CSR1-N10R3588S
Price: 7000 USD
Availability: InStock

Accepting Orders

US$7,000.00

Up to 10 RK3588S 8-core 64-bit computing units can be configured, with each core frequency up to 2.4GHz, 6TOPS computing power and 80-core edge computing power. This server is widely applied to private domain traffic marketing, cross-border e-commerce promotion for driving traffic, short-form video matrix marketing and live stream simulcasting. A single server can virtualize up to 100 cloud mobile phones.

Ask a Quote

Description

CSR1-N10R3588S Cluster Server R1 - CANADA

Category	Specification
Basic Specifications

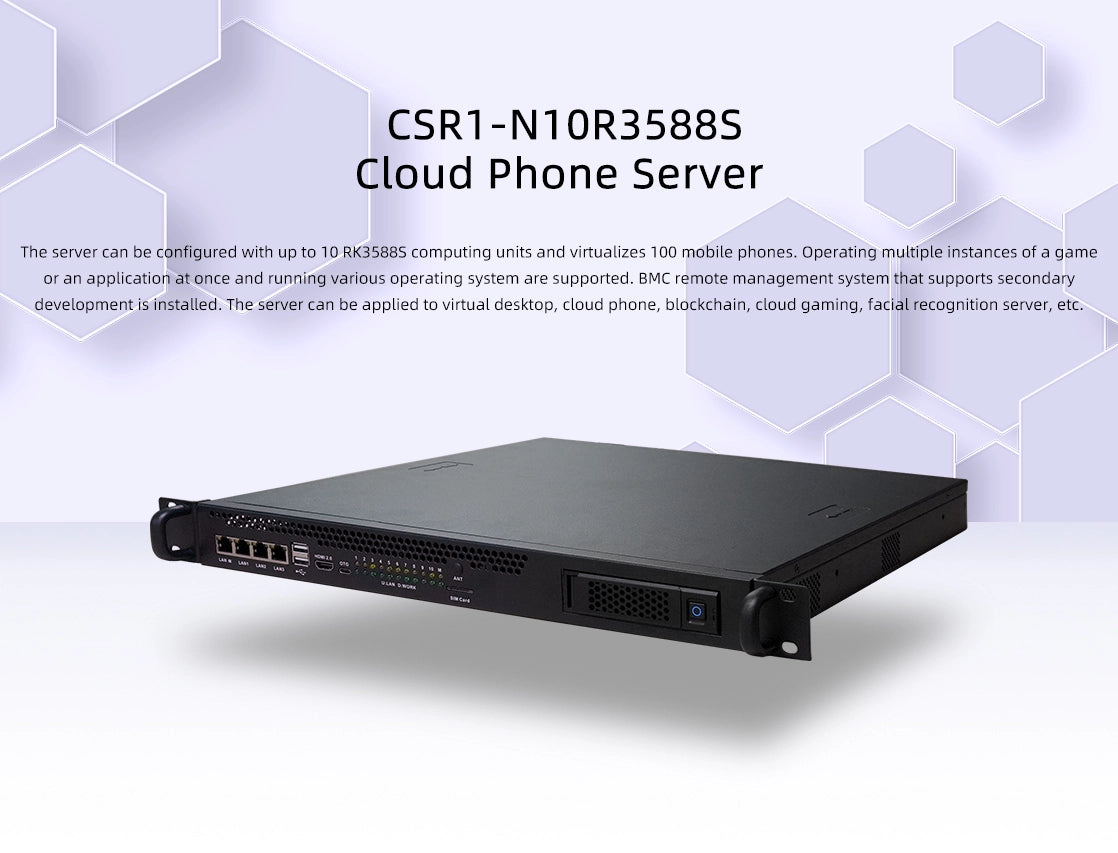

Name	1U cloud phone server based on RK3588S
Model	CSR1-N10R3588S
Architecture	ARM architecture
OS	Supports Android, Ubuntu, and Linux
Application Scenario	Cloud phone, virtual desktop, edge computing, cloud gaming, cloud storage, blockchain, multi-channel video encoding and decoding, etc.
Compute Module
Modules	11 compute modules
Total Cores	11 compute modules (A total of 86 ARM cores)
Core Board	RK3588S core board (Core-3588S JD4): 8-core 64-bit processor (4×Cortex-A76 + 4×Cortex-A55), up to 2.4GHz, NPU up to 6.0 TopsRK3399 (AI) core board (Core-3399-JD4): 6-core 64-bit processor (A72×2 + A53×4), up to 1.8GHz, for BMC management
RAM	16GB LPDDR4 (each core board Core-3588S JD4)
Storage	128GB eMMC internal memory (each core board Core-3588S JD4)3.5” hard drive can be configured with one SATA/SSD (supports hot swapping)
BMC Module
BMC	Integrated BMC management system provides web-based management interface; supports secondary development
Network	1GE RJ45 network ports ×4 (one main core board network port and three ordinary network ports)4G/LTE/5G network (optional)
Display	HDMI 2.0, up to 4K@60Hz (main processor core board display)
USB	USB2.0 HOST ×2Type-C ×1 (for processor core board debugging)
Indicator Light	11 network status indicator lights (Yellow)11 working status indicator lights (Green)
Fan Module
Fan	5 high-speed cooling fans
Power Module
Power	300W AC power (input: 100V AC ~ 240V AC)
Appearance & Environment

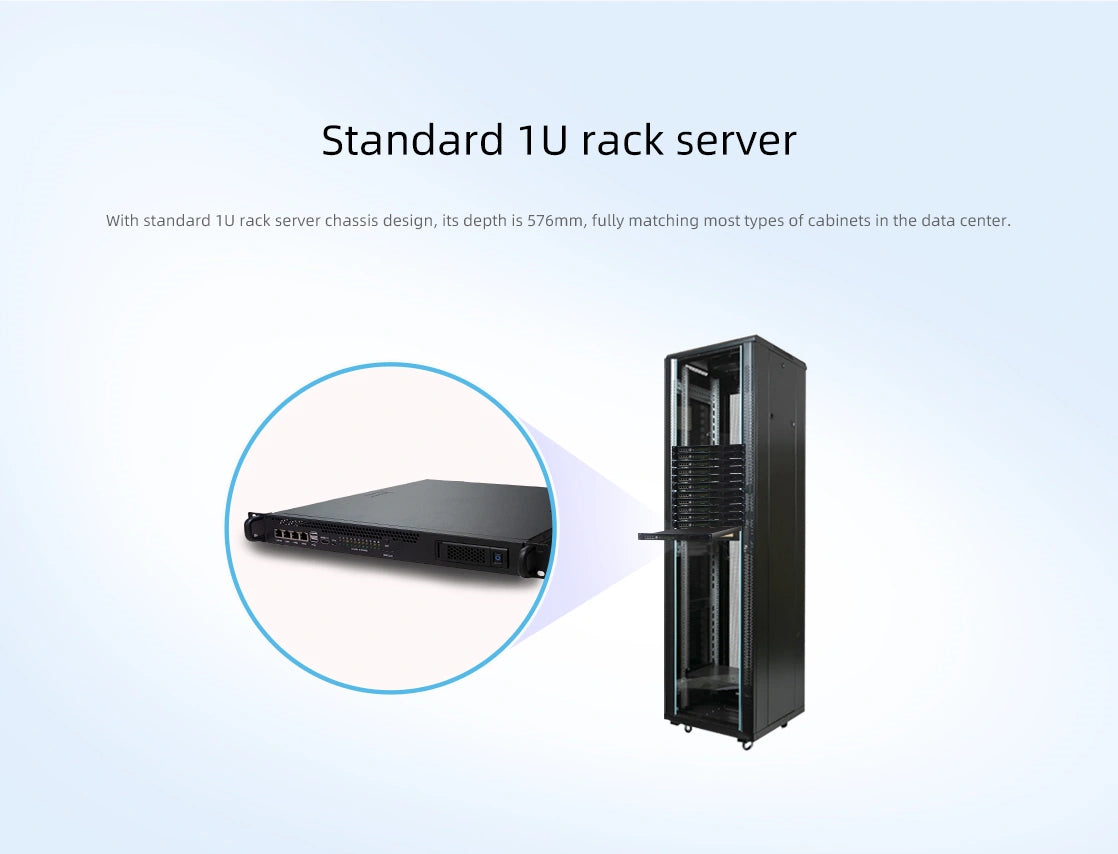

Dimensions	Standard 1U rack-mounted server: 490mm x 390mm x 44.4mm
Operating Temperature	0°C – 50°C
Operating Humidity	8% RH – 95% RH

Product Details

Reference CSR1-N10R3588S

Attachments

CSR1-N10R3588S Datasheet

Download (2.11MB)
