List of products by brand PCEngines

PCEngines Black Indoor Enclosure are designed for APU6 Boards. Consisting of an SFP Port, 2 x USB ports and 3 ethernet ports.

It is a high-performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 4 Intel i211AT & 4GB  DDR3-1333 DRAM.

*Heat Spreader Kit for APU Board is included

APU4D4 Pre-Installed Systems

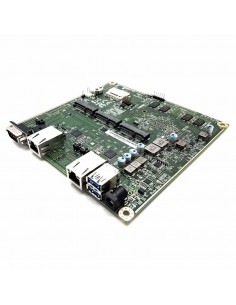

The APU2C0 Platform is the alternate next generation of low-cost APU series (APU1D) from PC Engines. The PC Engines APU System Board is a Single Board Computer (SBC) which can be used for a variety of applications like LAN Router, Firewalls, Load Balancer, VPN-Router, Thin Clients, compact Server, NAS etc.

This 16GB mSATA SSD Module (Updated Firmware) is perfect for use with latest APU board. Works well for Windows XP, Windows 7, Linux and MacOS10.X.

The PCEngines APU4D4 Boards Enclosures are durable and professional enclosures made of anodized or painted aluminum. Available in black, red, and blue, with custom colors available for volume orders. Includes cutouts for LEDs, switches, LAN ports, and SMA connectors, and comes with mounting options and screws for easy installation. RoHS compliant and customizable with silk screening and paint colors.

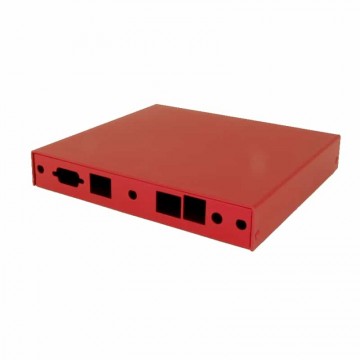

PCEngines Indoor Red Enclosure is designed for Following boards.

ALIX2D13, APU1, APU2 and APU3 models.

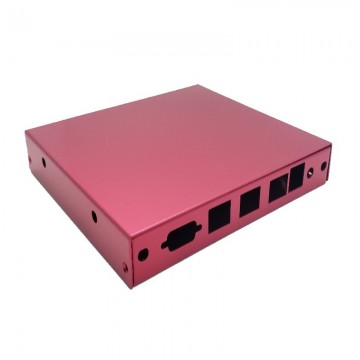

PCEngines Indoor Red Enclosure for APU & ALIX2D13 is designed for Following boards

APU Series

It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 3 Intel i211AT & DDR3-1333 DRAM with optimized for 3G/LTE Modems.

*Heat Spreader Kit for APU Board is included

PCEngines Indoor Black Enclosure designed for ALIX2D13 and APU1, APU2 and APU3 Series boards.

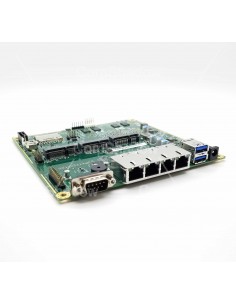

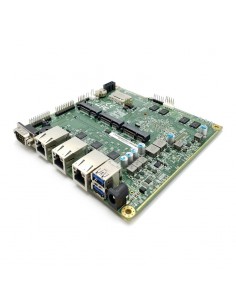

The APU4D4 System Board is a highly capable networking hardware solution by PC Engines. Featuring a quad-core AMD GX-412TC processor, four Gigabit Ethernet ports, a miniPCIe socket, and open-source firmware, it is an ideal low-power networking device for custom solutions, IoT, and home automation.

*Heat Spreader Kit for APU Board is included

APU4D4 Pre-Installed Systems

The APU2E4 Platform is the alternate next generation of low-cost APU series (APU1D4) from PCEngines.

*Heat Spreader Kit for APU Board is included

Enclosure designed for ALIX.2* boards and APU2C0. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.

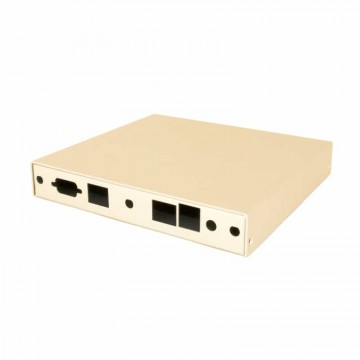

Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.

PC Engines IDE Straight Conn to CompactFlash Adapter (IDE Straight Conn) is a perfect replacement for PC hard disk drives, floppy power connector and 40 pin IDE connector.

Enclosure designed for ALIX.2* boards. Cutouts for 3 LEDs and 1 switch in front, cutouts for DB9, 2 LAN, 3 or 2 SMA connectors, DC jack in back. Enclosure made of anodized or painted aluminum. Dimensions 168 mm wide x 157 mm deep x 30 mm high. RoHS compliant.

ALIX 2D13 is a miniITX form factor system board optimized for thin clients, industrial user, wireless access points, internal and external mesh networks, firewalls and embedded applications. (3 LAN / 1 mini PCI / LX800 / 256 MB / USB / Battery)

Aluminum Enclosure designed for WRAP.2* / ALIX.3* boards. Cutouts for 1 LAN, DC jack, 2 SMA, DB9, 3 LEDs in back.

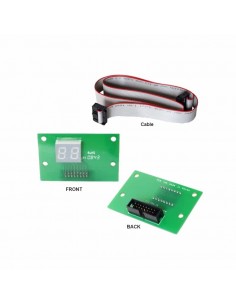

PC Engines Remote Display Kit for POST4D connects with POST4D PCI POST card. Its 20 inch cable allows display to be placed in a more suitable location.

PC Engines ALIX 2D2 System Board 2 LAN is a low-cost minilTX form factor system board optimized for high performance. This board is a perfect replacement for the WRAP series of system boards.

PC Engines N Female Protective Cap is watertight enough for covering unused ports of N female connectors.   Suitable for use with PIGNF6. Does not have a rubber seal.

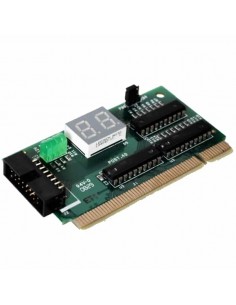

PC Engines PCI Post Code Display - Motherboard Diagnostic Display is used to write diagnostic codes on PC BOIS. Dual digit LED display indicates codes and power supply rails.

Power Adapter for FW2600

The only way to fix your ALIX board corrupted BIOS, procedure is defined as follows:

PC Engines MMCX to N-Female Bulkhead Pigtail is RoHS certified. Engineered for peak performance upto 6GHz operations and usable for any mini-PCI card with MMCX connector.

SMA Female pigtails are commonly used for 3G/4G/LTE Antenna ports

• Mikrotik RouterOS is ultra picky about CF controllers, not recommended.

• Please note that these cards support DMA, must disable DMA when used on WRAP.1C / .1D / .2C   boards.

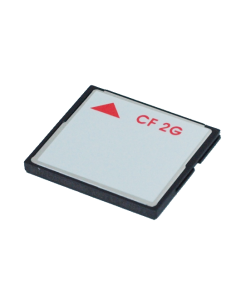

 4GB SLC flash offers higher endurance (100K vs. 10K erase cycles) and better read performance.

Mikrotik RouterOS is ultra picky about CF controllers, not recommended.

Please note that these cards support DMA, must disable DMA when used on WRAP.1C / .1D / .2C   boards.

Please note that these cards support DMA, must disable DMA when used on WRAP.1C / .1D / .2C   boards.

Antenna for 5 GHz band, 5 dBi nominal gain. Reverse SMA connector.

5dBi Rubber Duck RP-SMA antenna to be used with MMCXSMA and PIGSMA cables and ensures less loss connectivity.

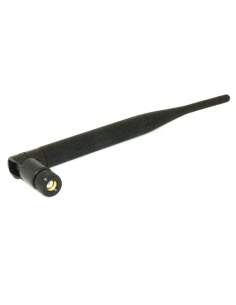

Antenna for dual band (2.4 GHz and 5 GHz), 5 dBi nominal gain. Reverse SMA connector.

PC Engines Passive POE Injector provides power and data to Power Over Ethernet compatible devices. It is recommended to use 18V power adapter to minimize cable losses. This POE is compatible with ALIX board or any POE enabled device.

APU2E5 is the exact same as APU2E4 except for the configuration of NIC chips. APU2E4 has i210-AT. APU2E5 has i211-AT. Performance is pretty much similar.

Note: Can connect 2x WiFi Cards

*Heat Spreader Kit for APU Board is included

APU6B4 is a high performing AMD Embedded G series GX-412TC based motherboard and also comes with an SFP port, 4 GB DDR3-1333 DRAM and more.

This Omnidirectional Outdoor Antenna is ideal for 2.4 GHz band with a nominal gain of 5 dBi.

2.4 GHz outdoor Omni Directional antenna is a versatile and economical choice for engineers and technicians. This antenna provides the best performance with minimum loss.

The cable has enough cross-links between the signals to transmit and receive data with accuracy. Moreover, this is used mostly to transfer files from one computer to another.Null Modem Cable (DB9F - DB9F) is a cross linked cable.

Silicon Labs CP2104 controller, which has proven reliable in our experience. Unlike competitors, our adapter has the DB9F female connector with null-modem pin-out to allow for direct connection to Alix/APU system boards without a DB9 null modem cable

heat spreader placement fixture for apu2 / apu3 boards.

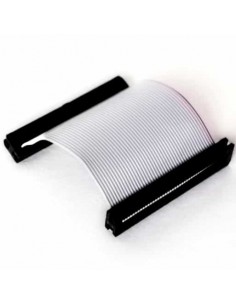

44-Pin IDE Female to Female Cable is short, but very efficient, and is easy to enclose.

This is a 44 pin cable with 2 mm pitch connectors for 2.5" HDDs. Shortened version with opposed connectors for easier mounting inside case1c / case1d enclosures

Mouse Keyboard I/O Splitter Cable Adapter is suitable for laptops, PCs or even ALIX 1C boards.

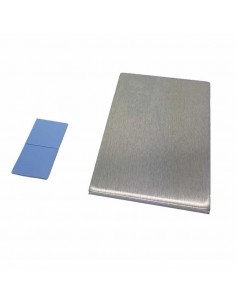

The heat spreader kit is included with apu boards, no need to order separately unless you have to migrate a board to a new enclosure.

Winstron DCMA82 miniPCI wireless network adapter offers high output power of 400mW, extending the range of embedded devices much further. Combined with excellent receiver sensitivity, Winstron DCMA82-26dBm is the miniPCI of choice for long distance links, or those where signal levels are reduced due to minor obstructions such as tress or buildings.

The LPC module will override the on-board flash, which could be blank or corrupted on PCEngines APU Boards.

DNMA-92 is an 802.11n a/b/g wifi 2x2 mini-PCI module designed specifically for directly dual-band (2.4/5GHz) integration on DSL motherboards, easing carrier manufacturer’s design cycles to accelerate time-to-market that demand robust link quality and maximum price/performance ratio.
