This APU2E4 combo kit enables you to use it for more than 40 different applications in the field of embedded devices, like broadband management, security applications (firewalls) like pfsense and routing. This kit can also be deployed for multimedia applications as well as WLAN access points or VPN-Gateways.

Combo Kit Includes:

1 x Motherboard (APU2E4)
1 x Black Enclosure (3 LAN, USB and 2 Antenna Cutouts)

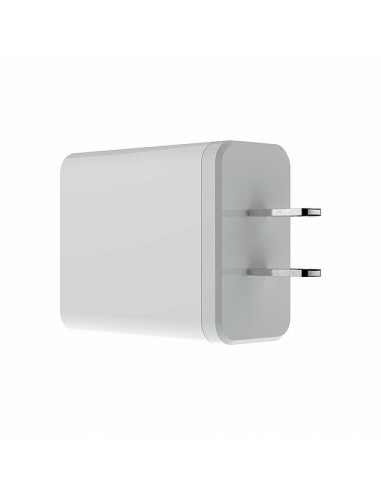

1 x Power Adapter (12v 2A)

Does not Include:

OS: No OS installed
Enclosure Type: Labelled (You can select from Options tab)
Storage: SD Card or mSATA (Select appropriate storage card from options tab)
Console Cable: Null modem cable to connect to the serial console
Ethernet Cable: Cat 5 ethernet cables to connect to your network

A2E4BK

Data sheet

Processor (CPU)
AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core, shared 2MB L2 cache.
DRAM
4 GByte DDR3-1333 (not expandable)
I/O
DB9 serial port, 2 USB 3.0 external + + 2 USB 2.0 internal, three front panel LEDs, pushbutton
Board Size
6 x 6" (152.4 x 152.4 mm) - same as APU1D, ALIX2D13
Storage
None (Select from Options)
Storage Controller
mSATA, SD Card
Enclosure Color
Black
Enclosure Cutouts
3 x Ethernet, 1 x USB, 2 x SMA, 3 x LED, 1 x Reset button
Ethernet Ports
3 Gigabit Ethernet channels (Intel i210AT)
Package Includes
System Board (APU2E4), Black Enclsoure, Power Adapter, ALU 3mm Heat Spreader, Thermal Pads
Firmware
CoreBoot Open Source System BIOS with support for iPXE and USB boot
Expansion
2 miniPCI express (one with SIM socket), LPC bus, GPIO header, I2C bus, COM2 (3.3V RXD / TXD)
Power Adapter
DC Output: 12v 2A with US Plug
Power
12V DC
Board Category
APU2
Return Warranty
Standard 30 Days

Download

APU2 Schematics

Download (752.69k)

AssemblyGuide

Download (315.88k)
