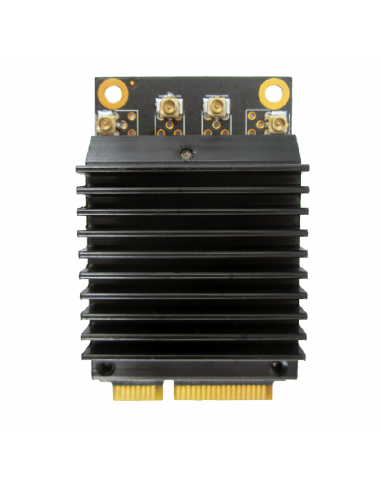

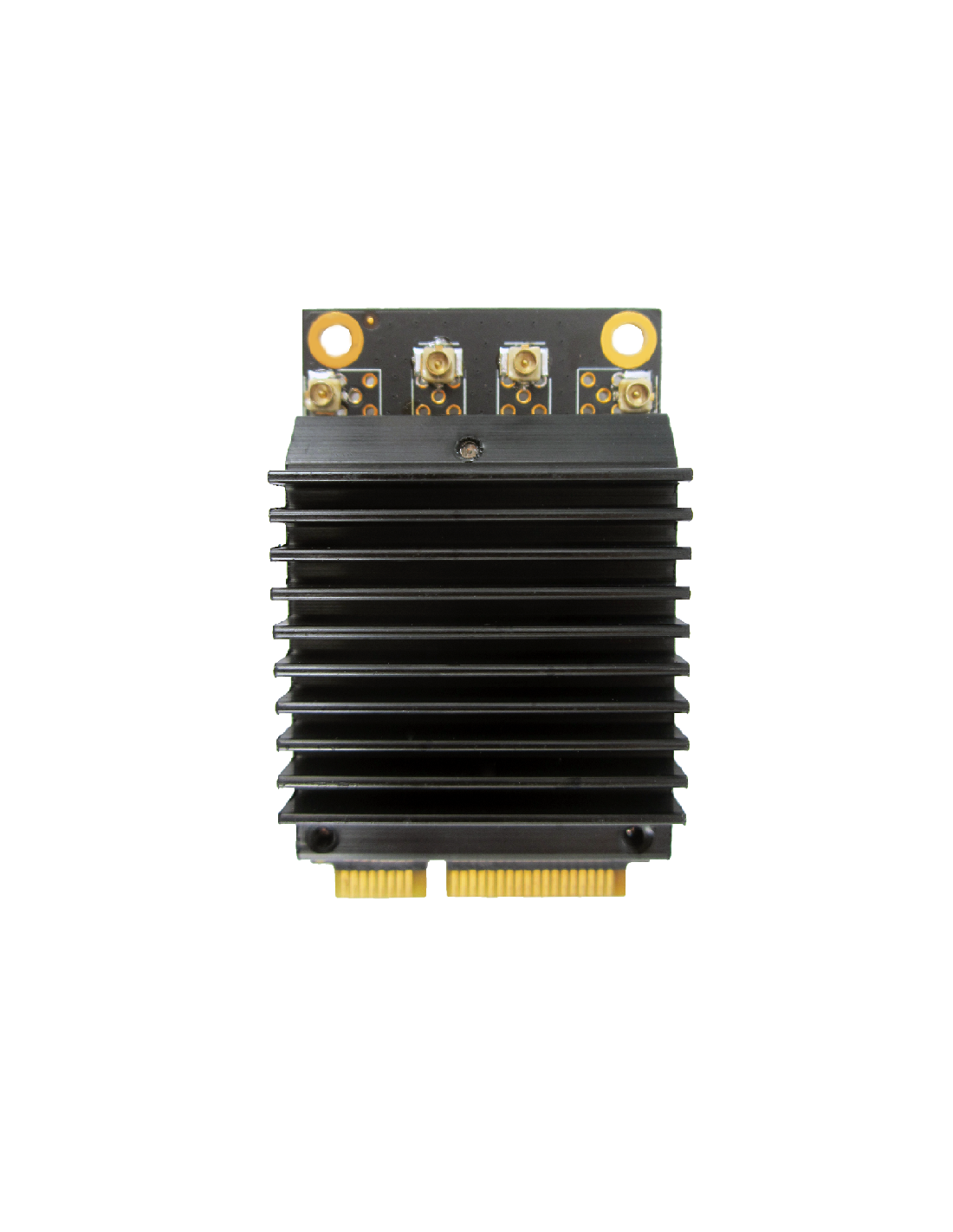

WLE1216V2-20-I Radio Card

Name: WLE1216V2-20-I Radio Card
Brand: Compex
SKU: WLE1216V2-20-I
Price: 118.74 USD
Availability: PreOrder

Contact Sales (Lead Time: 12-16 weeks)

US$118.74

Qualcomm Atheros QCA9994

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• Single Band 2.4GHz 4x4 WiFi 5 (802.11ac Wave 1)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports Spatial Multiplexing, Cyclic-Delay Diversity (CDD),Low-Density Parity Check (LDPC) Codes, Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards

Ships from Canada.

Description

Qualcomm Atheros QCA9994

Product Details

Power Adapter: 3.3V
Chipset: Qualcomm Atheros QCA9994 ‘Cascade’ Series
ESD Sensitivity: Class 1B
Channel Spectrum Widths for WLAN: Supports 20/40MHz at 2.4GHz
Modulation: CCK, OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
OS Support: Supported by CompexWRT (See Datasheet for more info)
Depth: 12.9mm
Width: 29.9mm
Height: 50.8mm
Certificate: FCC, CE Certified, REACH and RoHS Compliance
System Memory: 256Kbit serial I²C bus EEPROM
Reference Design: Qualcomm Atheros CUS260

Reference WLE1216V2-20-I

Attachments

WLE Catalog

Download (787.91KB)

WLE1216V2-20-I Datasheet

Download (565.96KB)

WLE1216V2-20-I Hardware Guide

Download (213.65KB)
