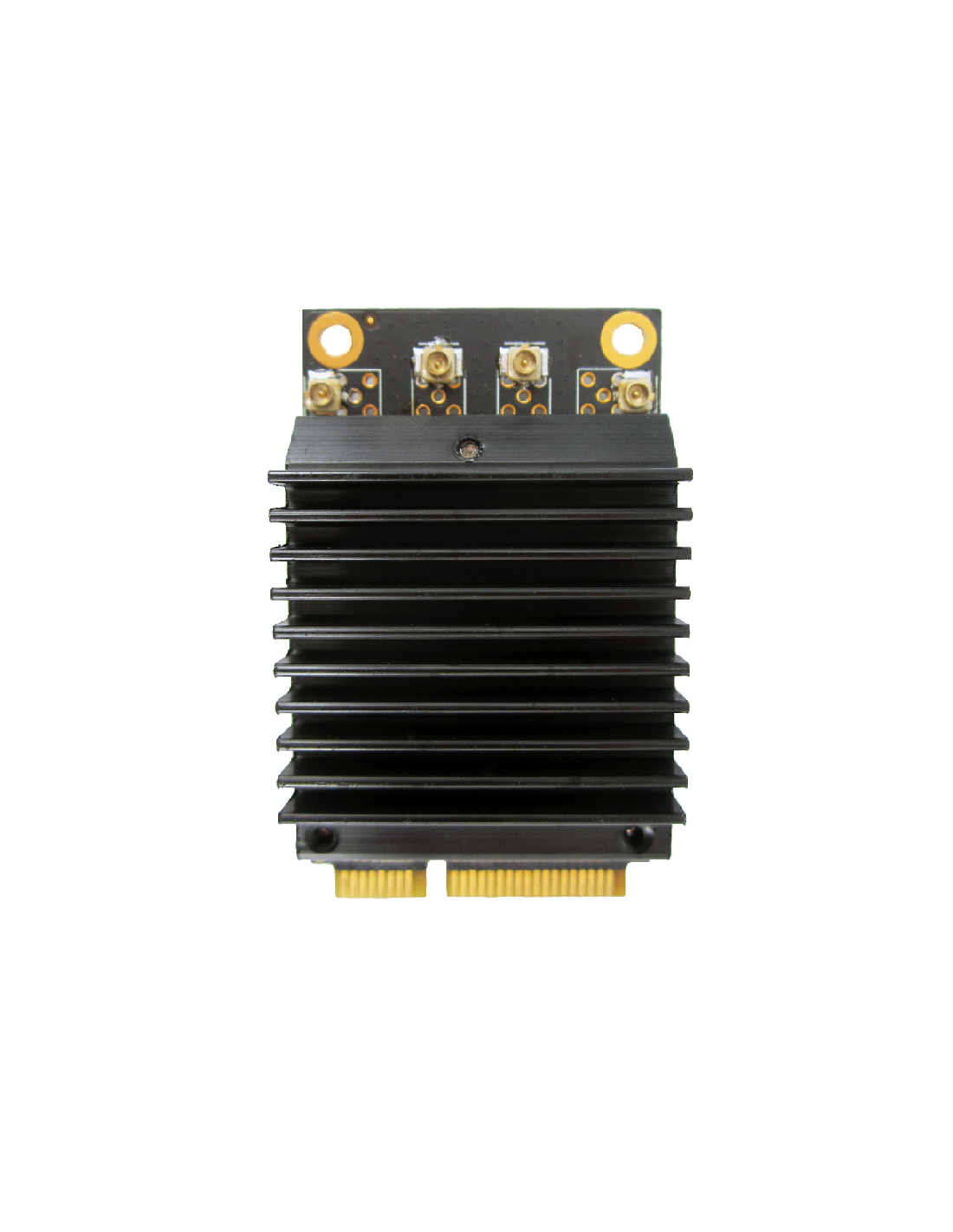

WLE1216VX-I Radio Card

Name: WLE1216VX-I Radio Card
Brand: Compex
SKU: WLE1216VX-I
Price: 118.06 USD
Availability: PreOrder

Lead Time: 60weeks

US$118.06

Qualcomm Atheros QCA9994

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• 5GHz, 4x4 MU-MIMO OFDM Technology, up to 1733Mbps physical data rate
• Dual Band 2.4/5GHz 4x4 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
• Supports Dynamic Frequency Selection (DFS)

Ships from Canada.

Description

Qualcomm Atheros QCA9994

Product Details

Host Interface: MiniPCIe interface with PCIe 2.0
Operating Voltage: 3.3V
Power Consumption: 9W (Max)
Chipset: Qualcomm Atheros QCA9994 ‘Cascade’ Series
Channel Spectrum Widths for WLAN: Supports 20/40MHz at 2.4GHz, Support 20/40/80/80+80MHz at 5GHz
Wireless Standard: 2.4GHz 802.11b/g/n/ac, max 20dBm per chain
Recommended Software: CompexWRT or OpenWRT/ LEDE
Depth: 12.9mm
Width: 29.9mm
Height: 50.8mm
Reference Design: Qualcomm Atheros CAS03

Reference WLE1216VX-I

Attachments

WLE Catalog

Download (787.91KB)

WLE1216VX-I Datasheet

Download (643.76KB)

WLE1216VX-I Hardware Guide

Download (216.64KB)
