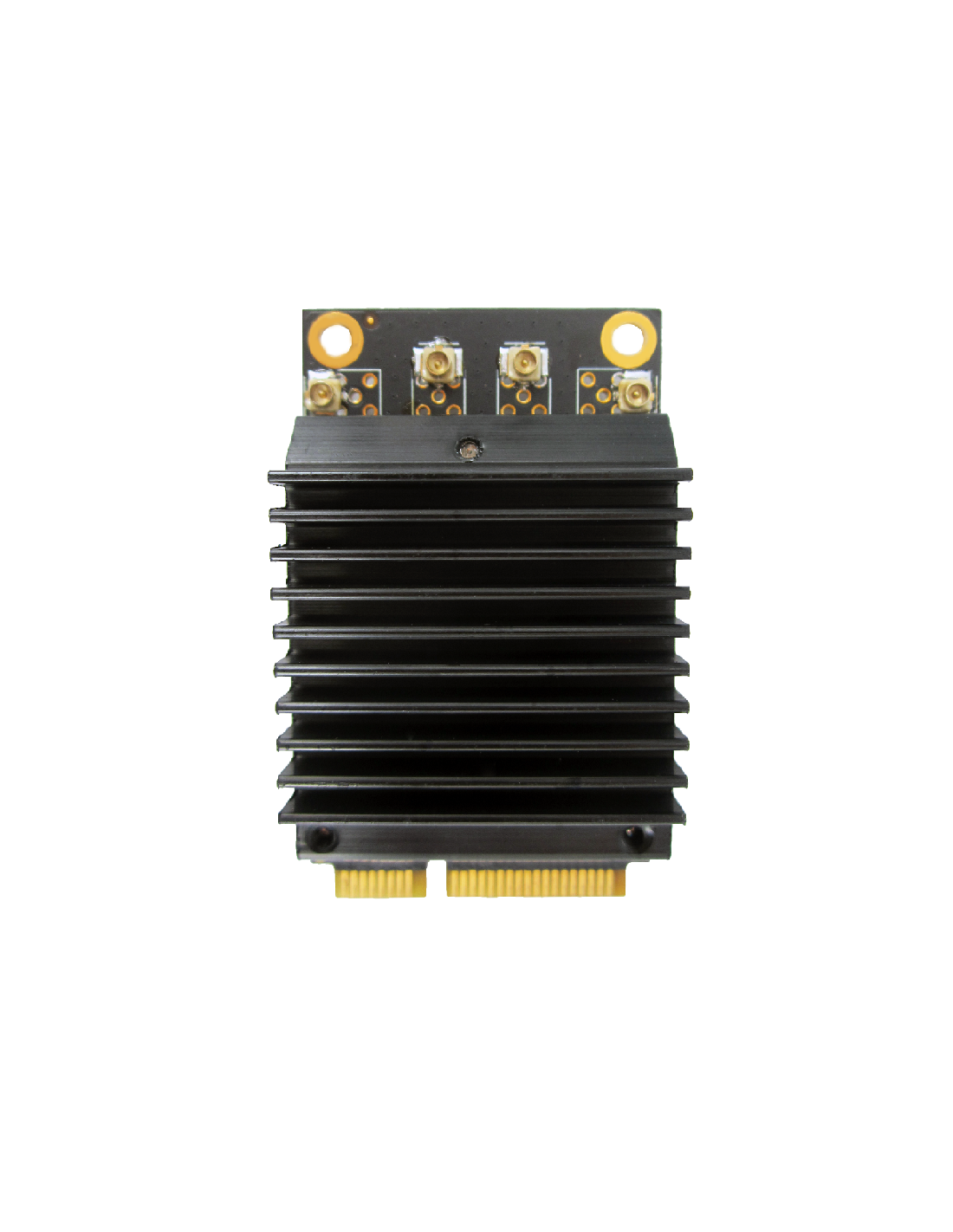

WLE1216VX Radio Card

Name: WLE1216VX Radio Card
Brand: Compex
SKU: WLE1216VX
Price: 98.61 USD
Availability: OutOfStock

Out of Stock

US$98.61

Qualcomm Atheros QCA9984

• 2.4GHz, 4x4 MU-MIMO OFDM Technology, up to 800Mbps physical data rate
• 5GHz, 4x4 MU-MIMO OFDM Technology, up to 1733Mbps physical data rate
• Dual Band 2.4/5GHz 4x4 WiFi 5 (802.11ac Wave 2)
• MiniPCIe interface with PCIe 2.0
• Heat sink allows free air operation
• Supports IEEE 802.11d, e, h, i, j, k, r, u, v time stamp, w, and z standards
• Supports Dynamic Frequency Selection (DFS)

Ships from Canada.

Description

Qualcomm Atheros QCA9984

Product Details

Host Interface: MiniPCIe interface with PCIe 2.0
Power Consumption: 9W Max (Board Only)
Modulation: CCK, OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Depth: 12.9mm
Width: 29.9mm
Height: 50.8mm
Certificate: REACH and RoHS Compliance
Operating Humidity: Operating: 5% to 95%, Storage: Max. 90%
Operating Temprature: Operating: -20ºC to 70ºC, Storage: -40ºC to 90ºC
System Memory: 256Kbit serial I²C bus EEPROM

Reference WLE1216VX

Attachments

WLE Catalog

Download (787.91KB)

WLE1216VX Radio Card Datasheet

Download (643.21KB)

WLE1216VX Hardware Guide

Download (216.64KB)
