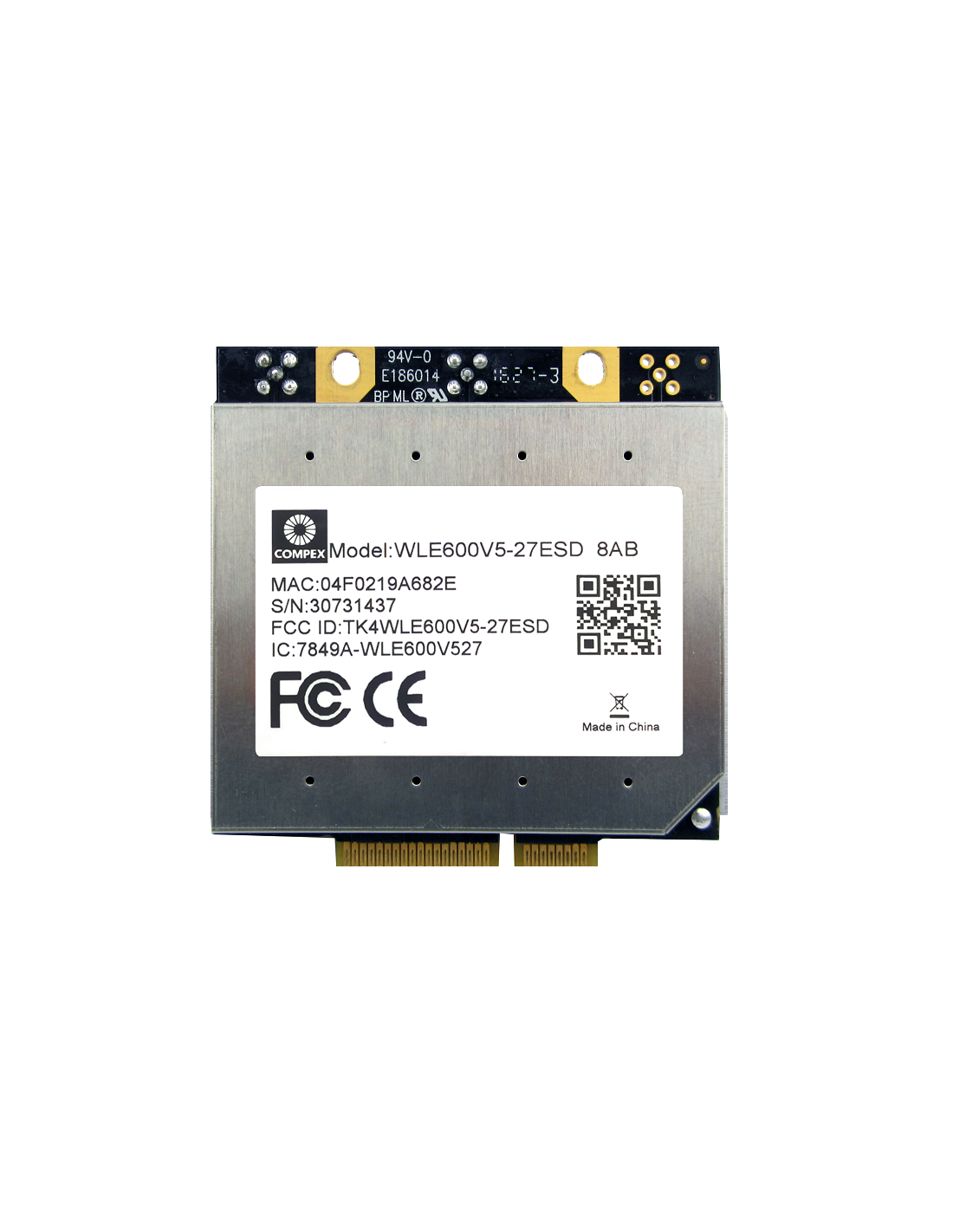

WLE600V5-27ESD Radio Card

Name: WLE600V5-27ESD Radio Card
Brand: Compex
SKU: WLE600V5-27ESD
Price: 55.79 USD
Availability: InStock

Accepting Orders

US$55.79

Qualcomm Atheros QCA9882

• 5GHz, 2x2 MIMO OFDM Technology, up to 867Mbps physical data rate

• Single Band 5GHz 2x2 WiFi 5 (802.11ac Wave 1)

• MiniPCIe interface with PCIe 1.2

• IEEE 802.11ac compliant & backward compatible with 802.11a/n

Manufacturer's Lead Time: 60weeks

Ships from Canada.

Description

Qualcomm Atheros QCA9882

• 5GHz, 2x2 MIMO OFDM Technology, up to 867Mbps physical data rate

• Single Band 5GHz 2x2 WiFi 5 (802.11ac Wave 1)

• MiniPCIe interface with PCIe 1.2

• IEEE 802.11ac compliant & backward compatible with 802.11a/n

Manufacturer's Lead Time: 60weeks

Product Details

Reference Design: Qualcomm Atheros CUS223
Channel Spectrum Widths for WLAN: Supports 20/40/80MHz at 5GHz
Frequency Range: 5.150~5.825GHz
Host Interface: MiniPCIe interface with PCIe 1.2
OS Support: Supported by either CompexWRT (See Datasheet for more info)
Modulation: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Operating Humidity: Operating: 5% to 95%, Storage: Max. 90%
Operating Temprature: Operating: -20°C to 70°C with normal heatsink, -40°C to 85°C with large heatsink
Certificate: CE, FCC, IC, REACH and RoHS Compliance
Chipset: Qualcomm Atheros QCA9882 ‘Peregrine’ Series

Reference WLE600V5-27ESD

Attachments

WLE600V5-27ESD Datasheet

Download (993.93KB)

WLE600V5-27ESD Hardware Guide

Download (578.97KB)
