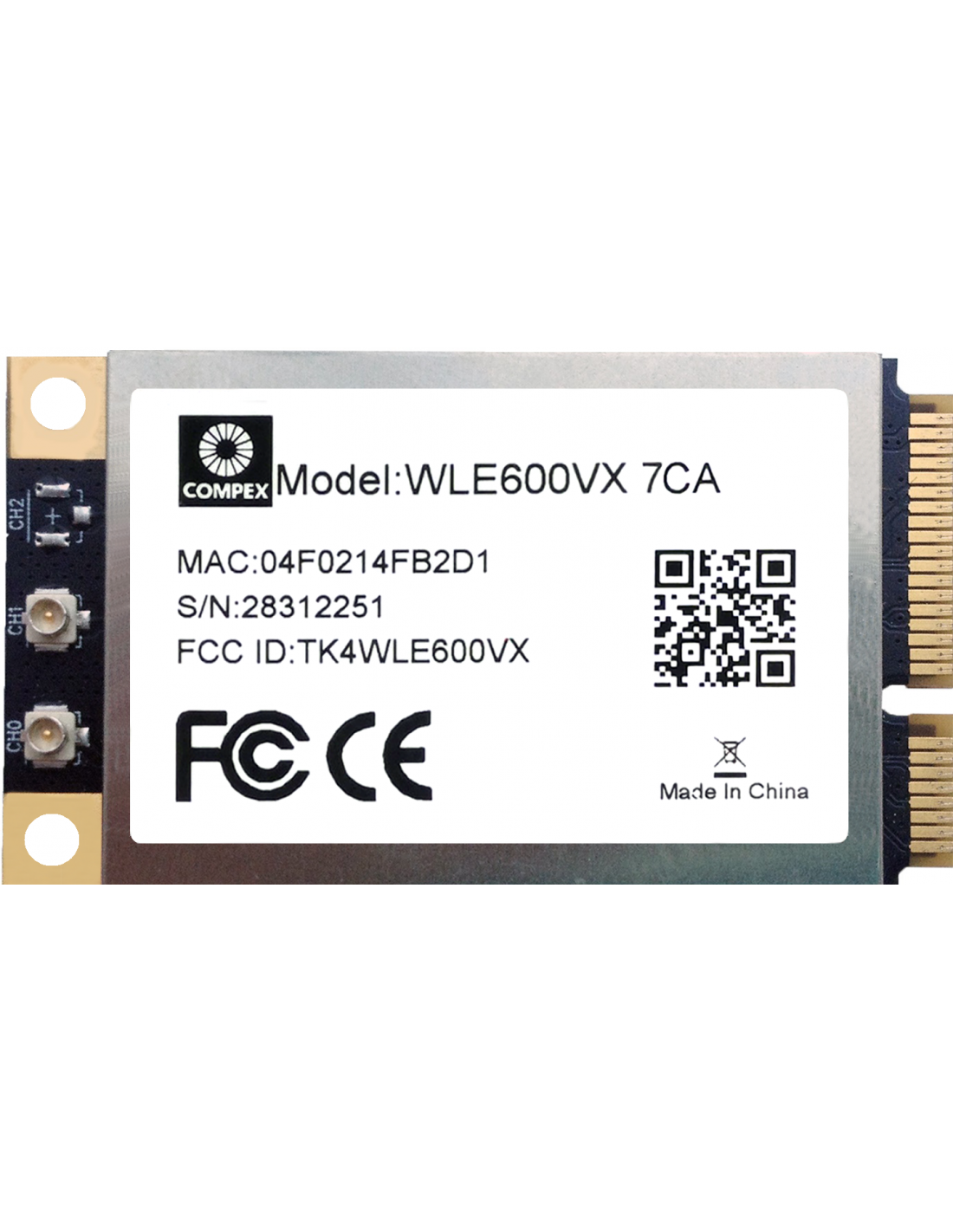

WLE600VX-I
  • New
WLE600VXI

Data sheet

ESD Sensitivity
Class 1C
Reference Design
Qualcomm Atheros XB140
Chipset
Qualcomm Atheros QCA9892 ‘Peregrine’ Series
Operating Voltage
3.3V
Channel Spectrum Widths for WLAN
Supports 20/40MHz at 2.4GHz, Supports 20/40/80MHz at 5GHz
Frequency Range
2.412~2.472GHz, 4.920~5.825GHz, selectable dual band
Host Interface
MiniPCIe interface with PCIe 1.2
OS Support
Supported by CompexWRT (See Datasheet for more info)
Wireless Standard
See Datasheet
Modulation
OFDM: BPSK, QPSK, DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Operating Humidity
Operating: 5% to 95%, Storage: Max. 90% (Non-Condensing)
Operating Temprature
See Datasheet
Depth
4.5mm
Width
29.85mm
Height
50.8mm
Certificate
FCC, CE Certified, REACH and RoHS Compliance
Power Consumption
3.5W (Max)

Download

WLE Catalog

Download (787.91k)

WLE600VX-I Datasheet

Download (502.39k)

WLE600VX-I Hardware Guide

Download (262.6k)
