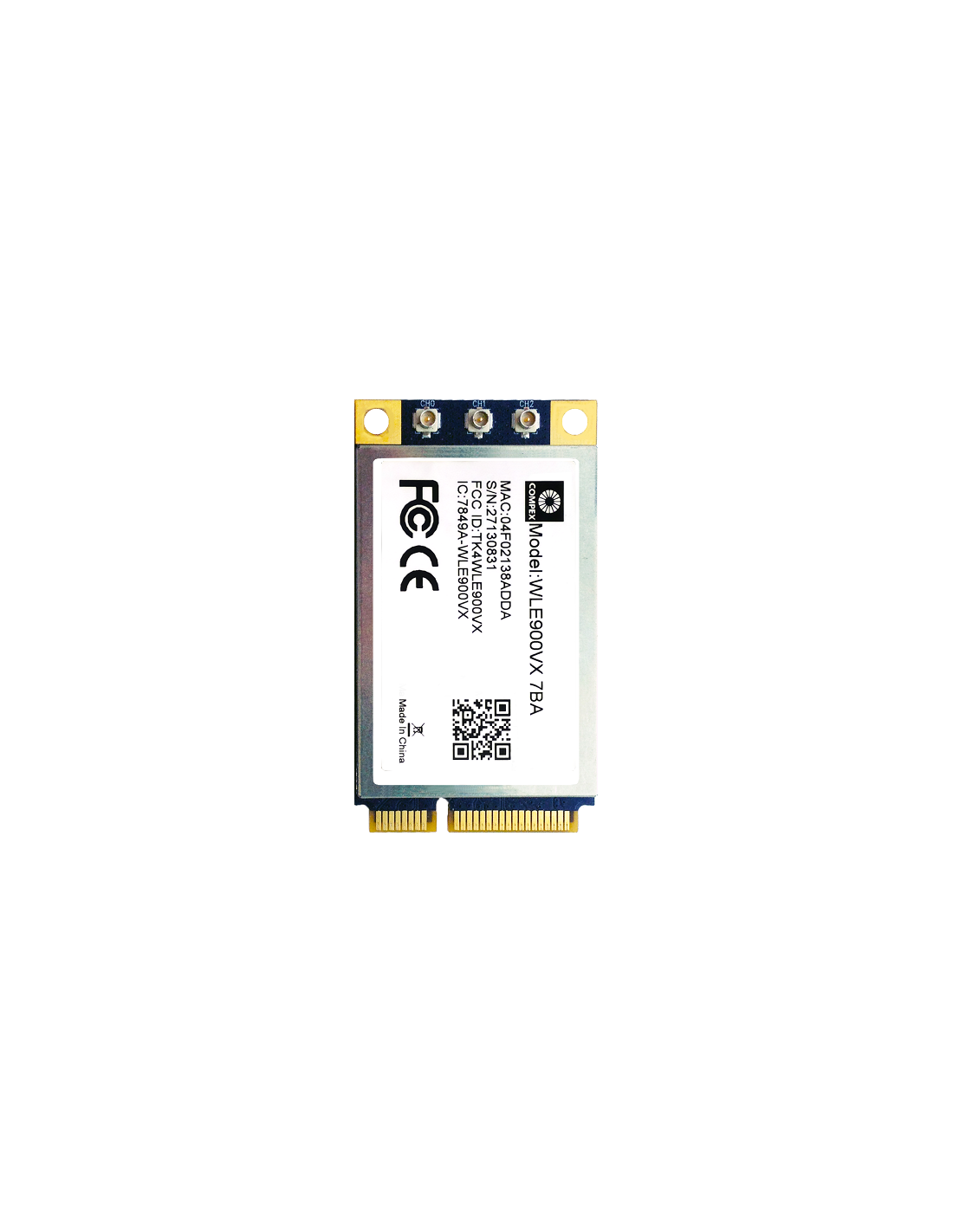

WLE900VX-I(85)

Data sheet

ESD Sensitivity
Class 1C
Reference Design
Qualcomm Atheros XB140
Operating Voltage
3.3V
Channel Spectrum Widths for WLAN
Supports 20/40MHz at 2.4GHz, Supports 20/40/80MHz at 5GHz
Host Interface
MiniPCIe interface with PCIe 1.1
Modulation
OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
Operating Humidity
Operating: 5% to 95%, Storage: Max. 90% (Non-Condensing)
Operating Temprature
See Datasheet
Depth
3.2mm
Width
29.85mm
Height
50.8mm
Certificate
FCC, CE Certified, REACH and RoHS Compliance
Power Consumption
5W (Max)
Chipset
Qualcomm Atheros QCA9890 ‘Peregrine’ Series

Download

WLE Catalog

Download (787.91k)

WLE900VX-I Datasheet

Download (527.17k)

WLE900VX-I Hardware Guide

Download (286.6k)
