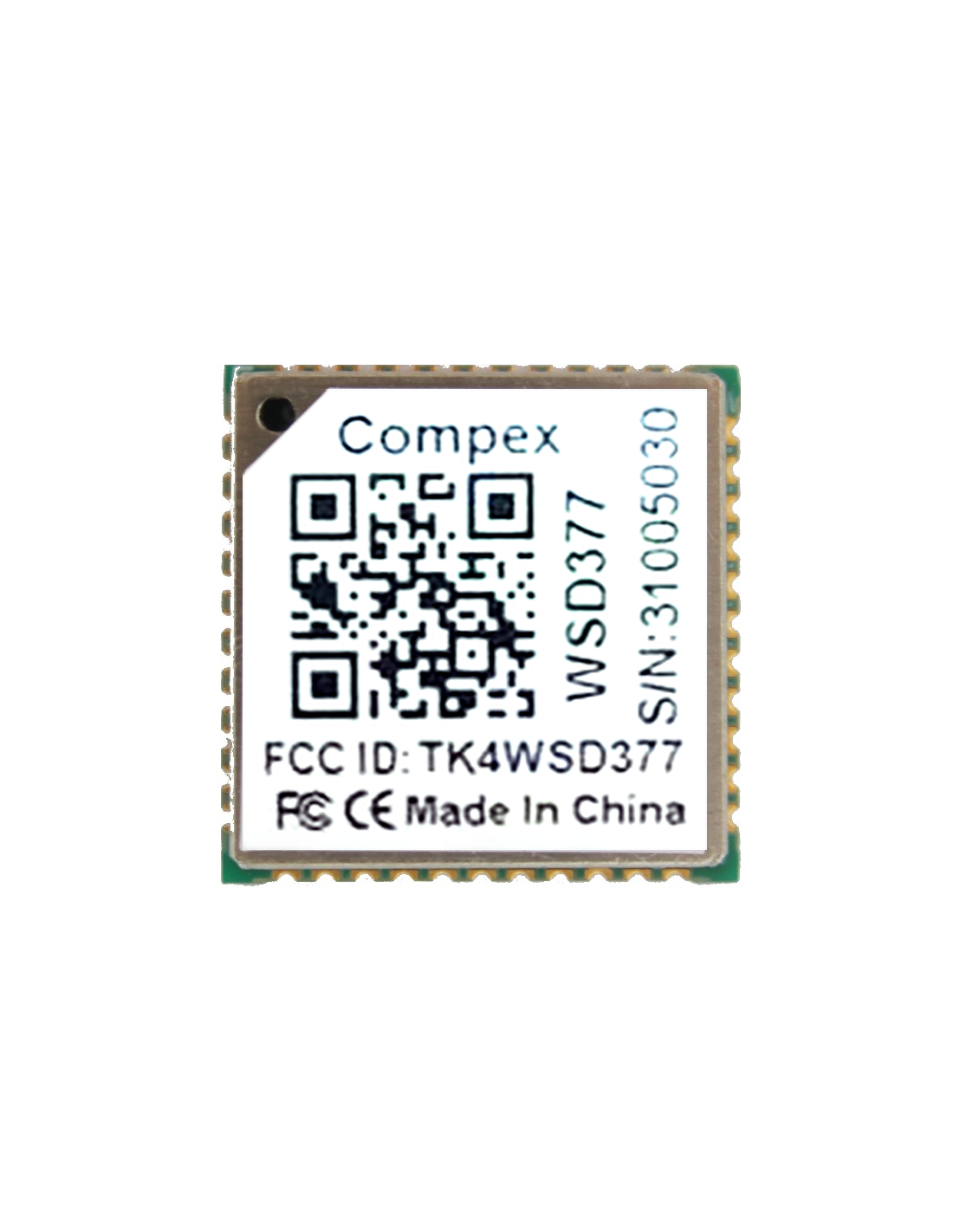

WSD377 Radio Card
WSD377 Radio Card

WSD377 Radio Card

Available to Order.
US$22.89

Qualcomm Atheros QCA9377
• Single-die wireless local area network (WLAN) and Bluetooth (BT) combination solution
• Supports 1x1 IEEE 802.11b/g/n at 2.4GHz
• Supports 1x1 IEEE 802.11a/n/ac at 5GHz
• Provides a highly integrated WLAN system-on-chip (SoC)for 5 GHz 802.11ac, or 2.4 GHz/5 GHz 802.11n WLAN applications
• Supports Bluetooth 5.0 + HS, BLE, and ANT+ with backward compatibility for BT 1.x, BT 2.x, BT4.2 + Enhanced Data Rate
• Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
• Supports multiuser MIMO
• Supports BT-WLAN coexistence and ISM-LTE coexistence
• Supports IEEE 802.11d, e, h, i, k, r, v, and w
• Supports Dynamic Frequency Selection (DFS)

Manufacturer Lead Time:: 60weeks

Ships from Canada.proud canadian

The minimum purchase order quantity for the product is 50.

Description

Qualcomm Atheros QCA9377
• Single-die wireless local area network (WLAN) and Bluetooth (BT) combination solution
• Supports 1x1 IEEE 802.11b/g/n at 2.4GHz
• Supports 1x1 IEEE 802.11a/n/ac at 5GHz
• Provides a highly integrated WLAN system-on-chip (SoC)for 5 GHz 802.11ac, or 2.4 GHz/5 GHz 802.11n WLAN applications
• Supports Bluetooth 5.0 + HS, BLE, and ANT+ with backward compatibility for BT 1.x, BT 2.x, BT4.2 + Enhanced Data Rate
• Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
• Supports multiuser MIMO
• Supports BT-WLAN coexistence and ISM-LTE coexistence
• Supports IEEE 802.11d, e, h, i, k, r, v, and w
• Supports Dynamic Frequency Selection (DFS)

Manufacturer Lead Time:: 60weeks

Product Details

Burst Frequency
Bluetooth: 2.402~2.480GHz
Host Interface
Bluetooth: UART/PCM
Power Consumption
3.83W (Max)
Chipset
Qualcomm Atheros QCA9377-3
Modulation
CCK, OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Certificate
CE RED, REACH and RoHS Compliance
WSD377
