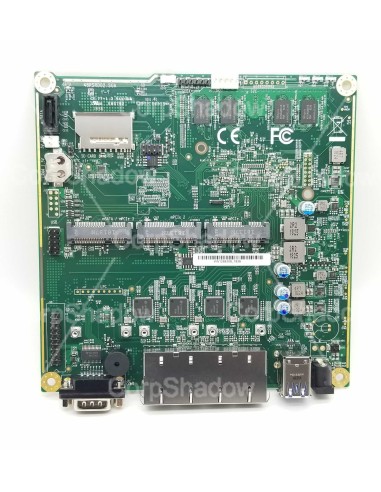

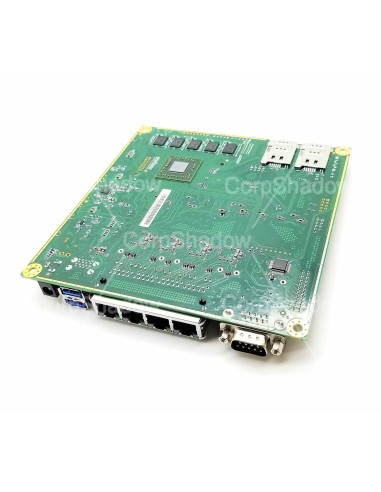

PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board
PC Engines APU4C4 System Board

APU4D4 System Board

Out of Stock
US$220.00

It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 4 Intel i211AT & 4GB  DDR3-1333 DRAM.

*Heat Spreader Kit for APU Board is included

APU4D4 Pre-Installed Systems

Quantity Unit price You Save
6 US$206.80 US$79.20
20 US$202.40 US$352.00
50 US$198.00 US$1,100.00
Ask a Quote

Description

BFN4KB System is replacement for APU4D4 Sytems

BFN4K Boingfire Systems.

The APU4D4 Platform is the alternate next generation of low cost APU series (APU1D) from PC Engines. It is a high performance mini-ITX embedded board with AMD GX Series (Quad-Core) CPU 1GHz with 64 bit and 2MB L2 cache featuring 4 Intel i211AT & DDR3-1333 DRAM.

The PC Engines APU System Board is a Single Board Computer (SBC) which can be used for a variety of applications like LAN Router, Firewalls, Load Balancer, VPN-Router, Thin Clients, compact Server, NAS etc.

Compact, power efficient and can be booted over the network, via USB-Device, SD-Card, mSATA-SSD-Module and SATA-Connection.

Following the cessation of operations by PCEngines, all orders for PCEngines products will be processed and shipped by PCEngines based on the sequence in which they are received. Upon receipt of any order for PCEngines products, CorpShadow will promptly forward the order to PCEngines and await delivery. It is imperative to note that once an order for any PCEngines system board or other products developed by PCEngines has been placed, CorpShadow will not entertain any requests for cancellation or refund under any circumstances.

Directly ship from Canada!

Instructions for Cooling assembly

Product Details

CPU
AMD Embedded G series GX-412TC, 1 GHz quad Jaguar core with 64 bit and AES-NI support, 32K data + 32K instruction cache per core
Cache Memory
2MB L2 cache
DRAM
4 GB DDR3-1333 DRAM
Storage Capacity
3 miniPCI express (J13 USB or mSATA, apu4*4: with SIM
J14 USB only, with SIM
J15: full miniPCI express, but no SIM, intended for wifi). GPIO header, optional I2C bus, COM2 (3.3V RXD / TXD)
Ethernet Ports
4 Gigabit Ethernet ports
Display Output
None
Power
6 To 12W Depending On CPU Load
Firmware
coreboot
Expansion
DB9 Serial Port, 2 USB 3.0 External + 2 USB 2.0 Internal, Three Front Panel LEDs, Pushbutton
Board Size
152.4 x 152.4 mm
I/O
1 X APU4D4 System Board, 1 X Enclosure, 1 X Power Adapter, 1 X Heat Spreader
Board Category
PCEngines ALIX & APU Boards
Return Warranty
Standard 30 Days
Manufacturer Warranty
1 Year Limited Warranty
APU4D4

Attachments

Reviews (0)

No reviews
