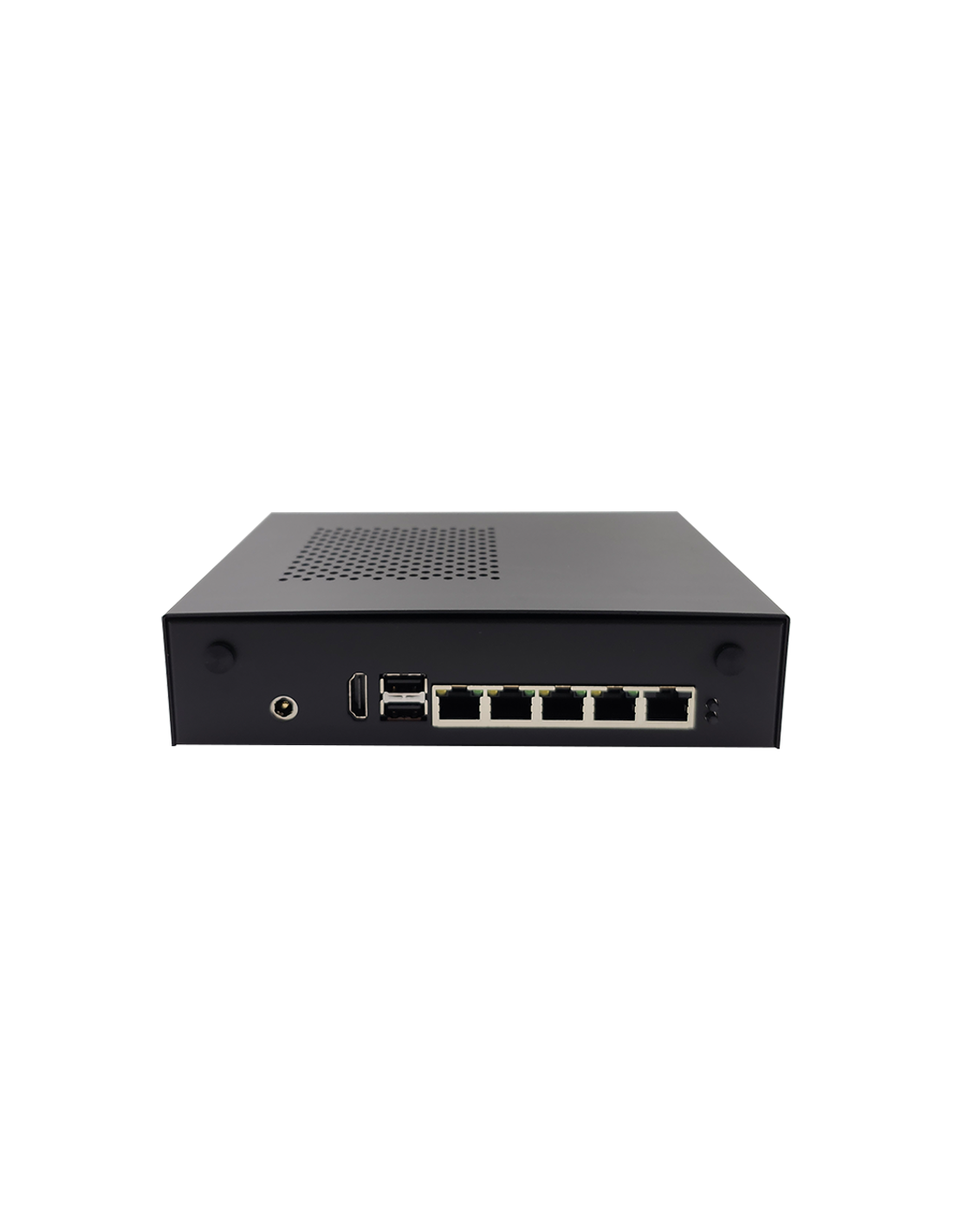

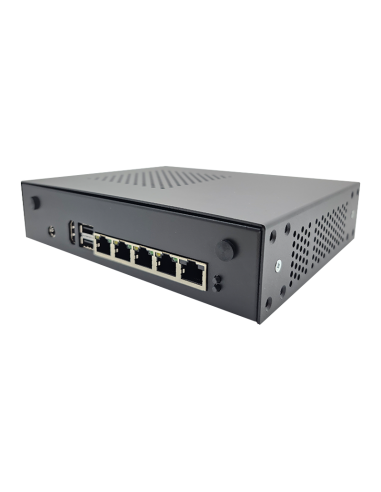

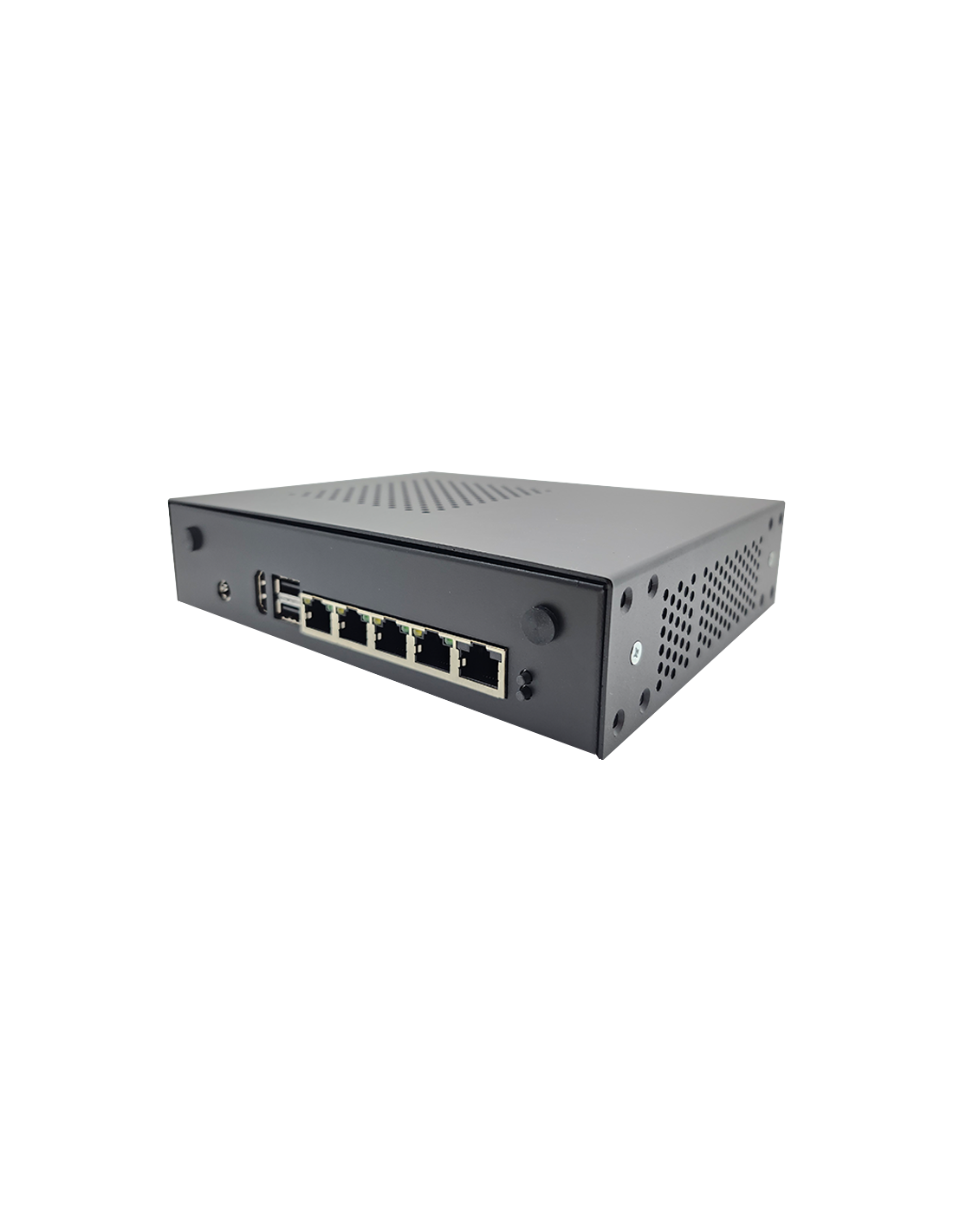

The Boingfire BFN4KB system, exemplifies a powerful and versatile multi-purpose embedded system. As a high-performance single board computer (SBC), it features the Intel Atom E3845 processor, ensuring robust performance and reliability. This single board PC is designed for industrial automation and IoT applications, providing multiple storage options like eMMC, mSATA, and SATAII. The system on chip (SoC) technology ensures efficient power usage with a fanless design, making it ideal for silent operations. With support for advanced connectivity options, including Gigabit Ethernet and LTE, the BFN4KB is a superior choice for both open-source and proprietary software solutions.
Key Features:
-
Processor and Performance:
- Intel Atom E3845: Equipped with a quad-core Intel Atom E3845 processor running at 1.9GHz, the BFN4KB delivers exceptional performance and efficiency.
- Memory: Supports up to 8GB DDR3L 1333MHz memory, ensuring ample space for all computing needs and smooth multitasking.
-
Connectivity:
- Ethernet: Features four Gigabit Ethernet ports powered by Intel i211AT controllers, offering reliable and high-speed network connectivity.
- Additional Connectivity: Supports LTE and WiFi cards, providing versatile and robust connectivity options.
-
Storage Options:
- Diverse Storage: Includes multiple storage solutions such as eMMC4.5, mSATA, and SATAII (3.0Gbps), allowing for flexible and extensive storage capabilities.
-
Display and Interface:
- HDMI Port: Supports high-resolution outputs (2560 x 1600 @ 60Hz), suitable for GUI-based applications.
- Serial Ports: Comes with an RJ45 external serial port and two TTL serial ports for additional connectivity options.
-
Power and Efficiency:
- Power Usage: Operates on a 12V power supply with low power consumption, making it a sustainable and cost-effective choice.
- Fanless Design: Ensures silent operation, enhancing the overall user experience.
-
Customization and Durability:
- Customization: Highly customizable to meet specific project requirements, ensuring maximum utility from the investment.
- Durability: Designed to operate in a wide range of humidity (10-95% RH) and temperature settings (0°C to 60°C), ensuring reliability in various environments.
Additional Features:
- Watchdog Timer: Programmable watchdog with adjustable timeouts for enhanced system reliability.
- Buttons: Conveniently placed reset and power buttons for easy access.
- GPIOs: Includes 24-bit GPIOs for additional control and customization.
Use Cases:
The BFN4KB system is ideal for a wide array of applications, including but not limited to:
- Network Security: Configuring firewalls and VPN servers for secure and reliable network management.
- Communication Systems: Setting up VoIP servers for efficient communication solutions.
- Custom Embedded Systems: Tailoring the hardware for specific open-source or proprietary software projects.
