RS-485 Add on Board for C5

Name: RS-485 Add on Board for C5
Brand: HardKernel
SKU: ODC5RS485
Price: 11 USD
Availability: InStock

In Stock

US$11.00

This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.

Ask a Quote

Description

This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.

Texas Instruments THVD1406
Half-duplex RS-485
Auto-direction control using the data input pin (No control pin required)
Maximum Data rates: 500 kbps
Built-in termination resistor (Use by shorting the j1 connector)

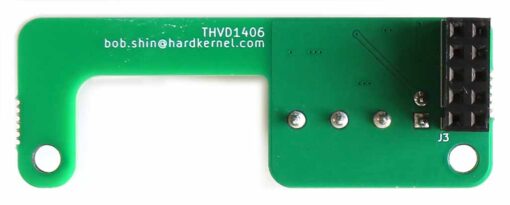

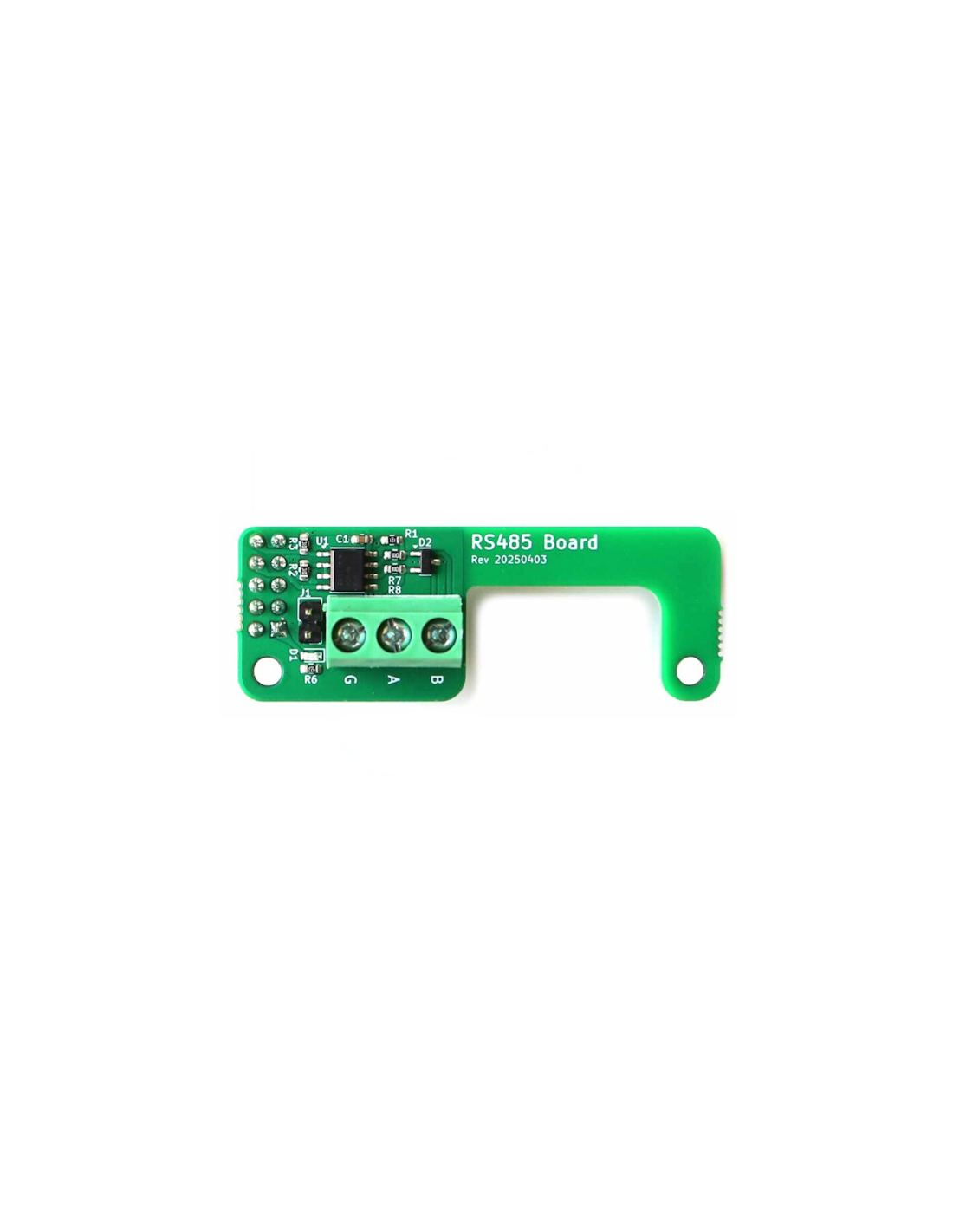

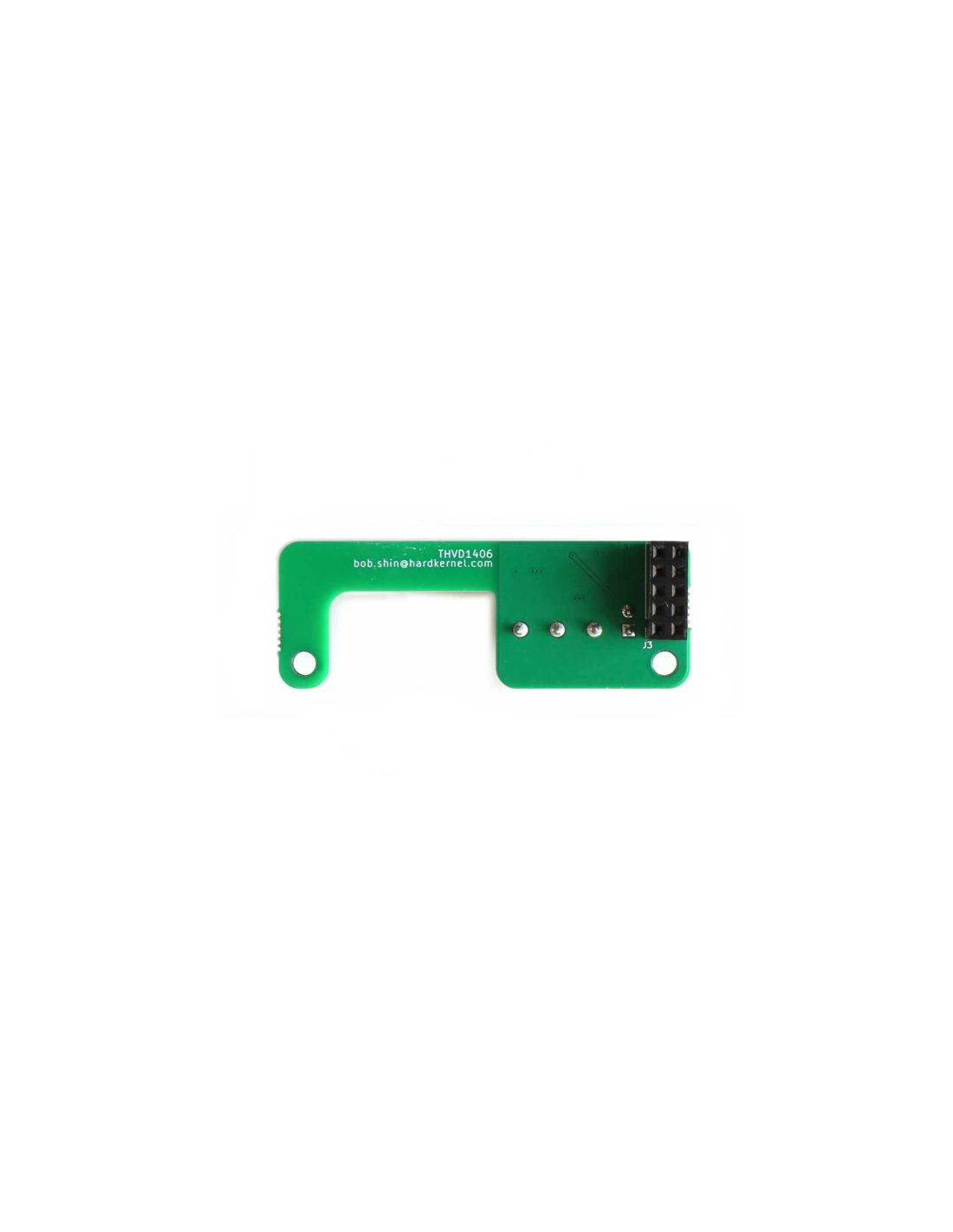

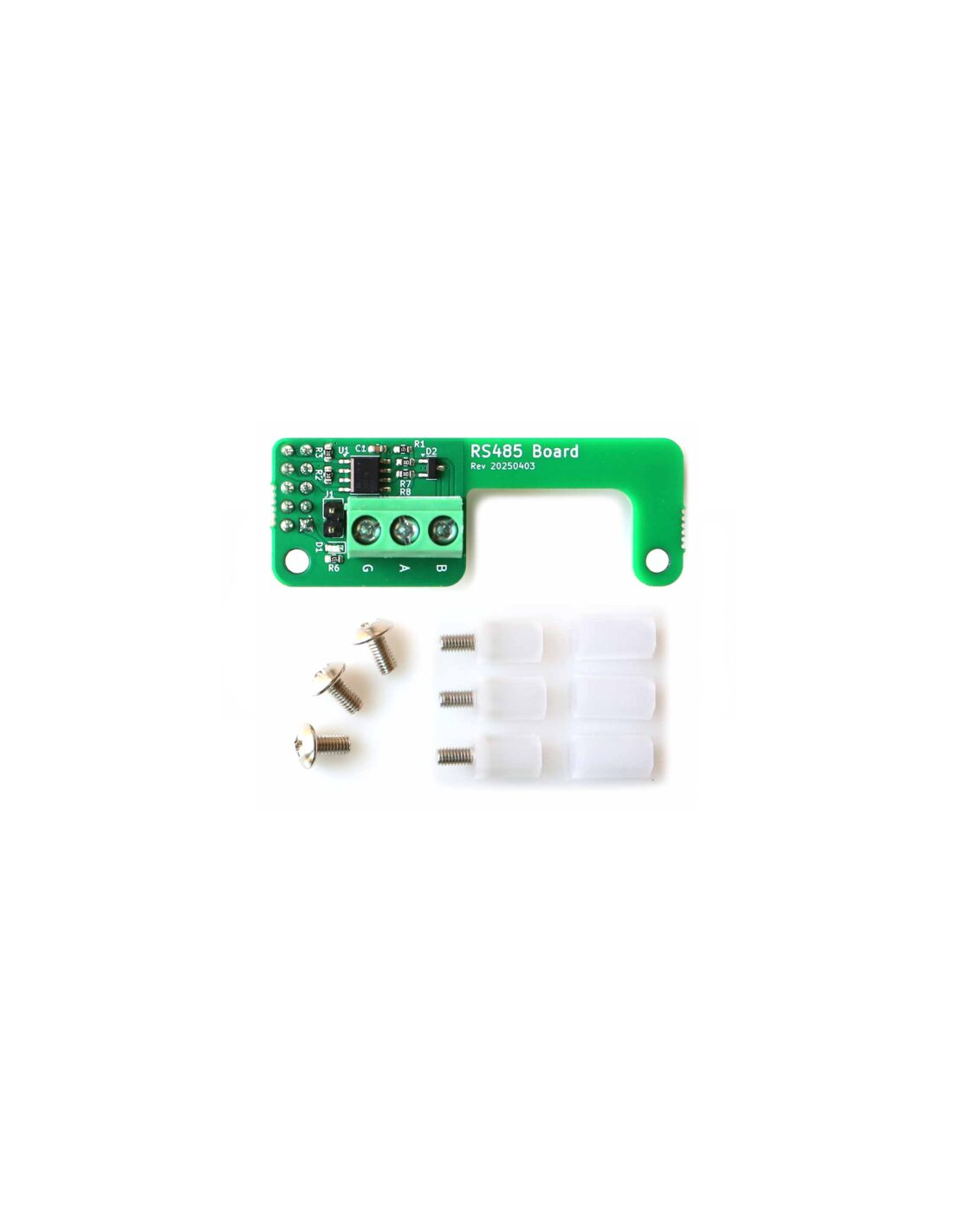

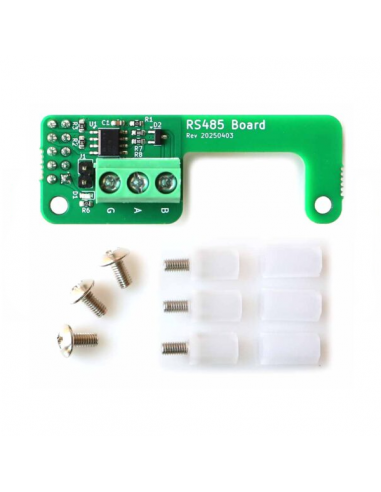

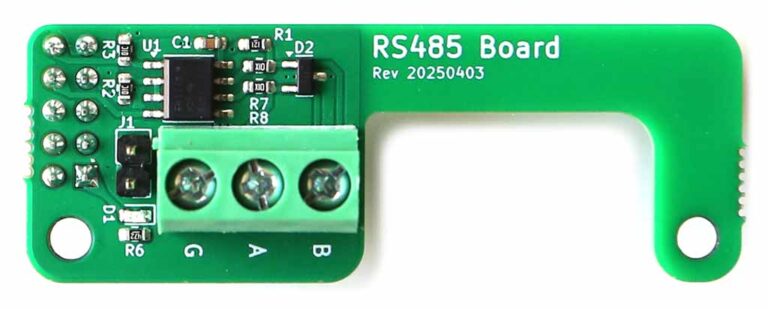

RS485 Board

RS485 board 2

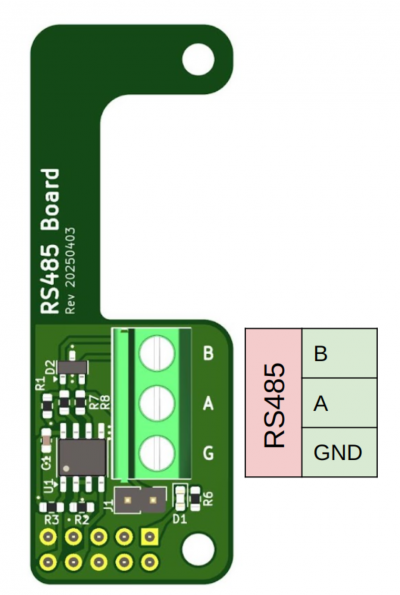

RS485 Board

Form Factor	Board dimension : 56 (L) x 20 (W) x 21 (H) mm
I/O	1x RS-485 bus

Product Details

Reference ODC5RS485
