Boingfire BFN6KB System

Name: Boingfire BFN6KB System
Brand: Boingfire
SKU: BFN6KB
Price: 255 USD
Availability: InStock

In Stock

US$255.00

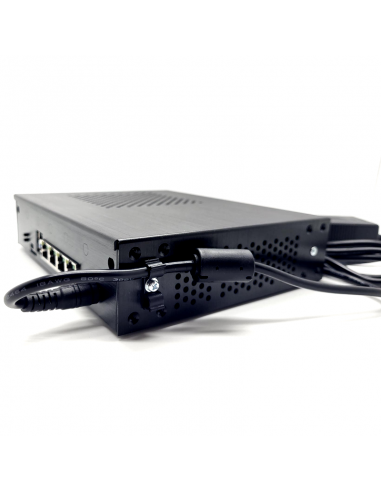

The BFN6KB System is a compact, high-performance embedded platform featuring the Intel Atom E3845 quad-core processor, which operates at 1.91 GHz and includes advanced AES-NI encryption. It supports up to 8 GB of DDR3L memory and provides a variety of storage options including mSATA and eMMC. This board offers a range of connectivity options with its Giga SFP, multiple RJ45 ports, and dual Mini PCIe slots for enhanced network flexibility (2 x LTE/4G, 1 x WiFi). Designed for robustness, it includes a programmable Watchdog Timer and operates reliably across a wide temperature range. The BFN6KB is an ideal choice for applications requiring a durable, high-security, and versatile embedded solution.

Memory Size:

Storage Size:

Power Supply

Quantity	Unit price	You Save
5	US$248.63	US$31.88
15	US$246.08	US$133.88
50	US$242.25	US$637.50
100	US$237.15	US$1,785.00

Ask a Quote

Description

Running on an Intel Atom E3845 a versatile and powerful solution tailored for a wide range of applications, from cutting-edge open-source projects to customized proprietary operating systems. Designed with flexibility at its core, the BFN6KB combines the robust BFN6 System Board and the sleek, durable BFCASE6B enclosure, powered by a reliable 65W power supply to ensure smooth and efficient operation.

This system is not just about power and adaptability, it's built with security in mind. The TPM 2.0 hardware offers a secure foundation for implementing systems where data protection and integrity are paramount. Whether you're developing a secure financial platform, a sensitive data analysis tool, or a robust control system, the BFN6KB provides Secure data protection for your critical applications.

With support for up to 8GB of RAM and multiple storage options, including mSATA, eMMC, and SATAII, the BFN6KB system offers the performance to handle demanding tasks and the flexibility to store vast amounts of data. Whether you're running complex databases, high-performance computing tasks, or multimedia applications, this system has the capacity to meet and exceed your requirements. BFN6KB support two LTE/4G connectivity for redundancy, also SFP Port it to allow system connect directly to the fiber.

The BFN6KB System is perfect for developers, IT professionals, and businesses looking for a Customizable firewall. Its compatibility with both open-source and proprietary operating systems allows you to tailor the firewall configurations to your specific needs, ensuring optimal performance and security for your unique applications.

Explore the possibilities with the BFN6KB System—where power, flexibility, and security meet to empower your projects and solutions. Available now for those who demand expert sales experience and a product that stands out in the digital landscape. Unlock the potential of your applications with the BFN6KB System, your gateway to innovation and reliability in one package.

One of the highlights of the BFN6K is its customization capabilities. You can tailor the system to your specific needs, ensuring you get the most out of your investment.

Embrace the future of computing with the BFN6K multi-purpose system, where power, flexibility, and affordability converge.

Visit Boingfire's Forum:

https://forum.boingfire.com

Product Details

CPU: Intel Atom E3845 2M Cache (AES-NI)
Base Frequency: 1.9GHz
Processor Cores: 4 (Quad Core)
AES-NI: Yes
RAM: DDR3L 1333MHz SODIMM, 8GB (Max)
Max. RAM Support: 8 GB
SATA: 1 x SATAII with 3.0Gbps (Internal Connector)
Display Resolution: 2560 x 1600 @ 60Hz
Ethernet Ports: 3 x RJ45 GbE
SFP Connector: 1 x Intel i210AS
Serial ports: 1 x RJ45 External, 2 x TTL
Display Output: 1 x Micro-HDMI
GPIO: 20-bit GPIOs
Power: 12V ±10% only
Power Adapter: 12v 5A with US Plug
Input Power: 12v
Watchdog: Programable 1~255 Sec, 1~255 Mins. Disable
Reset Button: 1 x Front Pinhole, 1 x Rear Button
MiniPCI-e slots: 1 x 4G/LTE, WiFi
1 x WiFi
1 x mSATA
Cooling Fan: Fanless
Storage Humidity: 5 – 90% RH
Operating Humidity: 10 – 90% RH
Operating Temprature: 0°C to 60°C
Storage Temprature: -40°C to + 85 °C
Dimension: 6 x 7.5 x 1.5 IN (LxWxH)
Weight: 2.4 Lbs (Approx.)

Reference BFN6KBUS

mpn BFN6KBUS

Attachments

Datasheet

Boingfire BFN6KB System

Download (2.81MB)

Reviews (1)

1 Reviews

Smooth installation

Great product and great support.

By David on 10/03/2024
