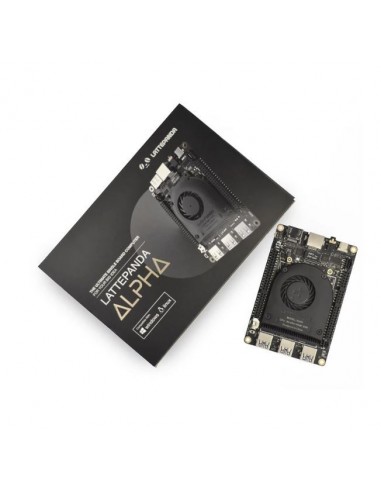

LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)
LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)
LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)
LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)
LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)
LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)

LattePanda 2 Alpha 864s (Win10 Pro activated,8GB/64GB)

Ships in 5~10 Days
US$543.00

Features

  • Solid Spec and Extreme Design
  • Dual OS Support – Windows / Linux Both
  • Ultimate Networking on Cloud and Things
  • Up to 42 Extendable Interfaces bring Rich Playabilities
  • Ultra-Thin Design, Minimizing Space Occupation
  • Rebuild How to Code Efficiently with Multiple OS

Description

The Alpha Edition uses the same Intel 7th generation Core m3 processor as the latest MacBook. The Core m3 processor is the perfect choice for superior performance and low power consumption.
We have shrunken this computing monster from a laptop to the size of a phone.

Product Details

CPU
Intel 8th m3-8100y
Co-processor
Arduino Leonardo
Processor Cores
1.1-3.4GHz Dual-Core，Four-Thread
RAM
8G LPDDR3
Storage Capacity
64GB eMMC V5.0l
Storage Controller
1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD :: 1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
USB Compatibility
3x USB 3.0 Type A :: 1x USB Type C, supports PD, DP, USB 3.0
Graphics Processing Unit
Intel HD Graphics 615, 300-900MHz
Ethernet Ports
1 x Gigabyte Ethernet
Display Output
HDMI Output :: Type-C DP Support :: Extendable eDP touch displays
GPIO
2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC
Button
Power Button
Benchmark
Up to 4128, double computing power compared with same price range products in the market
Wireless Standard
WIFI 802.11 AC, 2.4G & 5G
Bluetooth
Dual Band Bluetooth 4.2
OS Support
Windows 10 Pro, Linux Ubuntu

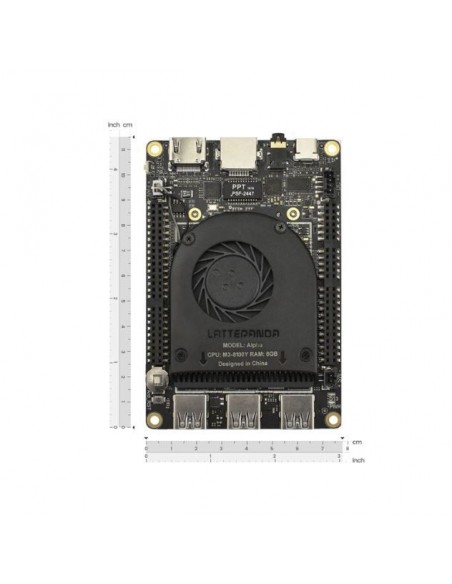

Dimension
115mm x 78mm x 14 mm
Board Category
LattePanda Boards
DFR0547
